For teams comparing Maxon, FAULHABER, or Portescap-class catalog platforms, review a manufacturable OEM alternative when the program needs custom interfaces, prototype support, cost control, or second-source qualification before design lock.
Micro Planetary Motor is not affiliated with Maxon, FAULHABER, or Portescap. Brand names are used only to describe buyer-side sourcing comparison context.
Catalog fit is close, not final
Premium catalog motors can define the performance class, but the buyer mechanism may need a nonstandard shaft, flange, cable exit, encoder, gear ratio, grease, or validation condition.
Procurement needs options
When cost, regional sourcing, sample timing, or lifecycle supply becomes a risk, engineering needs a controlled alternative path instead of a last-minute part-number search.
Validation must stay honest
A useful alternative is not a clone claim. It is a reviewed platform that can be tested against torque, speed, noise, backlash, thermal rise, life, and installation constraints.
Fit Matrix
| Sourcing Context | Good Fit | Not a Shortcut For | What to Send |
|---|---|---|---|
| Custom mechanical interface | Buyer can share a shaft, flange, pilot diameter, mounting, or cable-routing drawing that needs adaptation. | Exact branded drop-in replacement with no drawing review or mechanism validation window. | 2D drawing, STEP envelope, mating part dimensions, radial or axial load direction. |
| Prototype and pilot run | Team needs samples to evaluate China OEM manufacturing before annual-volume release. | Emergency substitution into a locked regulated design without requalification. | Prototype quantity, annual forecast, acceptance tests, target timeline, destination. |
| Performance cost-down | Existing premium platform proves the performance class, but BOM cost or MOQ needs a custom OEM option. | Request to copy a protected part number, trademarked assembly, or proprietary drawing. | Target output speed, torque, duty cycle, noise, backlash, life, and cost range. |
| Feedback and control review | Encoder, Hall, cable, connector, or controller requirements can be tuned around the buyer system. | Assuming encoder feedback removes mechanical backlash or interface compliance. | Encoder pulses, voltage, connector, controller limits, reversal load, positioning target. |
Second-Source Decision Matrix
Premium-brand comparison works best when procurement pressure, engineering constraints, and quality evidence are translated into a clear supplier-qualification question.
| Trigger | Buyer Signal | Review Question | Decision Evidence |
|---|---|---|---|
| Cost, MOQ, or lifecycle pressure | The premium platform validates the performance class, but unit cost, MOQ, accessory pricing, or lifecycle risk blocks the production business case. | Can an OEM platform meet the buyer-side torque, speed, envelope, noise, and life window without copying the reference design? | Target cost range, annual forecast, prototype quantity, accepted geometry changes, and validation budget. |
| Lead time and sample timing | Engineering needs samples before design lock, or procurement needs a backup source before a delayed catalog supply chain becomes critical. | Can the alternative be sampled, measured, and revised before the project gate where the motor interface freezes? | Required sample date, pilot-run date, drawing freeze date, destination, and approval owner. |
| Custom interface mismatch | A catalog motor is close, but the product needs a different D-cut shaft, thread, keyway, pilot, flange, cable exit, connector, or encoder package. | Which interface details must stay fixed, and which details can change to make the OEM option manufacturable? | 2D drawing, STEP envelope, mating part dimensions, shaft load direction, harness path, and revision status. |
| Regional sourcing or dual-source policy | The project requires China supply support, lower dependency on one approved brand, or a second source for mid-volume production. | What quality evidence is needed before the alternative can enter the approved vendor or approved part list? | Supplier approval checklist, OQC scope, material and compliance requests, pilot quantity, and PPAP-style evidence needs. |
Solution Overview
Micro DC, BLDC, coreless, encoder, low-noise, low-backlash, and gearbox-only options can be reviewed by envelope.
Shaft, flange, cable, connector, encoder, grease, ratio, and packaging details can be aligned to the buyer assembly.
Torque-speed, current, noise, backlash, dimensional, and buyer-fixture checks can be scoped before pilot production.
The page is for engineering sourcing reviews, not unauthorized cloning or trademarked part-number substitution.
How It Works
Share the premium motor or gearhead class you are comparing against, plus the reason an alternative path is being reviewed.
Convert catalog expectations into envelope, torque, speed, ratio, duty, noise, backlash, feedback, and life requirements.
Select a motor, gearbox, gear material, shaft, flange, encoder, harness, and inspection scope that can be built repeatedly.
Run samples against the buyer fixture and acceptance plan before purchasing treats the alternative as approved.
Comparison Logic
A high-end catalog brand can still be the right answer. The alternative route becomes useful when the buyer needs a custom manufacturable option and has time to qualify it properly.
| Decision Area | Premium Catalog Route | OEM Alternative Route |
|---|---|---|
| Selection basis | Start from a published catalog platform and narrow by diameter, motor type, gearhead, encoder, and accessory options. | Start from the buyer envelope, load profile, annual-volume case, and validation risk, then configure a manufacturable platform. |
| Mechanical fit | Standard shaft and mounting options are efficient when the mechanism can adapt to them. | Custom shaft, flange, cable exit, gearbox length, or housing interfaces can be reviewed before prototype release. |
| Validation | Datasheets help initial sizing but may not reproduce the buyer fixture, enclosure, duty cycle, or noise condition. | Sample testing can be scoped around torque-speed, current, noise, backlash, temperature, and incoming inspection limits. |
| Procurement | Strong choice when catalog availability, brand approval, and existing qualification already solve the project risk. | Useful when second-source qualification, cost control, custom packaging, or China supply support is part of the sourcing plan. |
Evidence Pack
A second-source review should produce evidence that engineering, quality, and procurement can all inspect. The goal is a qualified configuration, not a casual part swap.
| Evidence Area | Buyer Question | Review Items | Expected Output |
|---|---|---|---|
| Geometry and CAD pack | Will it fit before the mechanism, PCB, cable path, or enclosure is frozen? | Output shaft, pilot, flange, gearbox length, screw pattern, cable exit, connector, mating datum, radial and axial load direction. | 2D outline, STEP envelope, drawing revision, and approved-sample geometry notes. |
| Performance and thermal pack | Does the alternative meet the actual duty point, not only the catalog headline? | Voltage, no-load speed, loaded speed, continuous torque, peak torque, current, duty cycle, ambient temperature, and enclosure airflow. | Torque-speed-current test scope, thermal-rise target, and pass/fail limits for sample review. |
| Gearbox precision pack | Will backlash, noise, wear, and reversal behavior stay acceptable in the buyer fixture? | Backlash target, acoustic limit, gear material, grease, load reversals, shock load, start-stop frequency, and expected life. | Backlash/noise inspection plan, material route, lubrication notes, and life-test proposal. |
| Supplier approval pack | What does quality need before procurement treats this as a qualified second source? | Incoming inspection, critical dimensions, OQC data, compliance declarations, lot traceability, pilot-run yield, and change-control needs. | Inspection checklist, certificate/compliance request list, pilot-run report scope, and PPAP-style pack when required. |

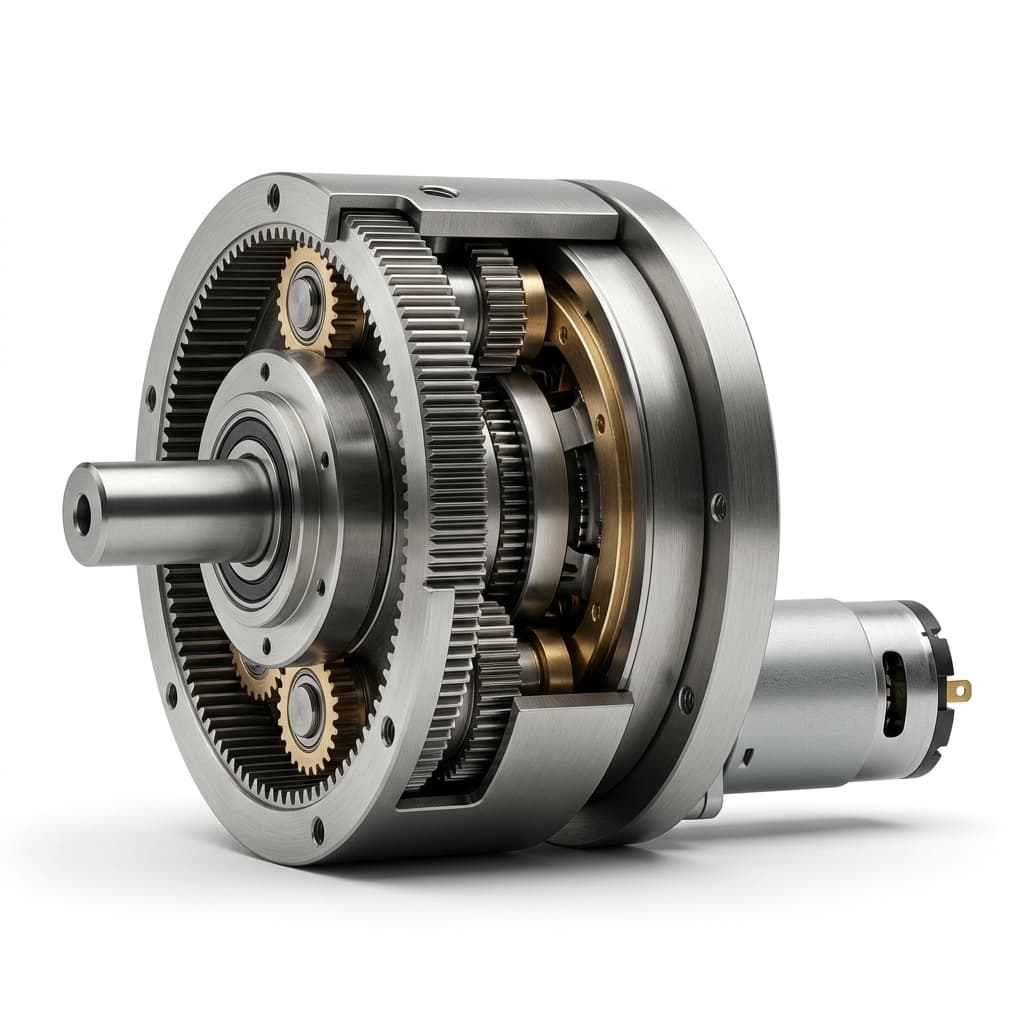

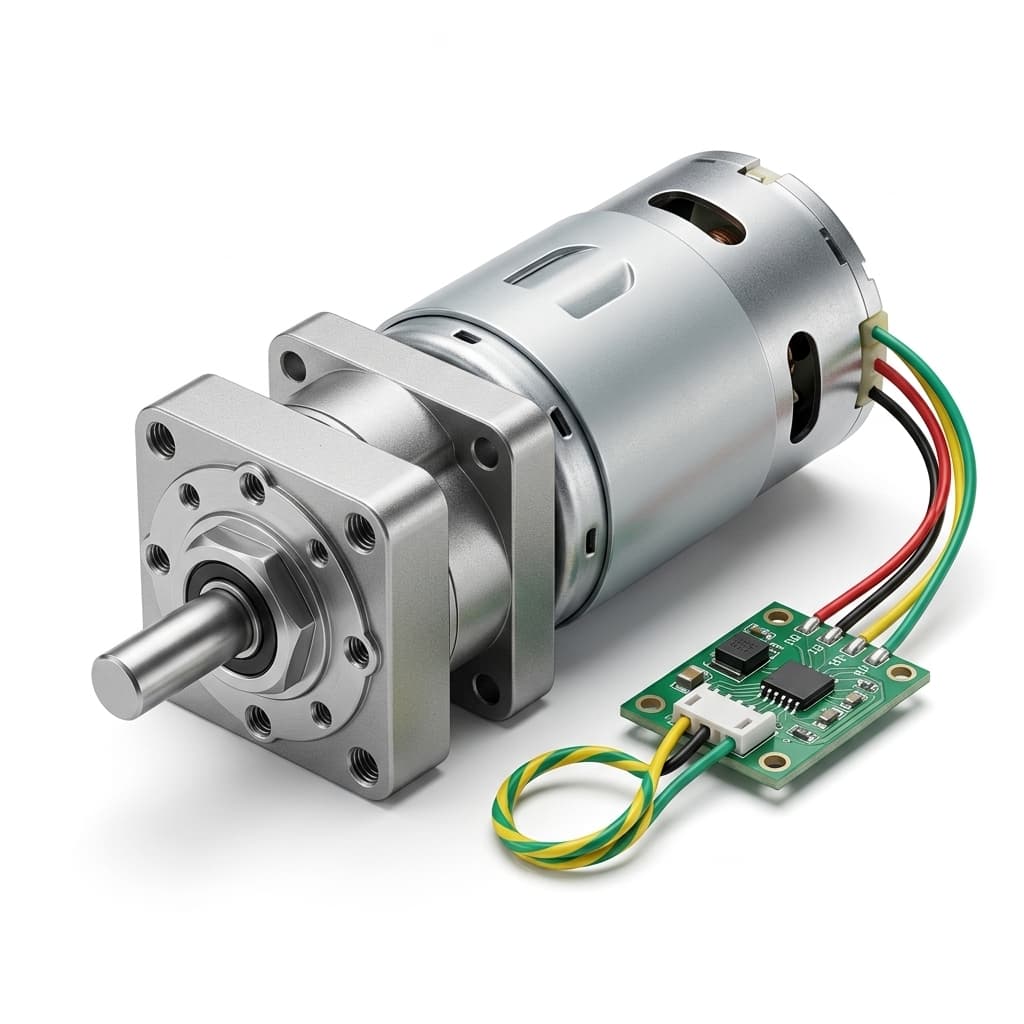

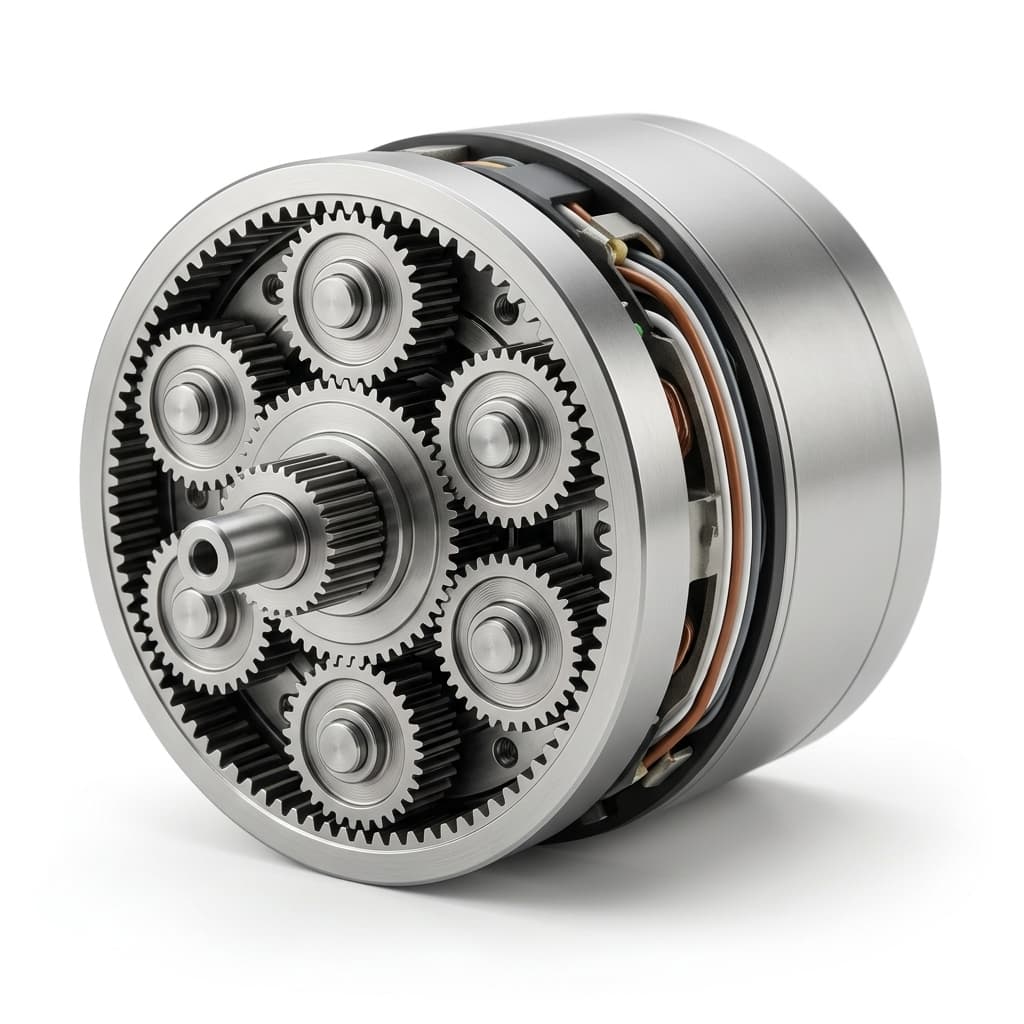

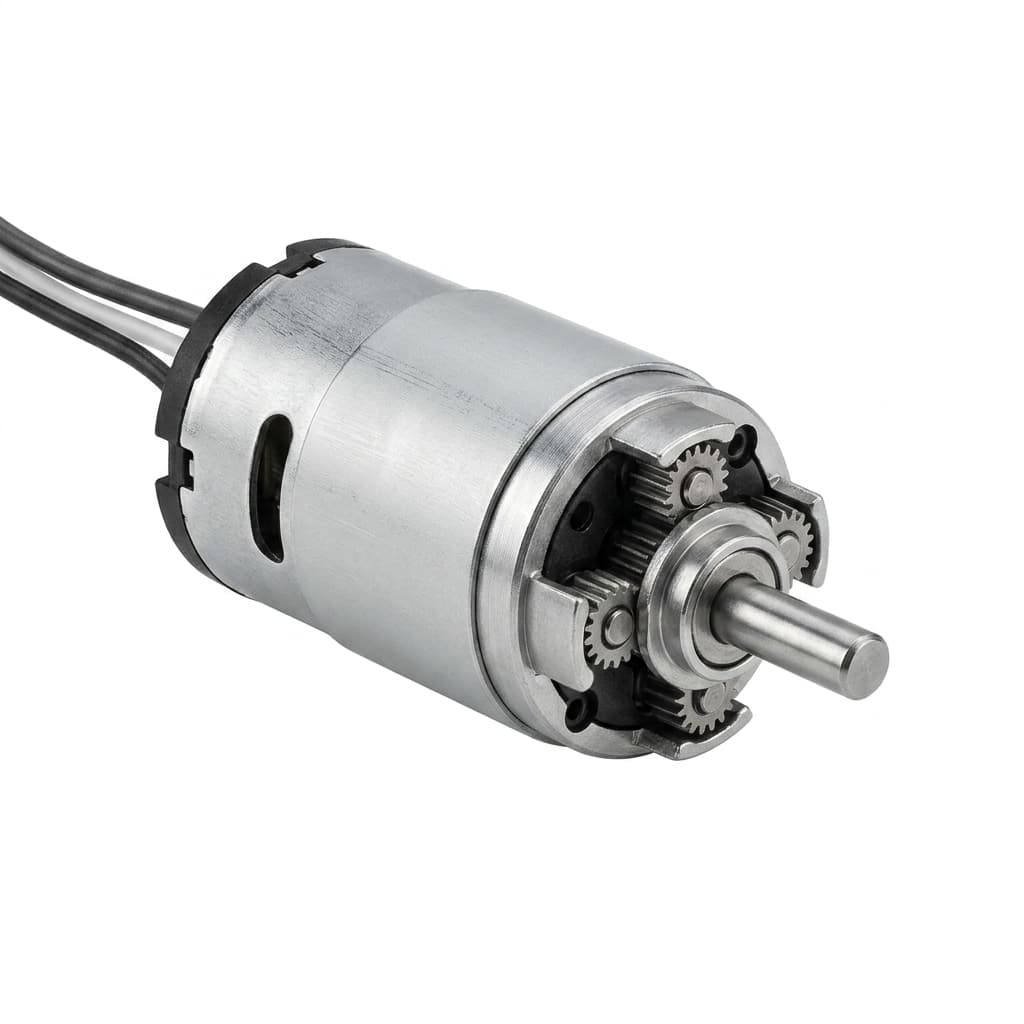

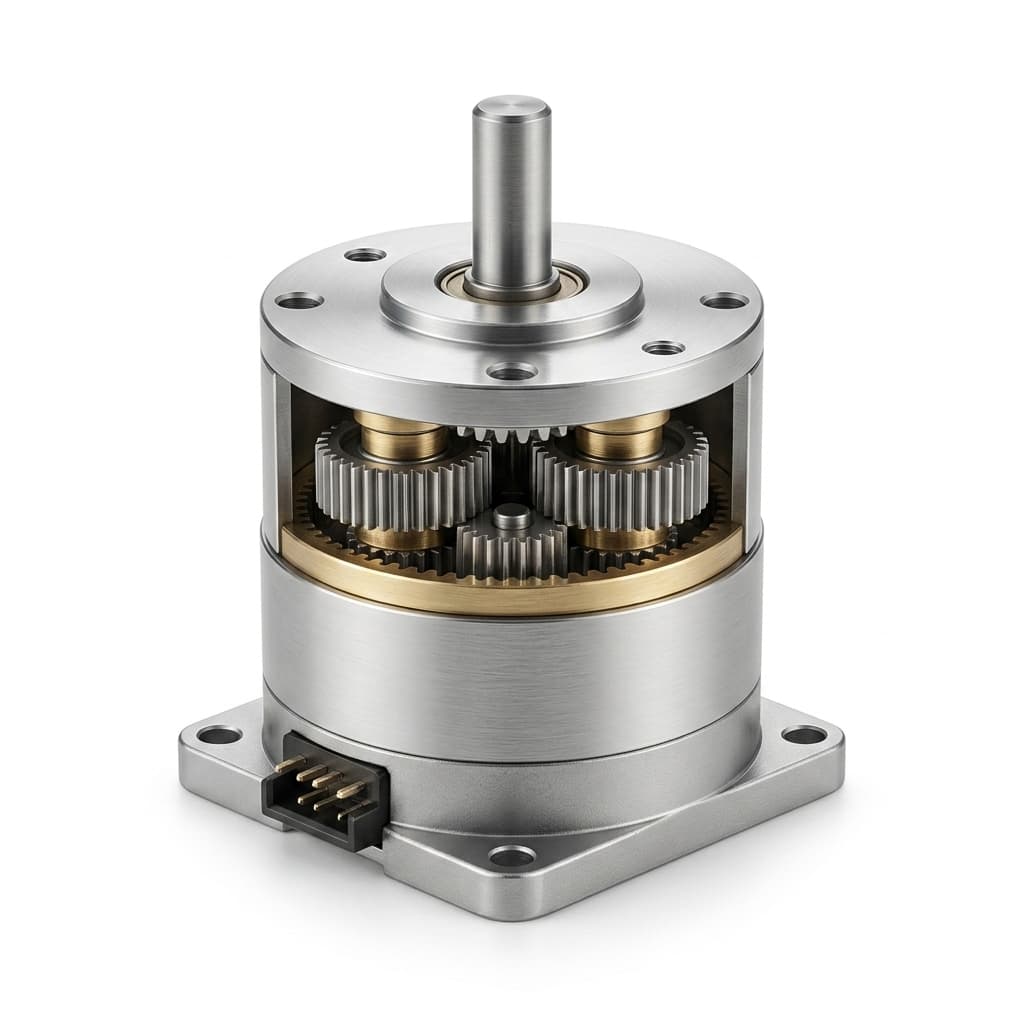

Product Visuals
Photos help align the initial platform discussion. Final approval still depends on drawings, samples, buyer fixtures, and measured acceptance criteria.
RFQ Checklist
Qualification Guardrails
Do not release a substitute until the buyer mechanism has passed fit, function, noise, thermal, and life checks.
Keep drawing revision, BOM options, acceptance tests, and pilot-run inspection limits tied to the approved sample.
Use the premium platform as context, but make final decisions from measurable buyer-side requirements.
Do-Not-Replace Boundaries
A strong alternative page should also reject poor-fit programs. These boundaries protect the buyer from under-scoped supplier changes and protect the OEM review from unrealistic claims.
| Boundary | Risk | Practical Move |
|---|---|---|
| Locked, certified, or safety-critical assembly | The current premium platform may already be tied to regulatory files, field approvals, safety analysis, or customer qualification. | Keep the approved part until engineering, quality, and the end customer approve a formal requalification plan. |
| Exact drop-in or protected-copy request | A branded part number, catalog drawing, or competitor sample is not enough to define a legal and repeatable buyer-owned configuration. | Use the reference only as performance context, then issue measurable buyer requirements and owned drawings. |
| No measurable acceptance limits | Without torque, speed, current, noise, backlash, thermal, life, and fit limits, supplier comparison becomes opinion instead of validation. | Freeze the test plan before sampling, or use CAD and calculator pages to define the missing limits first. |
| Catalog availability already solves the risk | For very low volume, fully standard interfaces, or brand-mandated programs, switching supplier may add more cost than it removes. | Stay with the premium catalog route and revisit OEM alternatives only when volume, interface, or supply risk changes. |
No. This is an OEM alternative sourcing and validation path. We do not claim affiliation, authorized replacement status, or exact drop-in interchangeability. Buyer drawings, application limits, and sample tests decide fit.
A part number can be used as buyer-side context, but the review should be based on measurable requirements: size, speed, torque, gear ratio, shaft, flange, encoder, noise, backlash, duty cycle, life, and validation limits.
Use the premium platform as context for performance class, envelope, or buying pressure, then define a buyer-owned requirement set. The alternative proposal should be based on measurable limits, manufacturable interfaces, and validation evidence.
It is the wrong path when the assembly is locked, certified, or safety-critical and cannot be requalified, or when the request is to copy a protected design instead of engineering a qualified alternative.
Typical evidence includes drawings, STEP envelope review, torque-speed-current checks, noise and backlash limits, thermal-rise targets, material and grease notes, OQC dimensions, compliance declarations, and pilot-run inspection scope.
Yes, low-backlash and encoder options can be reviewed. Mechanical backlash, encoder resolution, reversal load, controller behavior, and the final mounting stack must be evaluated together.
Send the target envelope, reference motor class, torque-speed requirements, gear ratio, shaft and flange drawing, feedback requirement, acceptance tests, prototype quantity, annual volume, and timeline.
