Product code
- Current Page Value
- MPM-CUSTOM-OEM-MICRO-DRIVE-ASSEMBLIES
- Buyer Use
- Page-level product family identifier used to keep RFQ, drawing, sample, and quote communication aligned.

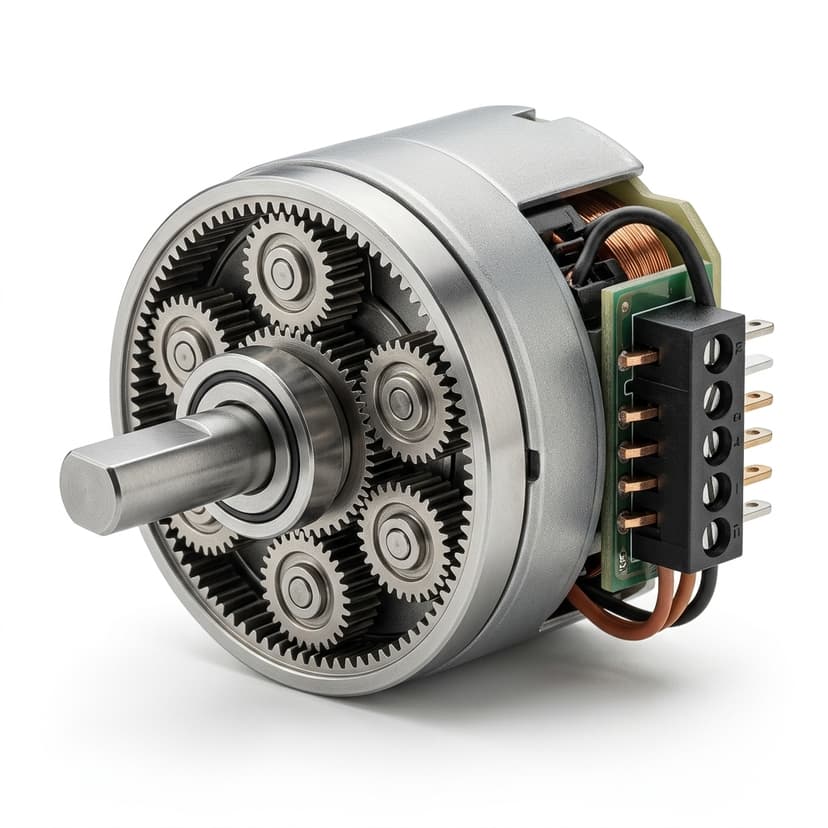

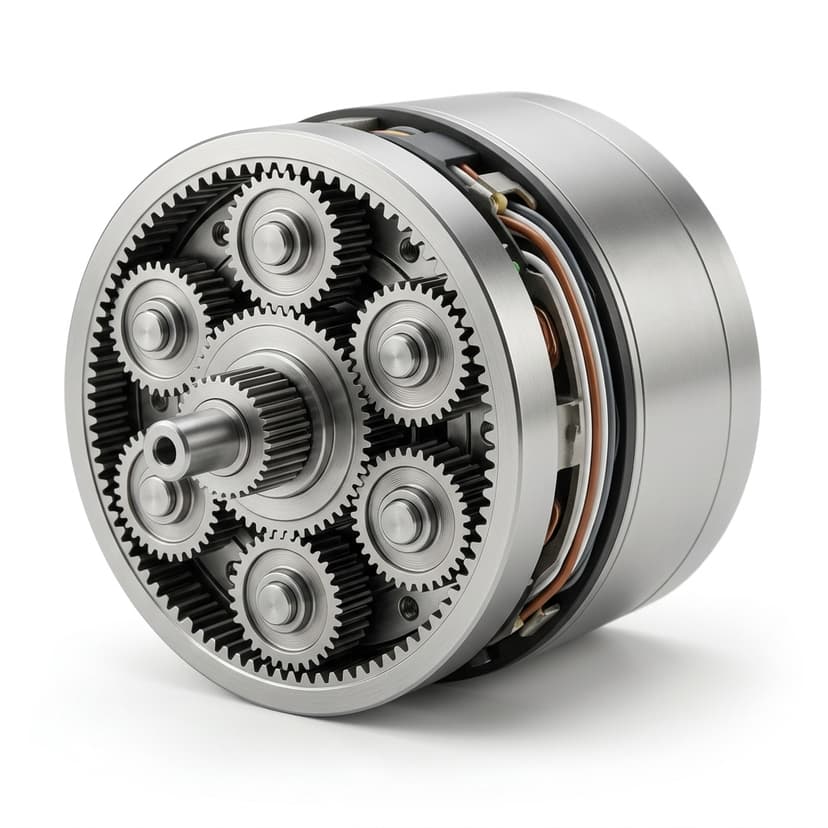

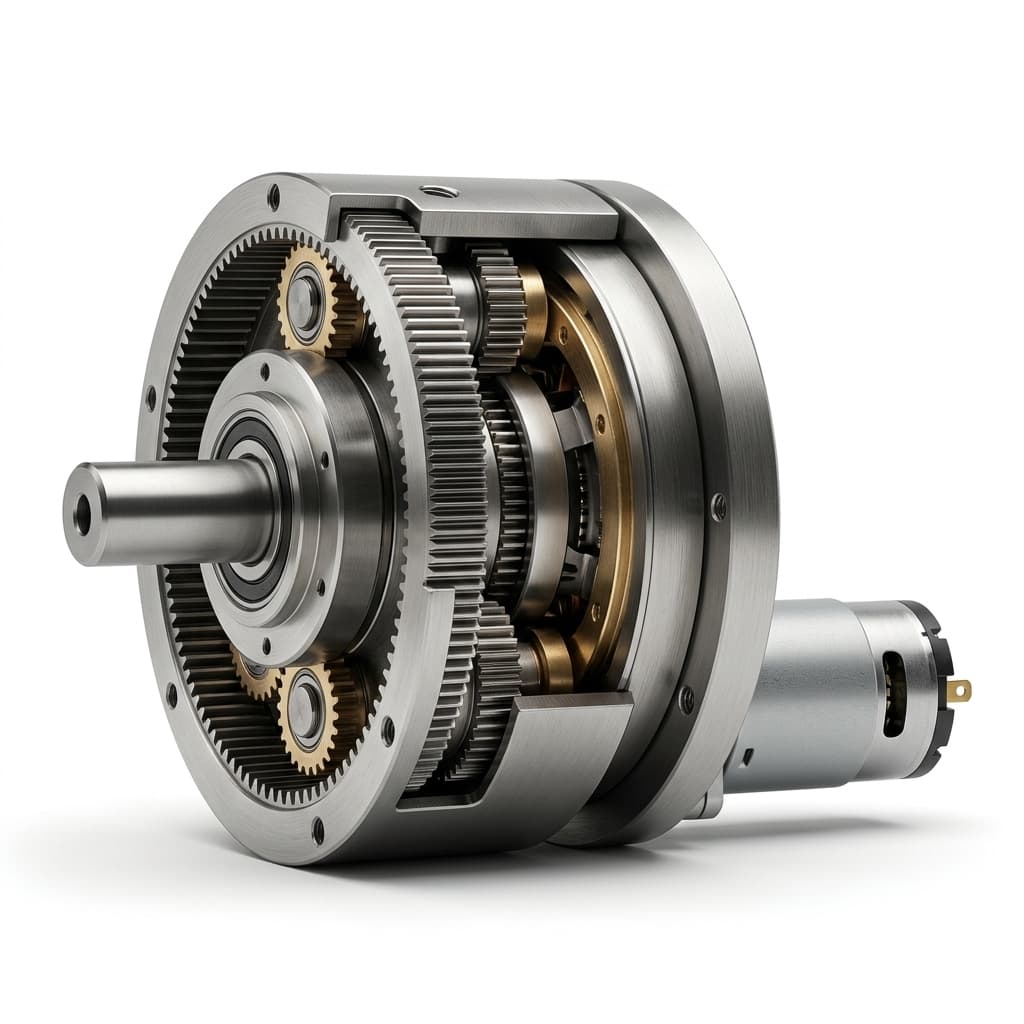

Fully integrated custom micro drive modules combining the motor, planetary gearbox, shaft, flange, encoder, wiring harness, connector, labels, and project-specific inspection gates under one production record.
OEM pricing, sample terms, freight, and lead time are confirmed by RFQ after drawings, quantity, destination, and validation scope are reviewed.
Commercial Availability
Unit pricing, sample terms, freight, and lead time are confirmed by RFQ after drawings, quantity, destination, annual volume, and validation scope are reviewed.
| Field | Current Page Value | Buyer Use |
|---|---|---|
| Product code | MPM-CUSTOM-OEM-MICRO-DRIVE-ASSEMBLIES | Page-level product family identifier used to keep RFQ, drawing, sample, and quote communication aligned. |
| Commercial path | RFQ-based OEM quotation | No public checkout price is shown because winding, ratio, gear material, shaft, validation evidence, freight, and volume change the final unit cost. |
| Offer status | Platform-dependent availability | Standard micro planetary motor platforms are reviewed for custom sampling and production fit before quote confirmation. |
| Condition | New OEM components and assemblies | Samples and production lots are treated as new industrial components tied to the approved drawing revision and buyer file. |
| Valid from | August 5, 2026 | This page describes the current RFQ route; written quotations state their own price validity, incoterm, and lead-time assumptions. |
| Region | Worldwide RFQ support | Destination, compliance needs, packing notes, and shipping route are confirmed during quotation instead of embedded as a fixed retail shipping rate. |
| Quote currency | USD | Export quotations are usually discussed in USD unless a buyer requests another quotation currency. |
OEM Buyer Decision Path
Product selection usually fails when only one team reviews the motor. Use this path to connect mechanical fit, quote scope, validation evidence, and production handoff before sample approval.
| Buyer Role | Decision Check | Page Evidence | Next Step |
|---|---|---|---|
| Design Engineering | Envelope, output speed, continuous torque, stall condition, backlash/noise limit, shaft datum, and cable route. | Performance window, engineering focus, customization map, CAD/STEP request path, and material review. | Request CAD / STEP |
| Procurement | Prototype quantity, annual volume, destination, sample timing, quote scope, and approved supplier workflow. | RFQ checklist, email template, WhatsApp handoff, and quote caveat before sample pricing. | Send RFQ |
| Quality | Incoming CTQ, drawing revision, torque-speed test condition, noise/backlash method, and lot traceability expectation. | Risk controls, validation scope, buyer file package, and quality evidence review path. | Review Quality |
| OEM Program | NPI stage, frozen BOM fields, custom tooling boundary, packing rules, revision control, and production handoff. | OEM customization options, supplier workflow, export coordination, and related application routing. | OEM Workflow |
| Metric | Typical Range | Why It Matters |
|---|---|---|
| Integration Level | Turnkey Modules | Reduces internal assembly work and keeps quality controls under one coordinated build plan. |
| Interface Coverage | Shaft, flange, harness, connector, housing, feedback | Clarifies which mechanical and electrical interfaces are controlled in the production plan. |
| Validation Scope | Electrical, mechanical, and end-of-line checks by project | Turns a custom assembly from a drawing exercise into a repeatable production item. |
Ratio & Performance Window
These RFQ reference windows translate the planning ranges into an engineering shortlist. Final datasheet values are confirmed by winding, ratio, gear material, load, duty cycle, current limit, and test condition before sample approval.
| Frame / OD | Rated Voltage | Ratio Range | No-load RPM | Rated-load RPM | Continuous Output Torque | Stall Torque | Efficiency | Application Fit |
|---|---|---|---|---|---|---|---|---|
| Custom 6-12mm module | 3-12V by buyer driver | 5:1-1000:1 | Set from selected motor and cable/driver package | Validated in buyer fixture before pilot release | 5 g.cm-1.5 kg.cm reference window | Frozen with jam logic and current limit | Measured after final shaft, gear, and harness build | Medical, optical, smart lock subassemblies |
| Custom 16/22mm module | 6-24V DC or BLDC | 4:1-1500:1 | Motor-platform dependent; verify with assembly load | Confirmed by system fixture and acceptance test | 0.5-5.5 Nm reference window | Validated against end-stop and coupling design | Confirmed after material, grease, and mounting freeze | Valves, industrial modules, robotic joints |
| Custom 36/42mm module | 12-48V DC or BLDC | 3:1-512:1 | Chosen from actuator or wheel speed target | Validated under full module load and heat path | 9.3-35 Nm reference window | Requires reinforced output and controller protection | System-level test value after pilot build | AGV, mower, heavy actuator assemblies |
Sample Acceptance Plan
Before a motor family becomes a sample order, sales engineering converts the RFQ into acceptance checks for engineering, procurement, and quality. These checks keep CAD/STEP release, prototype approval, and repeat production tied to the same specification baseline.
| Workstream | Buyer Question | Evidence to Prepare | Pass Signal |
|---|---|---|---|
| Module boundary freeze | Which interfaces belong to the supplied drive module instead of the buyer assembly? | 3D space claim, mating parts, shaft and flange drawings, housing limits, and required assembly sequence. | A controlled drawing revision defines shaft, housing, mounting, cable exit, and feedback boundary. |
| Harness and connector | Will the wiring, connector, and strain relief survive installation and field movement? | Connector part number, pinout, cable length, bend radius, routing path, and pull or vibration limit. | Continuity, pinout, strain relief, and installation fit pass on the buyer fixture. |
| Fixture validation | Can the complete module be accepted by the same test the buyer uses internally? | Prototype fixture, pass/fail limits, torque-speed target, current limit, noise target, and cycle count. | The assembled module passes the buyer fixture test with the approved motor, gearbox, encoder, and harness. |
| Pilot production handoff | Are the custom options controlled tightly enough for repeatable production lots? | BOM option list, drawing revision, end-of-line checks, packaging requirement, and annual volume forecast. | Pilot units ship against one frozen revision with inspection records tied to the RFQ baseline. |
Selection-Ready Product Data
Public diameter pages are only the starting point. For RFQ review, sales engineering confirms rated voltage, no-load RPM, rated-load RPM, continuous output torque, stall torque, current, efficiency, and gear ratio against your mechanism before releasing drawings or sample pricing.
| Performance Field | Buyer Input | How It Shapes the Quote |
|---|---|---|
| Rated voltage and current limit | 3V, 6V, 12V, 24V, or buyer-defined driver limit | Selects the winding, thermal margin, stall-current boundary, and battery or adapter fit. |
| No-load speed and loaded output speed | Motor RPM, target output RPM, and acceptable speed tolerance | Narrows the gear ratio and keeps the prototype inside the required actuation time. |
| Continuous output torque and stall torque | Working torque, peak load, jam condition, and stall duration | Checks gear material, shaft support, carrier strength, and safety margin before sampling. |
| Gear ratio and efficiency target | Known ratio, output RPM target, or torque-speed curve from the mechanism | Builds the ratio table used to compare speed, torque, current, efficiency, and heat rise. |
| Duty cycle and life target | On/off sequence, cycles per day, lifetime cycles, ambient temperature | Defines grease, gear stack, winding temperature, brush life, and sample validation scope. |
| Noise and backlash limit | dB limit, measurement distance, arcmin or degree target, load fixture | Separates POM, hybrid, metal, and low-backlash options before the CAD exchange. |
Customization Options
The useful custom scope is normally around the shaft, gearbox stack, feedback, cable exit, connector, and buyer file package. These options should be fixed before tooling, CAD exchange, or pilot builds.
| Custom Area | Common Options | RFQ Signal |
|---|---|---|

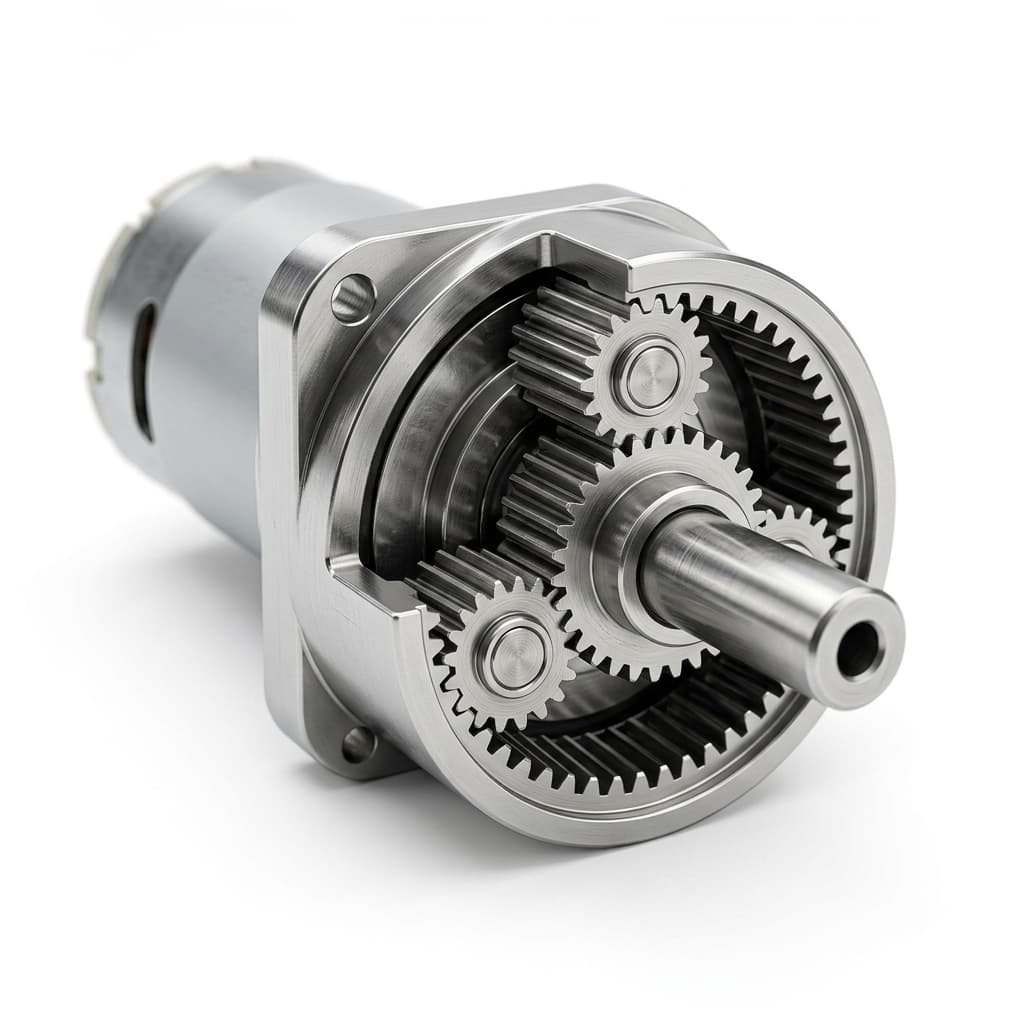

| Output shaft and mounting | D-cut, flat, threaded, cross-drilled, keyway, custom length, flange, bearing support. | Attach shaft datum, mating part drawing, radial/axial load direction, and installation sequence. |
| Gear material and backlash | POM, MIM, machined metal, hybrid stages, grease selection, low-backlash build review. | State torque peaks, reversing frequency, noise target, temperature, and life requirement. |
| Feedback and control | Encoder, Hall signal, EMI suppression, pinout, driver match, current-limit review. | Share CPR, signal voltage, controller type, cable route, connector drawing, and EOL test needs. |
| Cable, connector, and assembly | Lead wire length, connector model, cable exit, strain relief, bracket, harness, module assembly. | Include enclosure envelope, bend radius, pull-force concern, label rules, and packing notes. |
| Compliance and buyer file | RoHS/REACH file, material note, drawing revision, sample test report, lot traceability. | Confirm destination, regulated-market expectations, incoming inspection plan, and annual volume. |
Evidence Pack Before Sampling
These files are normally reviewed by request rather than downloaded instantly. Confirm the scope early so drawings, sample data, quality records, and production notes match the same motor revision.
| Evidence Item | What to Request | Why It Matters | Route |
|---|---|---|---|
| CAD / STEP baseline | Outer diameter, length, shaft geometry, flange datum, connector clearance, and mating-part constraints. | Prevents a mechanically suitable motor from failing because of envelope, shaft, or mounting mismatch. | CAD request |
| Torque-speed-current window | Rated voltage, no-load speed, rated-load speed, continuous torque, stall torque, current limit, and duty cycle. | Separates reference catalog windows from the sample value set that purchasing and engineering can approve. | RFQ template |
| Inspection and test evidence | Dimensional CTQ, gear ratio check, no-load current, load test, noise/backlash method, and final inspection record. | Lets the buyer define what must be proven before incoming inspection, pilot build, or supplier approval. | Quality review |
| Gear material and backlash route | POM, hybrid, or metal stage choice, grease condition, reversing motion, temperature, shock load, and noise target. | Aligns durability, acoustic behavior, backlash, cost, and life expectation before the sample BOM is frozen. | Material guide |
| OEM handoff package | Drawing revision, cable/connector rules, label and packing notes, destination, compliance file needs, and annual volume. | Turns a selected sample into a production-ready supplier package with fewer revision loops. | OEM workflow |
Gear Material Review
Use the material guide to align noise, torque density, stall load, wear, grease, and backlash expectations before the sample BOM is frozen.
CAD / STEP Request
Share the mating envelope and target duty data so sales engineering can confirm whether an existing outline drawing, STEP/IGES file, or custom shaft and flange proposal is suitable for your project.
Installation envelope, mounting pattern, shaft interface, and cable exit.
Voltage, loaded speed, torque, gear ratio, duty cycle, noise, and backlash limits.
Preferred CAD format, drawing revision, prototype quantity, destination, and compliance notes.
CAD files are shared by project fit and revision status. For custom shafts, flanges, cable routing, or gearbox interfaces, attach the mating drawing so the first CAD exchange uses the correct mechanical boundary.
Yes, we source and integrate specified connectors (JST, Molex, TE, etc.) and define continuity checks for the approved harness.
Yes. Send 3D CAD, mating part drawings, cable routing limits, and the required installation sequence for review.
Prototype approval usually combines dimensional checks, torque-speed testing, current/noise review, and the buyer-defined fixture test.
Start with the installation CAD, load and speed target, voltage and driver limits, shaft interface, connector requirement, sample test method, and expected annual quantity.
Product Qualification Review
Send the target size, voltage, torque, speed, ratio, quantity, drawing status, and validation concerns. Sales engineering can then confirm whether this product family is the right starting point or whether another frame, gear material, or OEM assembly route is safer.
