← Back to Products

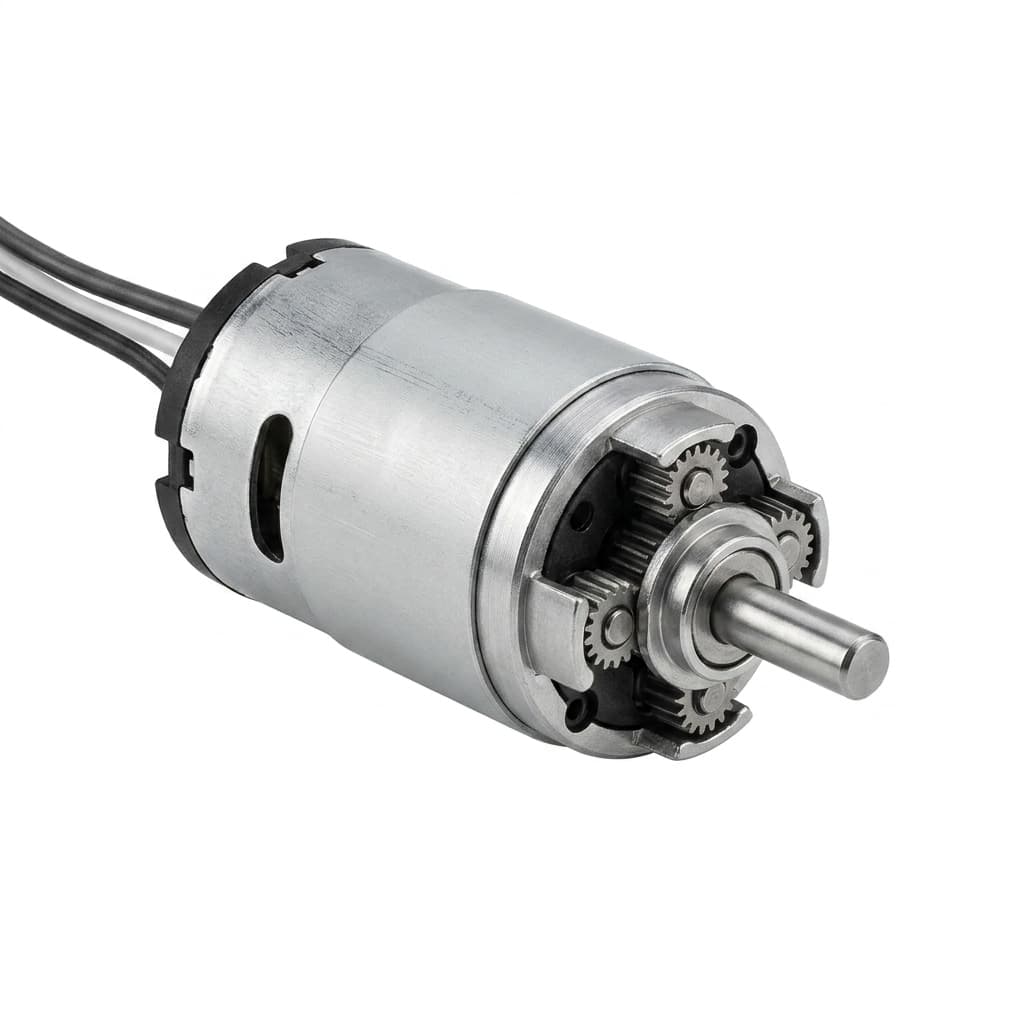

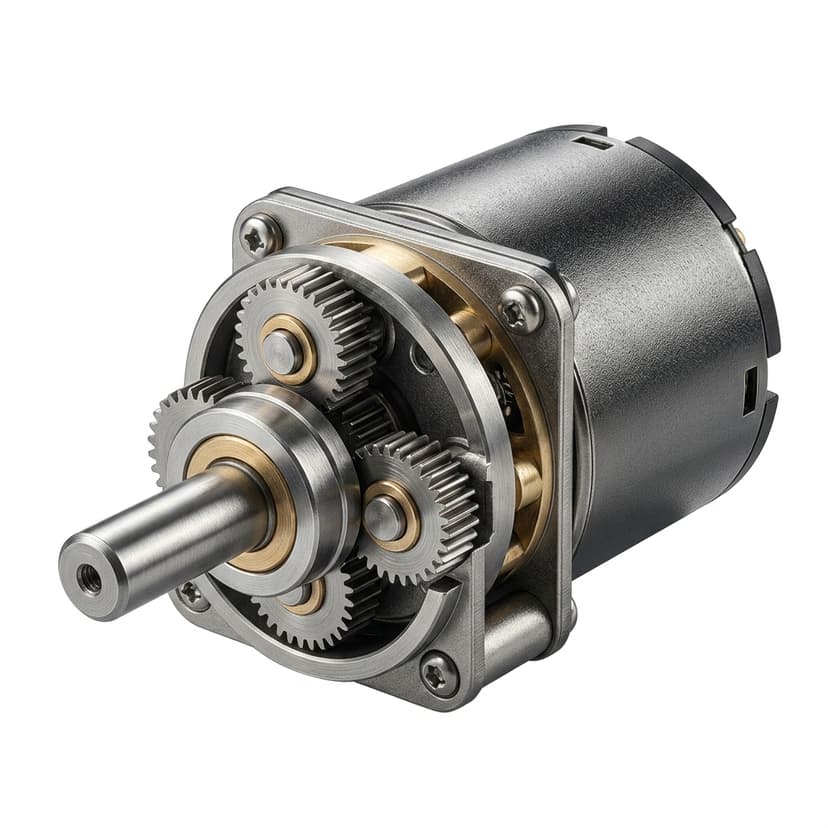

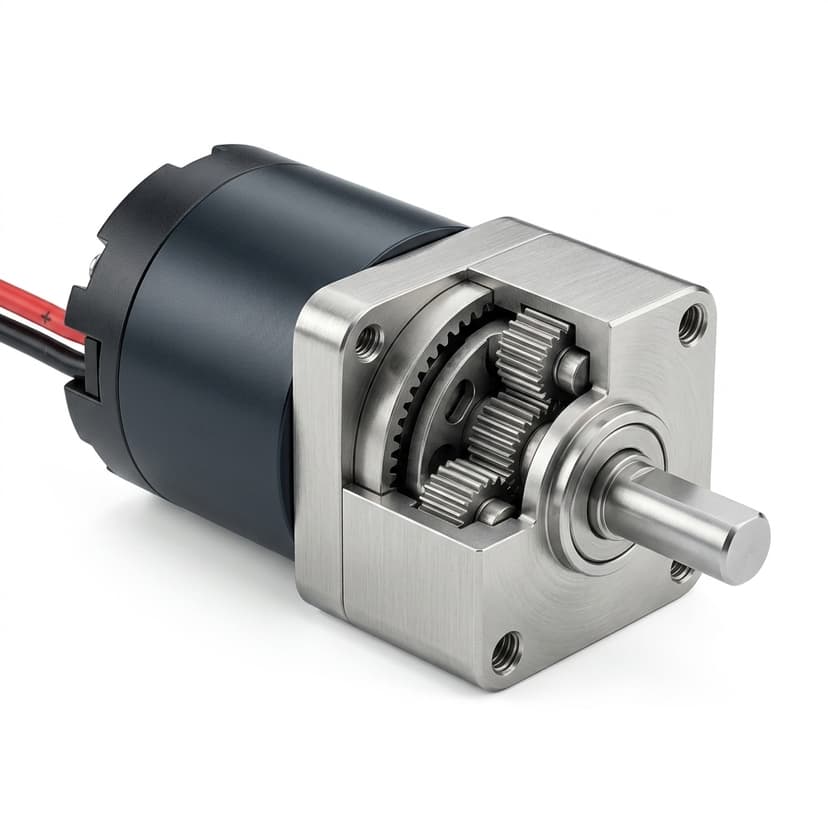

Encoder Micro Planetary Gear Motor
Closed-loop micro planetary gear motors with magnetic or optical feedback for OEM motion systems that need measurable speed, direction, homing, or positioning data instead of open-loop timing assumptions.
Target Buyer:Best for robotics, automation, optics, and actuator teams that need supplier-supported feedback resolution, wiring control, and acceptance tests for repeatable movement.
OEM pricing, sample terms, freight, and lead time are confirmed by RFQ after drawings, quantity, destination, and validation scope are reviewed.
Commercial Availability
RFQ Terms for Encoder Micro Planetary Gear Motor
Unit pricing, sample terms, freight, and lead time are confirmed by RFQ after drawings, quantity, destination, annual volume, and validation scope are reviewed.
| Field | Current Page Value | Buyer Use |
|---|---|---|
| Product code | MPM-ENCODER-MICRO-PLANETARY-GEAR-MOTOR | Page-level product family identifier used to keep RFQ, drawing, sample, and quote communication aligned. |
| Commercial path | RFQ-based OEM quotation | No public checkout price is shown because winding, ratio, gear material, shaft, validation evidence, freight, and volume change the final unit cost. |
| Offer status | Platform-dependent availability | Standard micro planetary motor platforms are reviewed for custom sampling and production fit before quote confirmation. |
| Condition | New OEM components and assemblies | Samples and production lots are treated as new industrial components tied to the approved drawing revision and buyer file. |
| Valid from | August 5, 2026 | This page describes the current RFQ route; written quotations state their own price validity, incoterm, and lead-time assumptions. |
| Region | Worldwide RFQ support | Destination, compliance needs, packing notes, and shipping route are confirmed during quotation instead of embedded as a fixed retail shipping rate. |
| Quote currency | USD | Export quotations are usually discussed in USD unless a buyer requests another quotation currency. |
Commercial path
- Current Page Value
- RFQ-based OEM quotation
- Buyer Use
- No public checkout price is shown because winding, ratio, gear material, shaft, validation evidence, freight, and volume change the final unit cost.
Offer status
- Current Page Value
- Platform-dependent availability
- Buyer Use
- Standard micro planetary motor platforms are reviewed for custom sampling and production fit before quote confirmation.
Condition
- Current Page Value
- New OEM components and assemblies
- Buyer Use
- Samples and production lots are treated as new industrial components tied to the approved drawing revision and buyer file.
Valid from
- Current Page Value
- August 5, 2026
- Buyer Use
- This page describes the current RFQ route; written quotations state their own price validity, incoterm, and lead-time assumptions.
Region
- Current Page Value
- Worldwide RFQ support
- Buyer Use
- Destination, compliance needs, packing notes, and shipping route are confirmed during quotation instead of embedded as a fixed retail shipping rate.
Quote currency
- Current Page Value
- USD
- Buyer Use
- Export quotations are usually discussed in USD unless a buyer requests another quotation currency.
Capability Highlights
- Precise speed and position feedback
- Dual channel quadrature output
- Compact integration
Typical Applications
- AGV/AMR Drives
- Precision Optics
- Automated Valves
- Metering and indexing modules
- Robotic service mechanisms
Engineering Focus
- Encoder resolution (CPR) matching
- Signal integrity and wiring harness
- Backlash management
- Motor-side versus output-side feedback tradeoff
- Controller logic level and noise immunity
OEM Buyer Decision Path
Qualify the Product Across Engineering, Procurement, and QA
Product selection usually fails when only one team reviews the motor. Use this path to connect mechanical fit, quote scope, validation evidence, and production handoff before sample approval.
| Buyer Role | Decision Check | Page Evidence | Next Step |
|---|---|---|---|
| Design Engineering | Envelope, output speed, continuous torque, stall condition, backlash/noise limit, shaft datum, and cable route. | Performance window, engineering focus, customization map, CAD/STEP request path, and material review. | Request CAD / STEP |
| Procurement | Prototype quantity, annual volume, destination, sample timing, quote scope, and approved supplier workflow. | RFQ checklist, email template, WhatsApp handoff, and quote caveat before sample pricing. | Send RFQ |
| Quality | Incoming CTQ, drawing revision, torque-speed test condition, noise/backlash method, and lot traceability expectation. | Risk controls, validation scope, buyer file package, and quality evidence review path. | Review Quality |
| OEM Program | NPI stage, frozen BOM fields, custom tooling boundary, packing rules, revision control, and production handoff. | OEM customization options, supplier workflow, export coordination, and related application routing. | OEM Workflow |
Design Engineering
- Decision Check
- Envelope, output speed, continuous torque, stall condition, backlash/noise limit, shaft datum, and cable route.
- Page Evidence
- Performance window, engineering focus, customization map, CAD/STEP request path, and material review.
- Next Step
- Request CAD / STEP
Procurement
- Decision Check
- Prototype quantity, annual volume, destination, sample timing, quote scope, and approved supplier workflow.
- Page Evidence
- RFQ checklist, email template, WhatsApp handoff, and quote caveat before sample pricing.
- Next Step
- Send RFQ
Quality
- Decision Check
- Incoming CTQ, drawing revision, torque-speed test condition, noise/backlash method, and lot traceability expectation.
- Page Evidence
- Risk controls, validation scope, buyer file package, and quality evidence review path.
- Next Step
- Review Quality
OEM Program
- Decision Check
- NPI stage, frozen BOM fields, custom tooling boundary, packing rules, revision control, and production handoff.
- Page Evidence
- OEM customization options, supplier workflow, export coordination, and related application routing.
- Next Step
- OEM Workflow
Key Evaluation Matrix
| Metric | Typical Range | Why It Matters |
|---|---|---|
| Encoder CPR | 3 - 1000 CPR | Dictates the positioning resolution capability of the system. |
| Output Channels | Dual Channel (A/B) Quadrature | Enables both speed measurement and directional sensing. |
| Input Voltage (Vcc) | 3.3V or 5.0V | Must match your MCU logic level to avoid blowing the sensor. |
Encoder CPR
- Typical Range
- 3 - 1000 CPR
- Why It Matters
- Dictates the positioning resolution capability of the system.
Output Channels
- Typical Range
- Dual Channel (A/B) Quadrature
- Why It Matters
- Enables both speed measurement and directional sensing.
Input Voltage (Vcc)
- Typical Range
- 3.3V or 5.0V
- Why It Matters
- Must match your MCU logic level to avoid blowing the sensor.
Ratio & Performance Window
Reference Performance Table by Frame and Ratio
These RFQ reference windows translate the planning ranges into an engineering shortlist. Final datasheet values are confirmed by winding, ratio, gear material, load, duty cycle, current limit, and test condition before sample approval.
| Frame / OD | Rated Voltage | Ratio Range | No-load RPM | Rated-load RPM | Continuous Output Torque | Stall Torque | Efficiency | Application Fit |
|---|---|---|---|---|---|---|---|---|
| 10/12mm encoder gearmotor | 3-12V motor; 3.3V or 5V encoder | 5:1-1000:1 | Quote from motor RPM, CPR, and controller input | Confirm pulse rate at target loaded output RPM | 100 g.cm-1.5 kg.cm reference window | Jam limit must protect gears and encoder PCB | Gear stage count plus sensor load dependent | Smart locks, optics, compact automation |
| 16/22mm encoder gearmotor | 6-24V motor; 3.3V or 5V encoder | 4:1-1500:1 | Motor winding dependent; verify pulse bandwidth | Set by closed-loop speed and load curve | 0.5-5.5 Nm reference window | Confirm overload, homing, and current cutoff | Ratio, bearing load, and feedback wiring dependent | AGV modules, valves, robot joints |
| 36/42mm encoder BLDC option | 24-48V BLDC with feedback | 3:1-512:1 | Driver and feedback bandwidth reviewed together | Validated at loaded wheel or actuator speed | 9.3-35 Nm reference window | Driver, shaft, and gearbox protection required | Optimized around BLDC drive and stage count | AGV wheels, steering axes, heavy actuators |
10/12mm encoder gearmotor
- Rated Voltage
- 3-12V motor; 3.3V or 5V encoder
- Ratio Range
- 5:1-1000:1
- No-load RPM
- Quote from motor RPM, CPR, and controller input
- Rated-load RPM
- Confirm pulse rate at target loaded output RPM
- Continuous Output Torque
- 100 g.cm-1.5 kg.cm reference window
- Stall Torque
- Jam limit must protect gears and encoder PCB
- Efficiency
- Gear stage count plus sensor load dependent
- Application Fit
- Smart locks, optics, compact automation
16/22mm encoder gearmotor
- Rated Voltage
- 6-24V motor; 3.3V or 5V encoder
- Ratio Range
- 4:1-1500:1
- No-load RPM
- Motor winding dependent; verify pulse bandwidth
- Rated-load RPM
- Set by closed-loop speed and load curve
- Continuous Output Torque
- 0.5-5.5 Nm reference window
- Stall Torque
- Confirm overload, homing, and current cutoff
- Efficiency
- Ratio, bearing load, and feedback wiring dependent
- Application Fit
- AGV modules, valves, robot joints

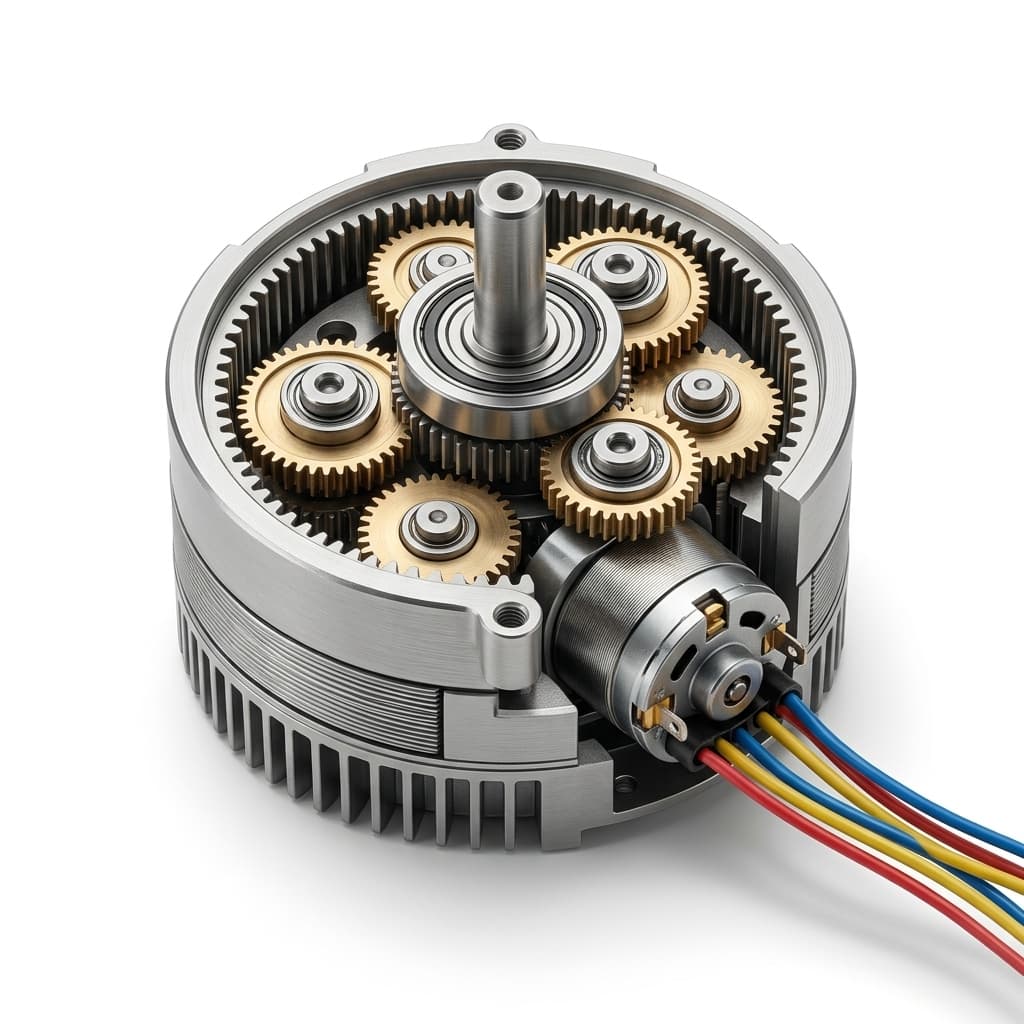

36/42mm encoder BLDC option
- Rated Voltage
- 24-48V BLDC with feedback
- Ratio Range
- 3:1-512:1
- No-load RPM
- Driver and feedback bandwidth reviewed together
- Rated-load RPM
- Validated at loaded wheel or actuator speed
- Continuous Output Torque
- 9.3-35 Nm reference window
- Stall Torque
- Driver, shaft, and gearbox protection required
- Efficiency
- Optimized around BLDC drive and stage count
- Application Fit
- AGV wheels, steering axes, heavy actuators
Sample Acceptance Plan
Turn Product Selection Into Pass/Fail Checks
Before a motor family becomes a sample order, sales engineering converts the RFQ into acceptance checks for engineering, procurement, and quality. These checks keep CAD/STEP release, prototype approval, and repeat production tied to the same specification baseline.
| Workstream | Buyer Question | Evidence to Prepare | Pass Signal |
|---|---|---|---|
| Encoder resolution | Does the CPR/PPR target give enough control resolution after gearbox reduction? | Position tolerance, controller count rate, target RPM range, PPR/CPR preference, and logic voltage. | Measured counts, direction, and low-speed resolution satisfy the control-loop requirement. |
| Homing and jam behavior | Can the system detect end stops, missed motion, or reversal without false position confidence? | Homing sequence, jam current threshold, reversal frequency, controller logic, and backlash allowance. | The sample identifies direction, jam events, and repeatable home position under load. |
| Cable and signal integrity | Will encoder signals stay clean through the final harness and connector route? | Cable length, connector family, shielding, pull-up values, MCU voltage, and nearby EMI sources. | A/B pulses remain clean at the required speed with no connector dropout or false counts. |
| Mechanical accuracy stack | Is the positioning error dominated by gearbox backlash, encoder resolution, or linkage tolerance? | Backlash limit, shaft coupling, mounting datum, load direction, and repeatability target. | Output repeatability is measured at the load condition the buyer will use for acceptance. |
Encoder resolution
- Buyer Question
- Does the CPR/PPR target give enough control resolution after gearbox reduction?
- Evidence to Prepare
- Position tolerance, controller count rate, target RPM range, PPR/CPR preference, and logic voltage.
- Pass Signal
- Measured counts, direction, and low-speed resolution satisfy the control-loop requirement.
Homing and jam behavior
- Buyer Question
- Can the system detect end stops, missed motion, or reversal without false position confidence?
- Evidence to Prepare
- Homing sequence, jam current threshold, reversal frequency, controller logic, and backlash allowance.
- Pass Signal
- The sample identifies direction, jam events, and repeatable home position under load.
Cable and signal integrity
- Buyer Question
- Will encoder signals stay clean through the final harness and connector route?
- Evidence to Prepare
- Cable length, connector family, shielding, pull-up values, MCU voltage, and nearby EMI sources.
- Pass Signal
- A/B pulses remain clean at the required speed with no connector dropout or false counts.
Mechanical accuracy stack
- Buyer Question
- Is the positioning error dominated by gearbox backlash, encoder resolution, or linkage tolerance?
- Evidence to Prepare
- Backlash limit, shaft coupling, mounting datum, load direction, and repeatability target.
- Pass Signal
- Output repeatability is measured at the load condition the buyer will use for acceptance.
Selection-Ready Product Data
Build the Ratio Table Before Sample Approval
Public diameter pages are only the starting point. For RFQ review, sales engineering confirms rated voltage, no-load RPM, rated-load RPM, continuous output torque, stall torque, current, efficiency, and gear ratio against your mechanism before releasing drawings or sample pricing.
| Performance Field | Buyer Input | How It Shapes the Quote |
|---|---|---|
| Rated voltage and current limit | 3V, 6V, 12V, 24V, or buyer-defined driver limit | Selects the winding, thermal margin, stall-current boundary, and battery or adapter fit. |
| No-load speed and loaded output speed | Motor RPM, target output RPM, and acceptable speed tolerance | Narrows the gear ratio and keeps the prototype inside the required actuation time. |
| Continuous output torque and stall torque | Working torque, peak load, jam condition, and stall duration | Checks gear material, shaft support, carrier strength, and safety margin before sampling. |
| Gear ratio and efficiency target | Known ratio, output RPM target, or torque-speed curve from the mechanism | Builds the ratio table used to compare speed, torque, current, efficiency, and heat rise. |
| Duty cycle and life target | On/off sequence, cycles per day, lifetime cycles, ambient temperature | Defines grease, gear stack, winding temperature, brush life, and sample validation scope. |
| Noise and backlash limit | dB limit, measurement distance, arcmin or degree target, load fixture | Separates POM, hybrid, metal, and low-backlash options before the CAD exchange. |
Rated voltage and current limit
- Buyer Input
- 3V, 6V, 12V, 24V, or buyer-defined driver limit
- How It Shapes the Quote
- Selects the winding, thermal margin, stall-current boundary, and battery or adapter fit.
No-load speed and loaded output speed
- Buyer Input
- Motor RPM, target output RPM, and acceptable speed tolerance
- How It Shapes the Quote
- Narrows the gear ratio and keeps the prototype inside the required actuation time.
Continuous output torque and stall torque
- Buyer Input
- Working torque, peak load, jam condition, and stall duration
- How It Shapes the Quote
- Checks gear material, shaft support, carrier strength, and safety margin before sampling.
Gear ratio and efficiency target
- Buyer Input
- Known ratio, output RPM target, or torque-speed curve from the mechanism
- How It Shapes the Quote
- Builds the ratio table used to compare speed, torque, current, efficiency, and heat rise.
Duty cycle and life target
- Buyer Input
- On/off sequence, cycles per day, lifetime cycles, ambient temperature
- How It Shapes the Quote
- Defines grease, gear stack, winding temperature, brush life, and sample validation scope.
Noise and backlash limit
- Buyer Input
- dB limit, measurement distance, arcmin or degree target, load fixture
- How It Shapes the Quote
- Separates POM, hybrid, metal, and low-backlash options before the CAD exchange.
Customization Options
Match the Motor to the Mechanical Boundary
The useful custom scope is normally around the shaft, gearbox stack, feedback, cable exit, connector, and buyer file package. These options should be fixed before tooling, CAD exchange, or pilot builds.
| Custom Area | Common Options | RFQ Signal |
|---|---|---|
| Output shaft and mounting | D-cut, flat, threaded, cross-drilled, keyway, custom length, flange, bearing support. | Attach shaft datum, mating part drawing, radial/axial load direction, and installation sequence. |
| Gear material and backlash | POM, MIM, machined metal, hybrid stages, grease selection, low-backlash build review. | State torque peaks, reversing frequency, noise target, temperature, and life requirement. |
| Feedback and control | Encoder, Hall signal, EMI suppression, pinout, driver match, current-limit review. | Share CPR, signal voltage, controller type, cable route, connector drawing, and EOL test needs. |
| Cable, connector, and assembly | Lead wire length, connector model, cable exit, strain relief, bracket, harness, module assembly. | Include enclosure envelope, bend radius, pull-force concern, label rules, and packing notes. |
| Compliance and buyer file | RoHS/REACH file, material note, drawing revision, sample test report, lot traceability. | Confirm destination, regulated-market expectations, incoming inspection plan, and annual volume. |
Output shaft and mounting
- Common Options
- D-cut, flat, threaded, cross-drilled, keyway, custom length, flange, bearing support.
- RFQ Signal
- Attach shaft datum, mating part drawing, radial/axial load direction, and installation sequence.
Gear material and backlash
- Common Options
- POM, MIM, machined metal, hybrid stages, grease selection, low-backlash build review.
- RFQ Signal
- State torque peaks, reversing frequency, noise target, temperature, and life requirement.
Feedback and control
- Common Options
- Encoder, Hall signal, EMI suppression, pinout, driver match, current-limit review.
- RFQ Signal
- Share CPR, signal voltage, controller type, cable route, connector drawing, and EOL test needs.
Cable, connector, and assembly
- Common Options
- Lead wire length, connector model, cable exit, strain relief, bracket, harness, module assembly.
- RFQ Signal
- Include enclosure envelope, bend radius, pull-force concern, label rules, and packing notes.
Compliance and buyer file
- Common Options
- RoHS/REACH file, material note, drawing revision, sample test report, lot traceability.
- RFQ Signal
- Confirm destination, regulated-market expectations, incoming inspection plan, and annual volume.
Evidence Pack Before Sampling
Evidence Pack to Request Before Sampling
These files are normally reviewed by request rather than downloaded instantly. Confirm the scope early so drawings, sample data, quality records, and production notes match the same motor revision.
| Evidence Item | What to Request | Why It Matters | Route |
|---|---|---|---|
| CAD / STEP baseline | Outer diameter, length, shaft geometry, flange datum, connector clearance, and mating-part constraints. | Prevents a mechanically suitable motor from failing because of envelope, shaft, or mounting mismatch. | CAD request |
| Torque-speed-current window | Rated voltage, no-load speed, rated-load speed, continuous torque, stall torque, current limit, and duty cycle. | Separates reference catalog windows from the sample value set that purchasing and engineering can approve. | RFQ template |
| Inspection and test evidence | Dimensional CTQ, gear ratio check, no-load current, load test, noise/backlash method, and final inspection record. | Lets the buyer define what must be proven before incoming inspection, pilot build, or supplier approval. | Quality review |
| Gear material and backlash route | POM, hybrid, or metal stage choice, grease condition, reversing motion, temperature, shock load, and noise target. | Aligns durability, acoustic behavior, backlash, cost, and life expectation before the sample BOM is frozen. | Material guide |
| OEM handoff package | Drawing revision, cable/connector rules, label and packing notes, destination, compliance file needs, and annual volume. | Turns a selected sample into a production-ready supplier package with fewer revision loops. | OEM workflow |
CAD / STEP baseline
- What to Request
- Outer diameter, length, shaft geometry, flange datum, connector clearance, and mating-part constraints.
- Why It Matters
- Prevents a mechanically suitable motor from failing because of envelope, shaft, or mounting mismatch.
- Route
- CAD request
Torque-speed-current window
- What to Request
- Rated voltage, no-load speed, rated-load speed, continuous torque, stall torque, current limit, and duty cycle.
- Why It Matters
- Separates reference catalog windows from the sample value set that purchasing and engineering can approve.
- Route
- RFQ template
Inspection and test evidence
- What to Request
- Dimensional CTQ, gear ratio check, no-load current, load test, noise/backlash method, and final inspection record.
- Why It Matters
- Lets the buyer define what must be proven before incoming inspection, pilot build, or supplier approval.
- Route
- Quality review
Gear material and backlash route
- What to Request
- POM, hybrid, or metal stage choice, grease condition, reversing motion, temperature, shock load, and noise target.
- Why It Matters
- Aligns durability, acoustic behavior, backlash, cost, and life expectation before the sample BOM is frozen.
- Route
- Material guide
OEM handoff package
- What to Request
- Drawing revision, cable/connector rules, label and packing notes, destination, compliance file needs, and annual volume.
- Why It Matters
- Turns a selected sample into a production-ready supplier package with fewer revision loops.
- Route
- OEM workflow
Gear Material Review
Confirm POM, Hybrid, or Metal Stages Before Prototype Approval
Use the material guide to align noise, torque density, stall load, wear, grease, and backlash expectations before the sample BOM is frozen.
CAD / STEP Request
Request Outline Drawings Before You Freeze the Mechanical Design
Share the mating envelope and target duty data so sales engineering can confirm whether an existing outline drawing, STEP/IGES file, or custom shaft and flange proposal is suitable for your project.
1
Installation envelope, mounting pattern, shaft interface, and cable exit.
2
Voltage, loaded speed, torque, gear ratio, duty cycle, noise, and backlash limits.
3
Preferred CAD format, drawing revision, prototype quantity, destination, and compliance notes.
Fields engineering checks before sharing a model
- Product fit
- Diameter, gearbox length, motor family, shaft style, flange pattern, and cable or connector exit.
- Performance target
- Voltage, loaded speed, continuous torque, peak or stall torque, ratio, duty cycle, life, noise, and backlash.
- Mechanical interface
- Mating drawing revision, installation clearance, radial or axial load, tolerance priority, and assembly sequence.
- Release package
- 2D outline, STEP/IGES envelope, custom shaft/flange review, datasheet values, and quality evidence scope.
Useful before CAD freeze
CAD files are shared by project fit and revision status. For custom shafts, flanges, cable routing, or gearbox interfaces, attach the mating drawing so the first CAD exchange uses the correct mechanical boundary.
RFQ Checklist
- Required Pulses Per Revolution (PPR)
- Target positioning accuracy
- Connector type and pinout
- Logic voltage, output channel type, and cable length
- Whether feedback is required on motor shaft or output shaft
- Backlash, homing, and repeatability test method
Risk Controls
- Signal interference (EMI): Use shielded cables and proper grounding in the wiring harness.
- Pulse jitter at low speeds: We tune the magnetic pole clearance and use high-grade Hall ICs to ensure clean square waves.
- Vibration induced disconnects: All encoder PCBs are conformal coated and use locking JST/Molex connectors.
- Motor-side feedback hides gearbox lost motion: For precise output positioning, backlash, mounting stiffness, homing logic, and optional output-side sensing are reviewed together.

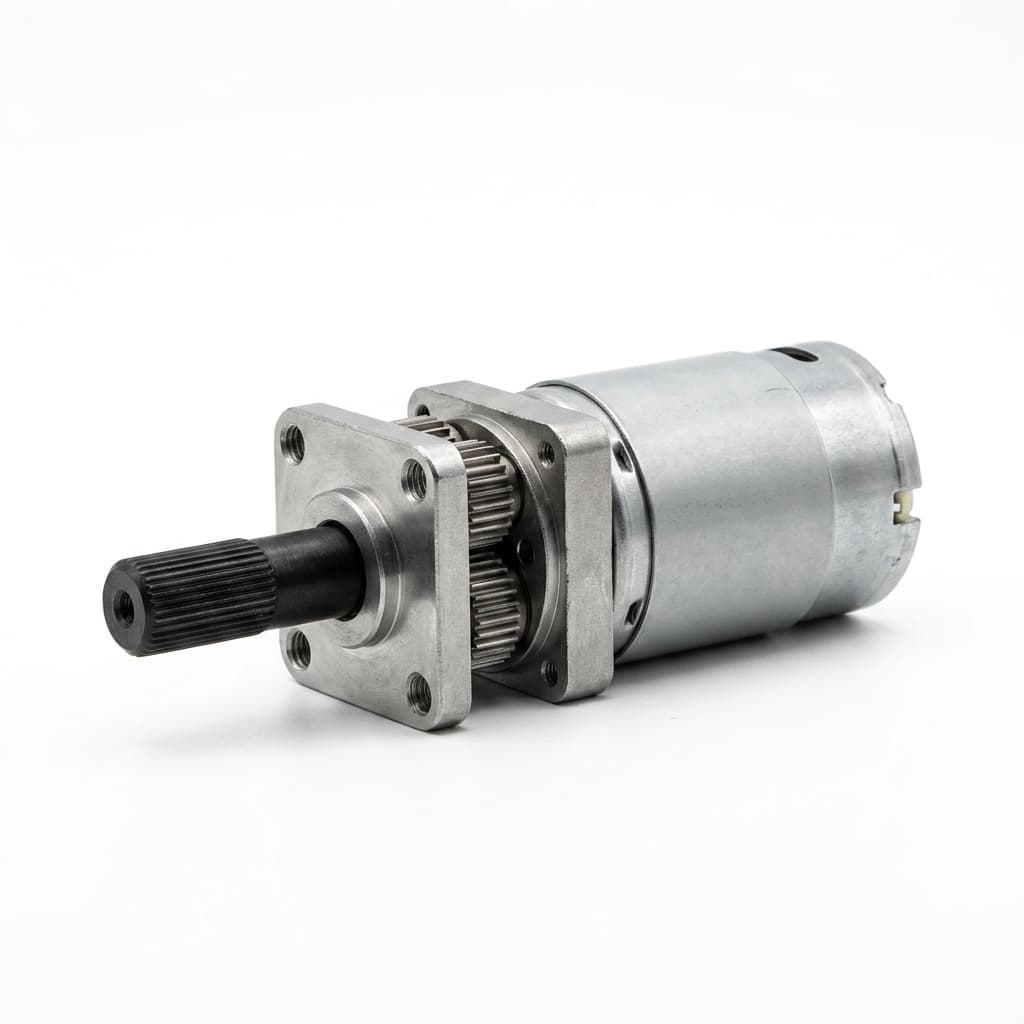

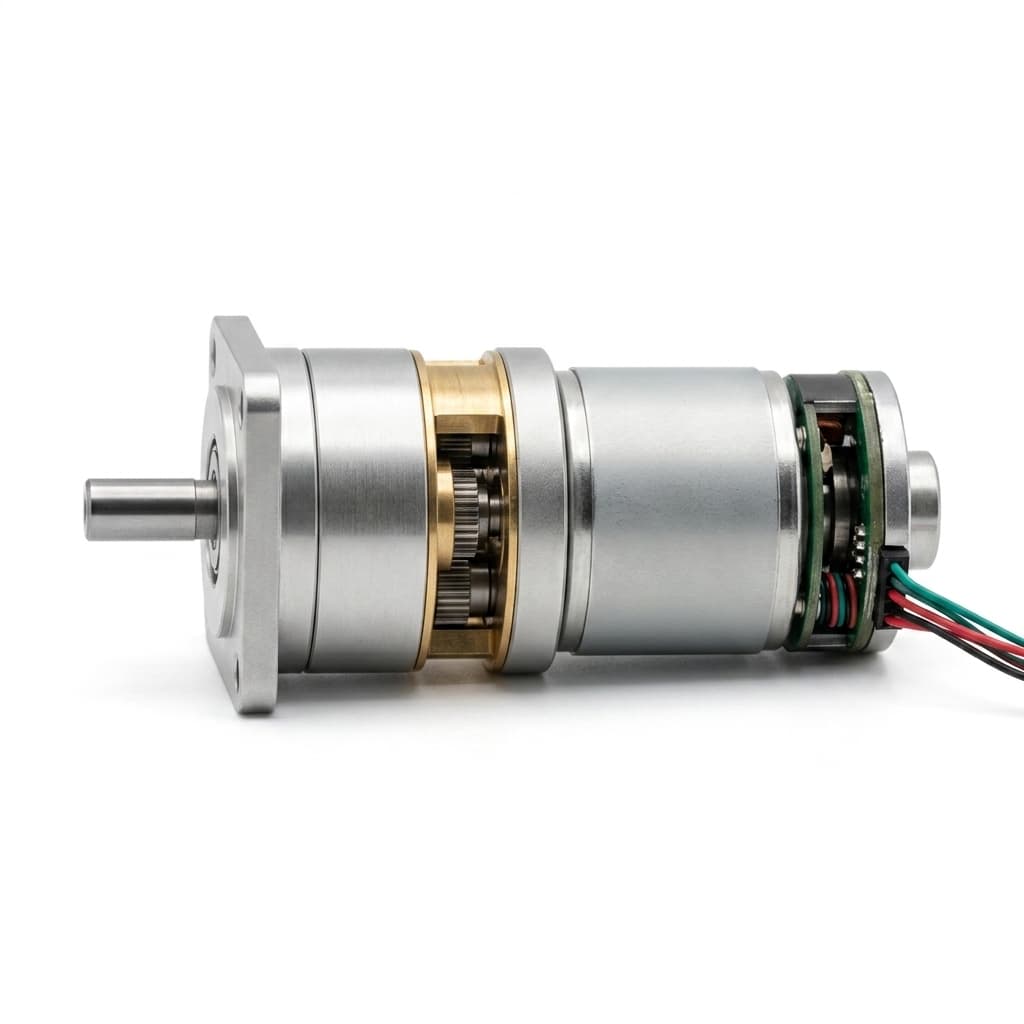

Product Gallery
Buyer FAQ
What types of encoders do you use?
We typically use magnetic Hall-effect encoders for robustness against dust and oil, but optical encoders are available for high precision.
Can I get a Z-index pulse?
Yes, 3-channel (A/B/Z) encoders are available upon request for absolute homing.
Do you provide the mating connector?
Yes, every sample is shipped with a flying-lead mating wire harness for immediate testing.
Can encoder feedback be placed on the gearbox output?
Output-side feedback can be reviewed when the package has enough space and the buyer defines repeatability, backlash, connector, and inspection requirements.
Related Resources
Product Qualification Review
Ready for a Product-Specific OEM Review?
Send the target size, voltage, torque, speed, ratio, quantity, drawing status, and validation concerns. Sales engineering can then confirm whether this product family is the right starting point or whether another frame, gear material, or OEM assembly route is safer.
WhatsApp: WhatsApp Engineering Support. Email: [email protected].
Inquiry Email
Include OD/length, voltage, torque, loaded speed, ratio, drawings, quantity, and destination.
Instant Chat
WhatsApp Engineering Support
Fast channel for clarifying specs, drawings, and sample timing.
