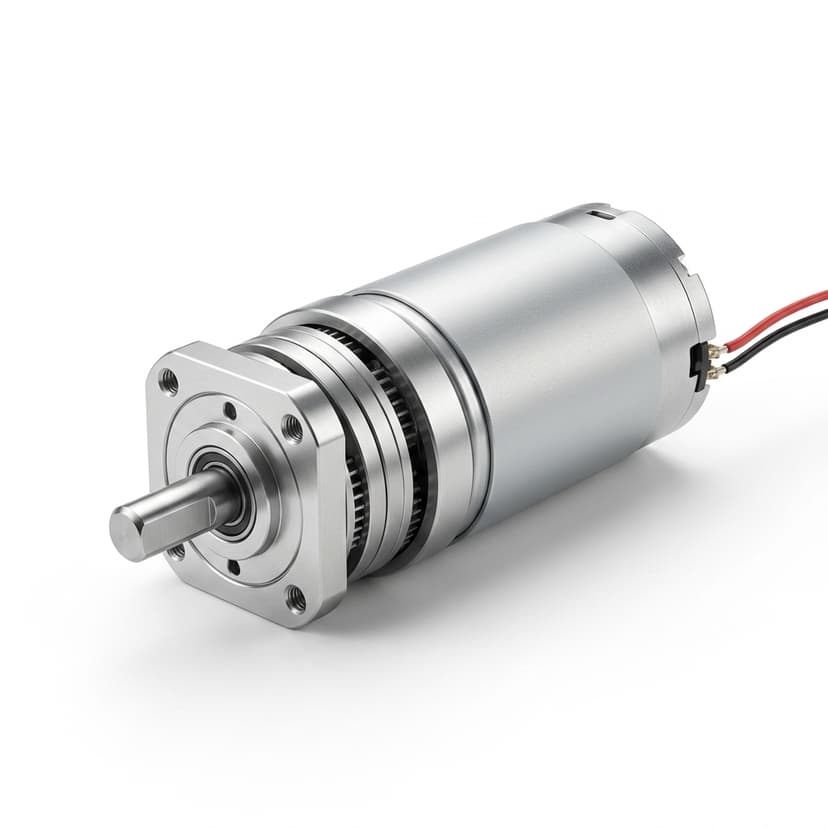

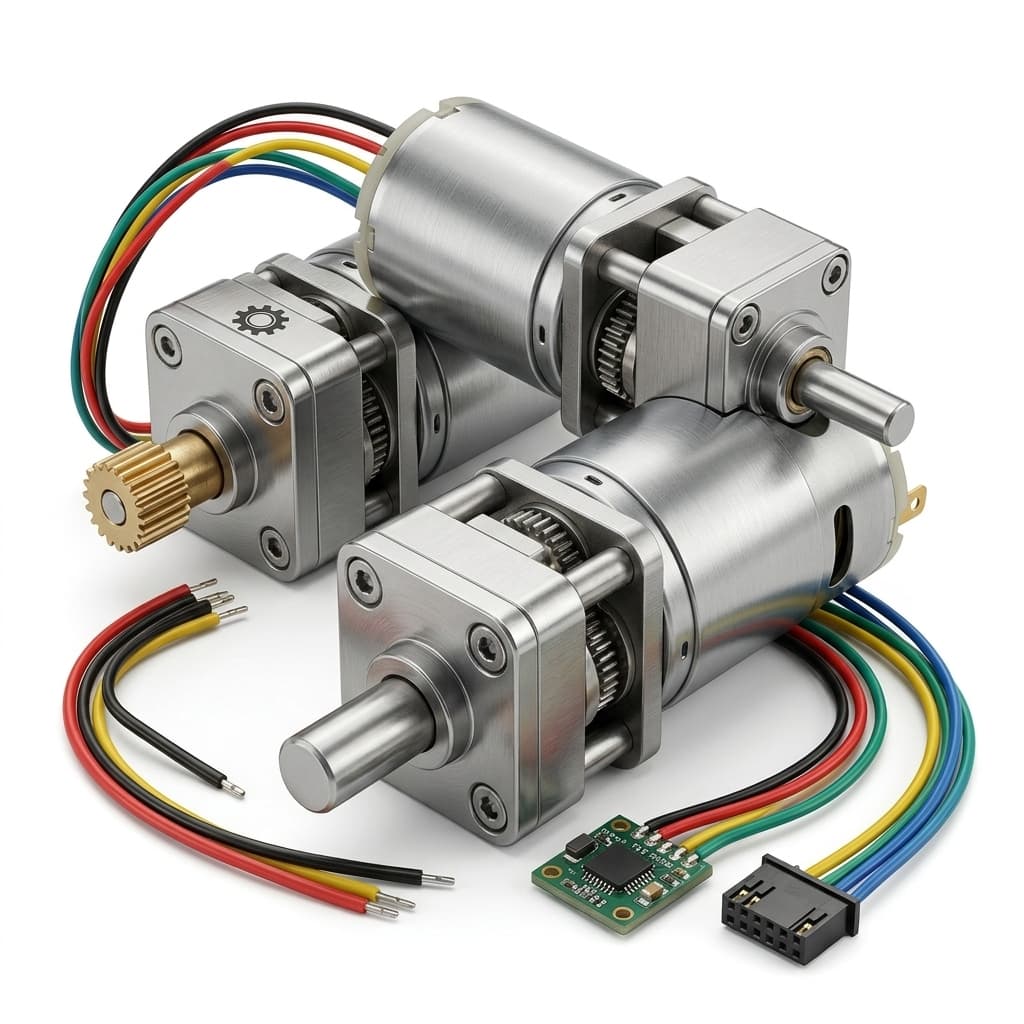

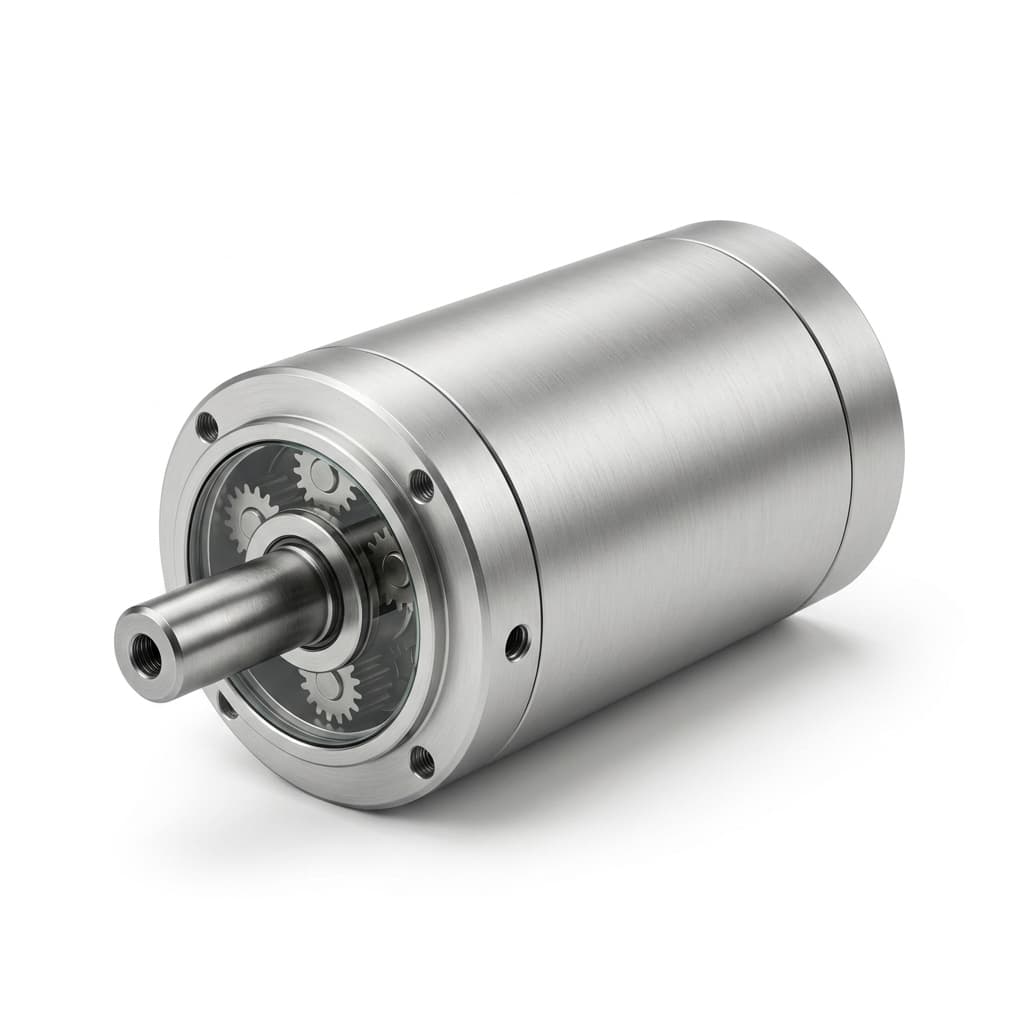

High Torque Miniature Gear Motors
Heavy-duty miniature planetary gear motors with reinforced carriers, metal gear train options, and output support reviews for applications that need higher torque density without ignoring heat, shock, stall, and shaft loading limits.
Target Buyer:For industrial equipment designers needing higher torque density in a small envelope, especially where the buyer can define continuous torque, peak torque, jam frequency, and controller cutoff behavior.
OEM pricing, sample terms, freight, and lead time are confirmed by RFQ after drawings, quantity, destination, and validation scope are reviewed.
Commercial Availability
RFQ Terms for High Torque Miniature Gear Motors
Unit pricing, sample terms, freight, and lead time are confirmed by RFQ after drawings, quantity, destination, annual volume, and validation scope are reviewed.
| Field | Current Page Value | Buyer Use |
|---|---|---|
| Product code | MPM-HIGH-TORQUE-MINIATURE-GEAR-MOTORS | Page-level product family identifier used to keep RFQ, drawing, sample, and quote communication aligned. |
| Commercial path | RFQ-based OEM quotation | No public checkout price is shown because winding, ratio, gear material, shaft, validation evidence, freight, and volume change the final unit cost. |
| Offer status | Platform-dependent availability | Standard micro planetary motor platforms are reviewed for custom sampling and production fit before quote confirmation. |
| Condition | New OEM components and assemblies | Samples and production lots are treated as new industrial components tied to the approved drawing revision and buyer file. |
| Valid from | August 5, 2026 | This page describes the current RFQ route; written quotations state their own price validity, incoterm, and lead-time assumptions. |
| Region | Worldwide RFQ support | Destination, compliance needs, packing notes, and shipping route are confirmed during quotation instead of embedded as a fixed retail shipping rate. |
| Quote currency | USD | Export quotations are usually discussed in USD unless a buyer requests another quotation currency. |
Commercial path
- Current Page Value
- RFQ-based OEM quotation
- Buyer Use
- No public checkout price is shown because winding, ratio, gear material, shaft, validation evidence, freight, and volume change the final unit cost.
Offer status
- Current Page Value
- Platform-dependent availability
- Buyer Use
- Standard micro planetary motor platforms are reviewed for custom sampling and production fit before quote confirmation.
Condition
- Current Page Value
- New OEM components and assemblies
- Buyer Use
- Samples and production lots are treated as new industrial components tied to the approved drawing revision and buyer file.
Valid from
- Current Page Value
- August 5, 2026
- Buyer Use
- This page describes the current RFQ route; written quotations state their own price validity, incoterm, and lead-time assumptions.
Region
- Current Page Value
- Worldwide RFQ support
- Buyer Use
- Destination, compliance needs, packing notes, and shipping route are confirmed during quotation instead of embedded as a fixed retail shipping rate.
Quote currency
- Current Page Value
- USD
- Buyer Use
- Export quotations are usually discussed in USD unless a buyer requests another quotation currency.
Capability Highlights
- Hardened steel gears
- Reinforced output bearings
- Peak torque withstand
Typical Applications
- Power Tools
- Automated Valves
- Heavy-duty Grippers
Engineering Focus
- Material hardening (heat treatment)
- Gear tooth bending strength
- Output shaft shear limits
OEM Buyer Decision Path
Qualify the Product Across Engineering, Procurement, and QA
Product selection usually fails when only one team reviews the motor. Use this path to connect mechanical fit, quote scope, validation evidence, and production handoff before sample approval.
| Buyer Role | Decision Check | Page Evidence | Next Step |
|---|---|---|---|
| Design Engineering | Envelope, output speed, continuous torque, stall condition, backlash/noise limit, shaft datum, and cable route. | Performance window, engineering focus, customization map, CAD/STEP request path, and material review. | Request CAD / STEP |
| Procurement | Prototype quantity, annual volume, destination, sample timing, quote scope, and approved supplier workflow. | RFQ checklist, email template, WhatsApp handoff, and quote caveat before sample pricing. | Send RFQ |
| Quality | Incoming CTQ, drawing revision, torque-speed test condition, noise/backlash method, and lot traceability expectation. | Risk controls, validation scope, buyer file package, and quality evidence review path. | Review Quality |
| OEM Program | NPI stage, frozen BOM fields, custom tooling boundary, packing rules, revision control, and production handoff. | OEM customization options, supplier workflow, export coordination, and related application routing. | OEM Workflow |
Design Engineering
- Decision Check
- Envelope, output speed, continuous torque, stall condition, backlash/noise limit, shaft datum, and cable route.
- Page Evidence
- Performance window, engineering focus, customization map, CAD/STEP request path, and material review.
- Next Step
- Request CAD / STEP
Procurement
- Decision Check
- Prototype quantity, annual volume, destination, sample timing, quote scope, and approved supplier workflow.
- Page Evidence
- RFQ checklist, email template, WhatsApp handoff, and quote caveat before sample pricing.
- Next Step
- Send RFQ
Quality
- Decision Check
- Incoming CTQ, drawing revision, torque-speed test condition, noise/backlash method, and lot traceability expectation.
- Page Evidence
- Risk controls, validation scope, buyer file package, and quality evidence review path.
- Next Step
- Review Quality
OEM Program
- Decision Check
- NPI stage, frozen BOM fields, custom tooling boundary, packing rules, revision control, and production handoff.
- Page Evidence
- OEM customization options, supplier workflow, export coordination, and related application routing.
- Next Step
- OEM Workflow
Key Evaluation Matrix
| Metric | Typical Range | Why It Matters |
|---|---|---|
| Peak Torque Capability | Up to 3x nominal | Determines the ability to push through unexpected mechanical jams. |
| Continuous Torque Window | Defined by ratio, frame size, and thermal path | Separates short overload capability from repeatable production operating load. |
| Output Support | Reinforced shaft and bearing options | High torque often arrives with side load, lever arms, or keyed couplings. |
Peak Torque Capability
- Typical Range
- Up to 3x nominal
- Why It Matters
- Determines the ability to push through unexpected mechanical jams.
Continuous Torque Window
- Typical Range
- Defined by ratio, frame size, and thermal path
- Why It Matters
- Separates short overload capability from repeatable production operating load.
Output Support
- Typical Range
- Reinforced shaft and bearing options
- Why It Matters
- High torque often arrives with side load, lever arms, or keyed couplings.
Ratio & Performance Window
Reference Performance Table by Frame and Ratio
These RFQ reference windows translate the planning ranges into an engineering shortlist. Final datasheet values are confirmed by winding, ratio, gear material, load, duty cycle, current limit, and test condition before sample approval.
| Frame / OD | Rated Voltage | Ratio Range | No-load RPM | Rated-load RPM | Continuous Output Torque | Stall Torque | Efficiency | Application Fit |
|---|---|---|---|---|---|---|---|---|
| 16/22mm high-torque metal | 6-24V DC or BLDC | 4:1-1500:1 | Motor speed selected after torque-speed review | Confirmed at continuous torque and heat limit | 0.5-5.5 Nm reference window | Specify stall torque, duration, and current cutoff | High ratio and metal stages reduce heat margin | Valves, grippers, robot vacuum lift modules |
| 36/42mm high-torque drive | 12-48V DC or BLDC | 3:1-512:1 | Driven by wheel, actuator, or tool speed target | Validated at load, temperature, and duty cycle | 9.3-35 Nm reference window | Needs reinforced shaft, carrier, and driver cutoff | Lower stage count preferred for continuous torque | AGV, mower, power tool, heavy actuator |
| Custom reinforced output | Buyer driver dependent | Project-defined ratio stack | Not selected from no-load RPM alone | Must be tested with coupling and side load | Locked by validated production test | Validated against shock and jam events | Measured after shaft, bearing, and grease freeze | Hard-stop and shock-load OEM mechanisms |
16/22mm high-torque metal
- Rated Voltage
- 6-24V DC or BLDC
- Ratio Range
- 4:1-1500:1
- No-load RPM
- Motor speed selected after torque-speed review
- Rated-load RPM
- Confirmed at continuous torque and heat limit
- Continuous Output Torque
- 0.5-5.5 Nm reference window
- Stall Torque
- Specify stall torque, duration, and current cutoff
- Efficiency
- High ratio and metal stages reduce heat margin
- Application Fit
- Valves, grippers, robot vacuum lift modules
36/42mm high-torque drive
- Rated Voltage
- 12-48V DC or BLDC
- Ratio Range
- 3:1-512:1
- No-load RPM
- Driven by wheel, actuator, or tool speed target
- Rated-load RPM
- Validated at load, temperature, and duty cycle
- Continuous Output Torque
- 9.3-35 Nm reference window
- Stall Torque
- Needs reinforced shaft, carrier, and driver cutoff
- Efficiency
- Lower stage count preferred for continuous torque
- Application Fit
- AGV, mower, power tool, heavy actuator
Custom reinforced output
- Rated Voltage
- Buyer driver dependent
- Ratio Range
- Project-defined ratio stack
- No-load RPM
- Not selected from no-load RPM alone
- Rated-load RPM
- Must be tested with coupling and side load
- Continuous Output Torque
- Locked by validated production test
- Stall Torque
- Validated against shock and jam events
- Efficiency
- Measured after shaft, bearing, and grease freeze
- Application Fit
- Hard-stop and shock-load OEM mechanisms
Sample Acceptance Plan
Turn Product Selection Into Pass/Fail Checks
Before a motor family becomes a sample order, sales engineering converts the RFQ into acceptance checks for engineering, procurement, and quality. These checks keep CAD/STEP release, prototype approval, and repeat production tied to the same specification baseline.
| Workstream | Buyer Question | Evidence to Prepare | Pass Signal |
|---|---|---|---|
| Peak vs continuous torque | Is the application asking for repeatable torque or short overload survival? | Continuous torque, peak torque, stall torque, target RPM, duty cycle, and thermal limit. | The selected frame passes continuous load without relying on peak torque as the normal operating point. |
| Shaft and shock load | Will the output shaft, carrier, and gear teeth survive jams or impact events? | Coupling drawing, radial and axial loads, lever arm, shock or jam frequency, and end-stop behavior. | Shaft support and gear material are approved against the worst-case mechanical load. |
| Current limit and heat | Can the controller protect the motor and gearbox during overloads? | Driver current limit, stall detection, thermal path, winding target, and ambient temperature range. | Overload protection prevents repeated thermal overrun or tooth overload during the defined duty. |
| Life-cycle validation | Does the sample survive the real high-load cycle, not only a bench torque check? | Cycle count, load profile, temperature range, inspection method, and allowed torque or noise drift. | Gear wear, current drift, and output torque remain acceptable after the buyer duty cycle. |
Peak vs continuous torque
- Buyer Question
- Is the application asking for repeatable torque or short overload survival?
- Evidence to Prepare
- Continuous torque, peak torque, stall torque, target RPM, duty cycle, and thermal limit.
- Pass Signal
- The selected frame passes continuous load without relying on peak torque as the normal operating point.
Shaft and shock load
- Buyer Question
- Will the output shaft, carrier, and gear teeth survive jams or impact events?
- Evidence to Prepare
- Coupling drawing, radial and axial loads, lever arm, shock or jam frequency, and end-stop behavior.
- Pass Signal
- Shaft support and gear material are approved against the worst-case mechanical load.
Current limit and heat
- Buyer Question
- Can the controller protect the motor and gearbox during overloads?
- Evidence to Prepare
- Driver current limit, stall detection, thermal path, winding target, and ambient temperature range.
- Pass Signal
- Overload protection prevents repeated thermal overrun or tooth overload during the defined duty.
Life-cycle validation
- Buyer Question
- Does the sample survive the real high-load cycle, not only a bench torque check?
- Evidence to Prepare
- Cycle count, load profile, temperature range, inspection method, and allowed torque or noise drift.
- Pass Signal
- Gear wear, current drift, and output torque remain acceptable after the buyer duty cycle.
Selection-Ready Product Data
Build the Ratio Table Before Sample Approval
Public diameter pages are only the starting point. For RFQ review, sales engineering confirms rated voltage, no-load RPM, rated-load RPM, continuous output torque, stall torque, current, efficiency, and gear ratio against your mechanism before releasing drawings or sample pricing.
| Performance Field | Buyer Input | How It Shapes the Quote |
|---|---|---|
| Rated voltage and current limit | 3V, 6V, 12V, 24V, or buyer-defined driver limit | Selects the winding, thermal margin, stall-current boundary, and battery or adapter fit. |
| No-load speed and loaded output speed | Motor RPM, target output RPM, and acceptable speed tolerance | Narrows the gear ratio and keeps the prototype inside the required actuation time. |
| Continuous output torque and stall torque | Working torque, peak load, jam condition, and stall duration | Checks gear material, shaft support, carrier strength, and safety margin before sampling. |
| Gear ratio and efficiency target | Known ratio, output RPM target, or torque-speed curve from the mechanism | Builds the ratio table used to compare speed, torque, current, efficiency, and heat rise. |
| Duty cycle and life target | On/off sequence, cycles per day, lifetime cycles, ambient temperature | Defines grease, gear stack, winding temperature, brush life, and sample validation scope. |
| Noise and backlash limit | dB limit, measurement distance, arcmin or degree target, load fixture | Separates POM, hybrid, metal, and low-backlash options before the CAD exchange. |
Rated voltage and current limit
- Buyer Input
- 3V, 6V, 12V, 24V, or buyer-defined driver limit
- How It Shapes the Quote
- Selects the winding, thermal margin, stall-current boundary, and battery or adapter fit.
No-load speed and loaded output speed
- Buyer Input
- Motor RPM, target output RPM, and acceptable speed tolerance
- How It Shapes the Quote
- Narrows the gear ratio and keeps the prototype inside the required actuation time.
Continuous output torque and stall torque
- Buyer Input
- Working torque, peak load, jam condition, and stall duration
- How It Shapes the Quote
- Checks gear material, shaft support, carrier strength, and safety margin before sampling.
Gear ratio and efficiency target
- Buyer Input
- Known ratio, output RPM target, or torque-speed curve from the mechanism
- How It Shapes the Quote
- Builds the ratio table used to compare speed, torque, current, efficiency, and heat rise.
Duty cycle and life target
- Buyer Input
- On/off sequence, cycles per day, lifetime cycles, ambient temperature
- How It Shapes the Quote
- Defines grease, gear stack, winding temperature, brush life, and sample validation scope.
Noise and backlash limit
- Buyer Input
- dB limit, measurement distance, arcmin or degree target, load fixture
- How It Shapes the Quote
- Separates POM, hybrid, metal, and low-backlash options before the CAD exchange.
Customization Options
Match the Motor to the Mechanical Boundary
The useful custom scope is normally around the shaft, gearbox stack, feedback, cable exit, connector, and buyer file package. These options should be fixed before tooling, CAD exchange, or pilot builds.
| Custom Area | Common Options | RFQ Signal |
|---|---|---|
| Output shaft and mounting | D-cut, flat, threaded, cross-drilled, keyway, custom length, flange, bearing support. | Attach shaft datum, mating part drawing, radial/axial load direction, and installation sequence. |
| Gear material and backlash | POM, MIM, machined metal, hybrid stages, grease selection, low-backlash build review. | State torque peaks, reversing frequency, noise target, temperature, and life requirement. |
| Feedback and control | Encoder, Hall signal, EMI suppression, pinout, driver match, current-limit review. | Share CPR, signal voltage, controller type, cable route, connector drawing, and EOL test needs. |
| Cable, connector, and assembly | Lead wire length, connector model, cable exit, strain relief, bracket, harness, module assembly. | Include enclosure envelope, bend radius, pull-force concern, label rules, and packing notes. |
| Compliance and buyer file | RoHS/REACH file, material note, drawing revision, sample test report, lot traceability. | Confirm destination, regulated-market expectations, incoming inspection plan, and annual volume. |
Output shaft and mounting
- Common Options
- D-cut, flat, threaded, cross-drilled, keyway, custom length, flange, bearing support.
- RFQ Signal
- Attach shaft datum, mating part drawing, radial/axial load direction, and installation sequence.
Gear material and backlash
- Common Options
- POM, MIM, machined metal, hybrid stages, grease selection, low-backlash build review.
- RFQ Signal
- State torque peaks, reversing frequency, noise target, temperature, and life requirement.
Feedback and control
- Common Options
- Encoder, Hall signal, EMI suppression, pinout, driver match, current-limit review.
- RFQ Signal
- Share CPR, signal voltage, controller type, cable route, connector drawing, and EOL test needs.
Cable, connector, and assembly
- Common Options
- Lead wire length, connector model, cable exit, strain relief, bracket, harness, module assembly.
- RFQ Signal
- Include enclosure envelope, bend radius, pull-force concern, label rules, and packing notes.
Compliance and buyer file
- Common Options
- RoHS/REACH file, material note, drawing revision, sample test report, lot traceability.
- RFQ Signal
- Confirm destination, regulated-market expectations, incoming inspection plan, and annual volume.
Evidence Pack Before Sampling
Evidence Pack to Request Before Sampling
These files are normally reviewed by request rather than downloaded instantly. Confirm the scope early so drawings, sample data, quality records, and production notes match the same motor revision.
| Evidence Item | What to Request | Why It Matters | Route |
|---|---|---|---|
| CAD / STEP baseline | Outer diameter, length, shaft geometry, flange datum, connector clearance, and mating-part constraints. | Prevents a mechanically suitable motor from failing because of envelope, shaft, or mounting mismatch. | CAD request |
| Torque-speed-current window | Rated voltage, no-load speed, rated-load speed, continuous torque, stall torque, current limit, and duty cycle. | Separates reference catalog windows from the sample value set that purchasing and engineering can approve. | RFQ template |
| Inspection and test evidence | Dimensional CTQ, gear ratio check, no-load current, load test, noise/backlash method, and final inspection record. | Lets the buyer define what must be proven before incoming inspection, pilot build, or supplier approval. | Quality review |
| Gear material and backlash route | POM, hybrid, or metal stage choice, grease condition, reversing motion, temperature, shock load, and noise target. | Aligns durability, acoustic behavior, backlash, cost, and life expectation before the sample BOM is frozen. | Material guide |
| OEM handoff package | Drawing revision, cable/connector rules, label and packing notes, destination, compliance file needs, and annual volume. | Turns a selected sample into a production-ready supplier package with fewer revision loops. | OEM workflow |
CAD / STEP baseline
- What to Request
- Outer diameter, length, shaft geometry, flange datum, connector clearance, and mating-part constraints.
- Why It Matters
- Prevents a mechanically suitable motor from failing because of envelope, shaft, or mounting mismatch.
- Route
- CAD request
Torque-speed-current window
- What to Request
- Rated voltage, no-load speed, rated-load speed, continuous torque, stall torque, current limit, and duty cycle.
- Why It Matters
- Separates reference catalog windows from the sample value set that purchasing and engineering can approve.
- Route
- RFQ template
Inspection and test evidence
- What to Request
- Dimensional CTQ, gear ratio check, no-load current, load test, noise/backlash method, and final inspection record.
- Why It Matters
- Lets the buyer define what must be proven before incoming inspection, pilot build, or supplier approval.
- Route
- Quality review
Gear material and backlash route
- What to Request
- POM, hybrid, or metal stage choice, grease condition, reversing motion, temperature, shock load, and noise target.
- Why It Matters
- Aligns durability, acoustic behavior, backlash, cost, and life expectation before the sample BOM is frozen.
- Route
- Material guide
OEM handoff package
- What to Request
- Drawing revision, cable/connector rules, label and packing notes, destination, compliance file needs, and annual volume.
- Why It Matters
- Turns a selected sample into a production-ready supplier package with fewer revision loops.
- Route
- OEM workflow
Gear Material Review
Confirm POM, Hybrid, or Metal Stages Before Prototype Approval
Use the material guide to align noise, torque density, stall load, wear, grease, and backlash expectations before the sample BOM is frozen.
CAD / STEP Request
Request Outline Drawings Before You Freeze the Mechanical Design
Share the mating envelope and target duty data so sales engineering can confirm whether an existing outline drawing, STEP/IGES file, or custom shaft and flange proposal is suitable for your project.
1
Installation envelope, mounting pattern, shaft interface, and cable exit.
2
Voltage, loaded speed, torque, gear ratio, duty cycle, noise, and backlash limits.
3
Preferred CAD format, drawing revision, prototype quantity, destination, and compliance notes.
Fields engineering checks before sharing a model
- Product fit
- Diameter, gearbox length, motor family, shaft style, flange pattern, and cable or connector exit.
- Performance target
- Voltage, loaded speed, continuous torque, peak or stall torque, ratio, duty cycle, life, noise, and backlash.
- Mechanical interface
- Mating drawing revision, installation clearance, radial or axial load, tolerance priority, and assembly sequence.
- Release package
- 2D outline, STEP/IGES envelope, custom shaft/flange review, datasheet values, and quality evidence scope.
Useful before CAD freeze
CAD files are shared by project fit and revision status. For custom shafts, flanges, cable routing, or gearbox interfaces, attach the mating drawing so the first CAD exchange uses the correct mechanical boundary.
RFQ Checklist
- Required stall torque
- Shock load conditions
- Output shaft mounting method
- Continuous torque and allowed temperature rise
- Jam/end-stop frequency and controller current limit
- Radial and axial load on the output shaft
Risk Controls
- Gear tooth shearing: Powder metallurgy or CNC-hobbed steel gear routes are selected by frame size, load, and target tooth strength.
- Thermal overrun during long duty cycles: We size the motor, winding, ratio, and current limit against continuous torque, not peak torque alone.
- Shaft or carrier failure from off-axis loading: Output geometry, bearing stack, and mounting method are checked against radial and axial loads.
- Peak torque is mistaken for usable continuous torque: Selection compares load duration, thermal rise, gear wear, current limit, and post-stall recovery instead of quoting stall torque alone.
Product Gallery
Buyer FAQ
Are all stages made of metal?
All-metal gear trains can be specified when the duty cycle, shock load, and noise trade-offs justify them.
Should we specify stall torque or continuous torque?
Specify both. Stall torque protects against jams, while continuous torque determines heat, efficiency, and long-term gear wear.
Can high torque motors still meet a noise limit?
They can be optimized, but full-metal high-torque gear trains are usually louder than hybrid low-noise designs.
What overload data should we provide?
Provide normal load, peak load, stall torque, allowed stall time, jam frequency, shaft lever arm, current limit, and whether the controller can cut or reverse power.
Related Resources
Product Qualification Review
Ready for a Product-Specific OEM Review?
Send the target size, voltage, torque, speed, ratio, quantity, drawing status, and validation concerns. Sales engineering can then confirm whether this product family is the right starting point or whether another frame, gear material, or OEM assembly route is safer.
WhatsApp: WhatsApp Engineering Support. Email: [email protected].
Inquiry Email
Include OD/length, voltage, torque, loaded speed, ratio, drawings, quantity, and destination.
Instant Chat
WhatsApp Engineering Support
Fast channel for clarifying specs, drawings, and sample timing.
