Select compact actuator scenarios to review recommended motor and gearbox architectures, capability fit, and OEM support direction.
Each solution page is written for buyer-side decisions: what to validate first, where project risk usually appears, and what data should be included in the initial RFQ to avoid quote loops.
Application-to-Product Routing
Buyers often know the application before they know the motor diameter. This matrix translates each use case into a solution page, first product family, diameter review window, validation priority, and RFQ evidence list.
| Application | Solution Route | First Product Path | Diameter Review | Validation Priority | RFQ Inputs |
|---|---|---|---|---|---|
| Robotics, AGV, and auxiliary motion axes | Robotics & AGV | High-torque miniature gear motors | 16mm/22mm for compact axes; 36mm/42mm for heavier drive modules | Torque reserve, backlash, shock load, radial load, feedback, and thermal duty | Payload, wheel or joint load, ramp angle, speed target, duty cycle, feedback, and flange drawing |
| Medical handhelds, pumps, and patient-adjacent instruments | Medical Devices | Low-noise micro planetary motors | 6mm/8mm/10mm compact low-noise and coreless platforms | Acoustic comfort, traceability, current limit, thermal rise, and material-file scope | Noise limit and method, duty cycle, life target, enclosure condition, current limit, and sample report needs |
| Smart locks, curtains, vending releases, and access modules | Smart Lock & Smart Home Actuators | Micro DC planetary gear motor | 10mm/12mm N20/N30 plus 6mm-16mm compact OD review | Latch force, self-lock behavior, battery current, cable exit, cycle life, and noise | Load curve, travel angle or stroke, actuation time, battery voltage, shaft drawing, connector, and annual volume |
| Smart valves, dampers, shutoff modules, and flow control | Valve Actuators | Metal gear micro planetary drives | 10mm/12mm for light valves; 16mm/22mm for breakaway torque | Aged-valve torque, open/close time, hard end stops, sealing, stall current, and feedback | Breakaway and running torque, travel angle, voltage window, IP target, current limit, shaft interface, and life cycles |
| Optics, camera positioning, filter wheels, and lab instruments | Optical Instruments | Encoder micro planetary gear motor | 6mm/10mm/12mm low-backlash and feedback-ready platforms | Backlash, repeatability, low vibration, feedback resolution, cable routing, and connector space | Positioning resolution, backlash target, output RPM, control method, shaft/flange drawing, and noise limit |
| Industrial automation, pumps, dispensers, fixtures, and meters | Industrial Automation | 10mm-42mm durable planetary drives | 10mm/12mm for compact modules; 16mm/22mm/36mm/42mm as torque rises | Repeatable torque, duty cycle, thermal rise, jam protection, cable control, and EOL limits | Load curve, output RPM, duty cycle, thermal target, jam condition, OQC criteria, connector drawing, and annual forecast |

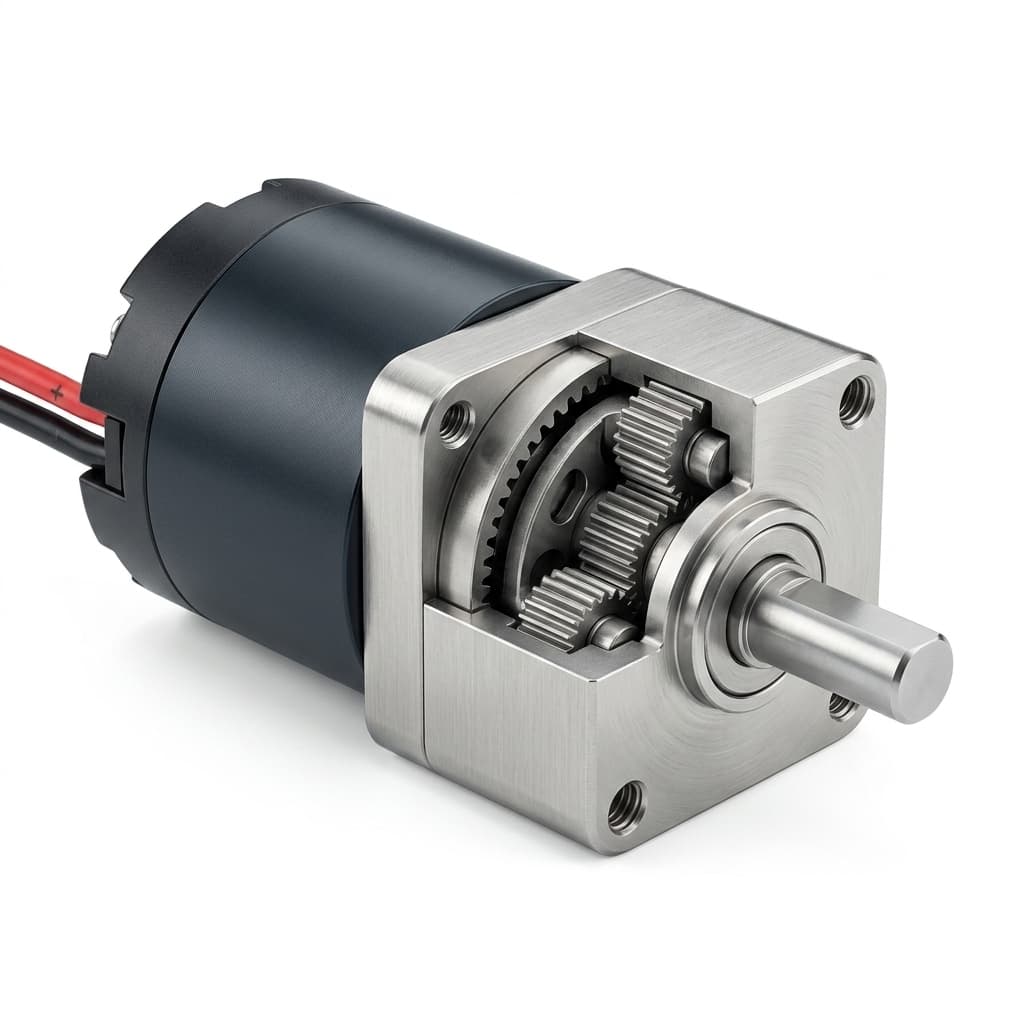

High-torque, low-backlash metal planetary gear motors for AGV/AMR drive wheels, service robot joints, robot vacuum chassis lift modules, inspection crawlers, and compact UAV or small robotic actuators.
For robotics engineers, startups, and system integrators comparing torque density, backlash, shock load, feedback, shaft support, mounting geometry, and battery efficiency before prototype builds.

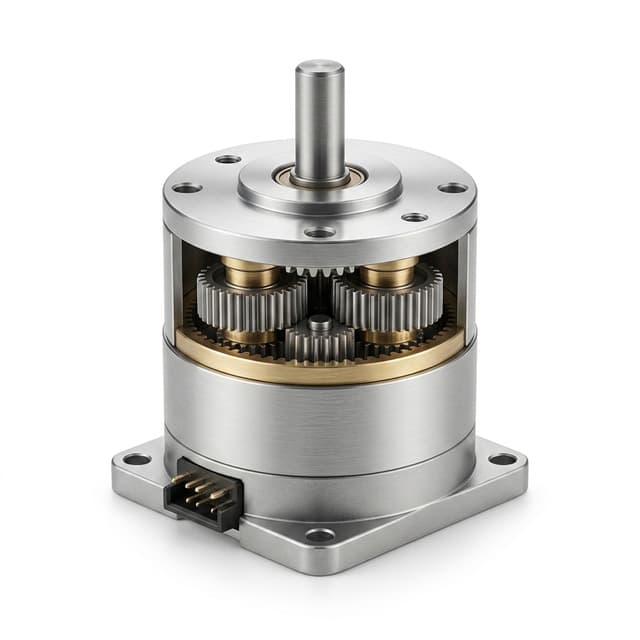

Low-noise micro planetary gear motors for portable pumps, handheld instruments, and patient-adjacent diagnostic equipment where acoustic comfort, traceability, and validation data matter before design freeze.
For medical device engineering teams that need quiet, traceable drive samples and buyer-defined validation evidence before design freeze.
12mm/N20 and compact micro planetary gear motor assemblies for smart door locks, electric curtains, vending release modules, and building automation mechanisms.
For smart home, access-control, and building automation OEMs designing compact electromechanical latch, curtain, and release modules.
High-ratio 16mm and 22mm micro planetary gear motors for compact electric valves, smart shutoff modules, metering valves, and flow-control actuators that need repeatable torque after long idle periods.
For fluid-control OEMs and smart home automation teams that need compact torque multiplication, sealed actuator packaging, and repeatable open/close behavior across prototype and production lots.
Low-backlash 6mm, 10mm, and 12mm micro planetary gear motors with encoder, Hall, indexed-drive, and low-noise options for lens focus, filter wheels, aperture modules, camera positioning, surveying instruments, and compact lab optics.
For optical and instrument OEMs that need repeatable small-angle motion, quiet operation, compact length, and feedback-ready cable integration rather than catalog peak torque alone.
Durable 10mm, 12mm, 16mm, 22mm, 36mm, and 42mm micro planetary gear motors for compact industrial automation modules, smart meters, metering pumps, dispensers, fixtures, and enclosed 12V/24V OEM equipment.
For industrial equipment designers and automation OEMs who need repeatable torque, controlled speed, serviceable wiring, and production validation inside compact equipment envelopes.
| Solution | Primary Buyer Focus | Key Metric | Why It Matters |
|---|---|---|---|
| Robotics & AGV | For robotics engineers, startups, and system integrators comparing torque density, backlash, shock load, feedback, shaft support, mounting geometry, and battery efficiency before prototype builds. | Torque Density: 16/22mm for mid-load modules; 36/42mm BLDC candidates for heavy drive axes | Helps select a motor frame that fits compact robot spaces without losing start torque or continuous torque margin. |
| Medical Devices | For medical device engineering teams that need quiet, traceable drive samples and buyer-defined validation evidence before design freeze. | Acoustic Noise: <45dB at 30cm | Patient-adjacent equipment needs quiet actuation under a defined fixture, load, distance, and background-noise condition. |
| Smart Lock & Smart Home Actuators | For smart home, access-control, and building automation OEMs designing compact electromechanical latch, curtain, and release modules. | Frame Size: 10mm/12mm N20/N30 plus 6mm-16mm compact OD | Smart locks and home automation modules leave little space for motor length, cable bend radius, and gearbox diameter. |
| Valve Actuators | For fluid-control OEMs and smart home automation teams that need compact torque multiplication, sealed actuator packaging, and repeatable open/close behavior across prototype and production lots. | Breakaway Torque Margin: Aged-valve torque plus buyer-defined reserve | Valve friction rises after contamination, pressure load, scale buildup, or long idle periods, so catalog no-load torque is not enough. |
| Optical Instruments | For optical and instrument OEMs that need repeatable small-angle motion, quiet operation, compact length, and feedback-ready cable integration rather than catalog peak torque alone. | Backlash and Lost Motion: Project-defined arcmin target | Defines acceptable position error after reversal before selecting gear ratio, gear material, preload, and measurement method. |
| Industrial Automation | For industrial equipment designers and automation OEMs who need repeatable torque, controlled speed, serviceable wiring, and production validation inside compact equipment envelopes. | Frame and Torque Class: 10/12mm to 36/42mm | Small frames fit meters and compact dispensers, while 16mm, 22mm, 36mm, and 42mm motors provide more torque margin for industrial axes. |
Inquiry Email
Include OD/length, voltage, torque, loaded speed, ratio, drawings, quantity, and destination.
