Manufacturing-side engineering and supply coordination designed for global OEM projects, from prototype validation to repeat production.
This section is organized around the buyer journey: requirement closure, sample evidence, process quality, and global delivery execution. Each topic includes practical control points for RFQ and PO governance.
OEM buyers usually arrive with a drawing, load target, prototype deadline, or supplier replacement problem. The practical path is to connect DFM, DFMEA direction, sample validation, pilot controls, and export handoff into one auditable chain.
Engineering Inputs
Drawing revision, CAD/STEP envelope, load profile, voltage, target output speed, torque, duty cycle, and acceptance limits.
Buyer-visible Outputs
Sample configuration, risk notes, validation summary, inspection scope, packing file, and revision-controlled repeat supply.
Use this path to decide what the buyer should provide and what the factory should return before moving from prototype to repeat supply.
| Stage | Buyer Input | Factory Output | Decision Gate |
|---|---|---|---|
| Requirement and Feasibility Review | Envelope, voltage, output RPM, torque, duty cycle, noise, backlash, load direction, target volume, and drawing revision. | Platform shortlist, gearbox route, open risk list, and sample feasibility notes. | Move forward when the buyer and factory agree on the target motor family and unresolved technical assumptions. |
| DFM / DFMEA Direction | Mating CAD, shaft load, flange limits, cable exit, connector preference, gear material preference, and expected failure modes. | Custom shaft/flange route, gear material direction, ratio split, sample BOM baseline, and design-risk notes. | Move forward when mechanical interface, material tradeoffs, and validation concerns are clear enough for sample quotation. |
| Engineering Samples and Validation | Sample quantity, acceptance limits, load fixture, torque-speed points, noise/backlash targets, temperature profile, and reporting format. | Sample build, dimensional notes, torque-speed/current/noise/backlash checks, and approval comments by agreed scope. | Move forward when sample data and buyer comments support design freeze or a controlled revision loop. |
| Pilot Production / Process Review | Critical-to-quality list, end-of-line limits, packaging rules, lot labels, incoming inspection needs, and buyer document requests. | Pilot inspection record, fixture notes, OQC criteria, PFMEA/APQP/PPAP-style evidence scope when requested. | Move forward when production checks describe the same configuration approved during sample validation. |
| Repeat Export Supply | Forecast, PO cadence, destination, Incoterms, compliance documents, revision control expectations, and change-notice rules. | Frozen BOM and drawing revision, OQC summary, packing list, lot traceability, shipment file, and change-control path. | Move forward when procurement, quality, and logistics can receive repeat lots without revalidating unclear assumptions. |
The customization menu below keeps interface, performance, validation, and export questions connected to the most relevant engineering page.
| Custom Area | Review Focus | Related Page |
|---|---|---|
| Shaft and Flange Interface | D-cut, flat, thread, knurl, cross-hole, lead screw, mounting flange, datum, concentricity, radial load, and axial load. | Custom Shaft & Flange |
| Gear Ratio and Material | Ratio split, torque reserve, efficiency loss, backlash stack-up, POM vs PM vs steel gears, grease, and life target. | Precision Gear Machining |
| Motor, Voltage, and Feedback | DC or BLDC motor match, winding, voltage, current ceiling, Hall sensor, encoder, controller limits, and target speed curve. | Product Families |
| Cable, Connector, and Harness | Cable length, exit direction, connector model, strain relief, pinout, solder joint control, label, and assembly clearance. | Interface Review |
| Testing and Validation | Torque-speed map, current, noise, backlash, temperature rise, life-test profile, sample report, and EOL control limits. | Testing & Validation |
| Export Documents and Packaging | RoHS, REACH, applicable CE file support, lot labels, carton rules, pallet plan, Incoterms, and buyer receiving needs. | Export & Logistics |
The buyer-side challenge is not only finding a compact gear motor. It is proving that the approved sample, drawing, validation evidence, process controls, and repeat export shipment all describe the same product.
Custom shaft, flange, cable, connector, encoder, and gearbox changes are kept tied to the approved drawing revision instead of treated as informal sample notes.
Engineering samples should produce measurable speed, current, noise, backlash, temperature, and load evidence before pilot or annual-volume sourcing decisions.
Procurement teams can align lead time, packaging, labels, lot traceability, and document scope before moving from pilot build to repeat purchase orders.
Use these gates to align technical decisions, quality files, and procurement expectations before annual-volume release.
WhatsApp: +86 18857971991
| Gate | Owner | Control | Buyer-visible Output |
|---|---|---|---|
| Requirement Baseline | Buyer engineering and factory engineering | Confirm envelope, voltage, output RPM, torque, duty cycle, noise, backlash, load direction, drawing revision, and annual quantity target. | RFQ clarification list, recommended motor family, gearbox route, and open technical risks. |
| Prototype Configuration | Factory engineering | Select gear ratio, winding, gear material, shaft, flange, harness, connector, encoder, Hall sensor, and lubrication direction. | Sample BOM baseline, interface notes, target test conditions, and expected prototype lead time. |
| Validation Package | Buyer validation and factory quality | Measure no-load speed/current, loaded behavior, temperature rise, noise, backlash, stall response, feedback signal, and dimensional fit. | Sample test summary, inspection notes, fixture assumptions, and acceptance comments. |
| Pilot and Process Controls | Factory production and quality | Translate CTQ items into assembly checkpoints, EOL limits, fixture notes, packing rules, and change-control expectations. | Pilot inspection record, PFMEA/APQP-style risk list, PPAP scope when requested, and outgoing quality criteria. |
| Repeat Export Supply | Procurement, factory planning, and quality | Keep BOM, drawing revision, material, grease, wire, connector, labels, packing, lot traceability, and shipment timing aligned to the approved sample. | OQC summary, lot labels, export document package, shipment plan, and change-notice process. |
Evidence scope should be agreed before quotation so sample lead time, inspection work, document ownership, and compliance expectations are realistic.
| Buyer File | When It Matters | Buyer Provides | Next Step |
|---|---|---|---|
| RFQ Baseline | Before sample quotation, especially when envelope, torque, duty cycle, or revision history is not yet frozen. | 2D drawing, CAD/STEP envelope, load profile, speed/torque target, annual volume, and preferred product family. | Request CAD / STEP |
| Sample Validation Pack | Before pilot release or when engineering, procurement, and quality need shared evidence for the same sample. | Sample quantity, acceptance limits, fixture assumptions, reporting format, and pass/fail criteria. | Plan Validation |
| Quality Gate Scope | Before annual-volume PO approval or whenever PPAP/APQP/PFMEA-style evidence is requested. | Critical-to-quality list, inspection needs, certificate list, incoming inspection format, and audit expectations. | Review Quality Gates |
| Export Handoff File | Before repeat shipments to overseas plants, distributors, contract manufacturers, or buyer warehouses. | Destination, Incoterms, forwarder preference, packing label fields, compliance needs, and receiving constraints. | Plan Export Supply |

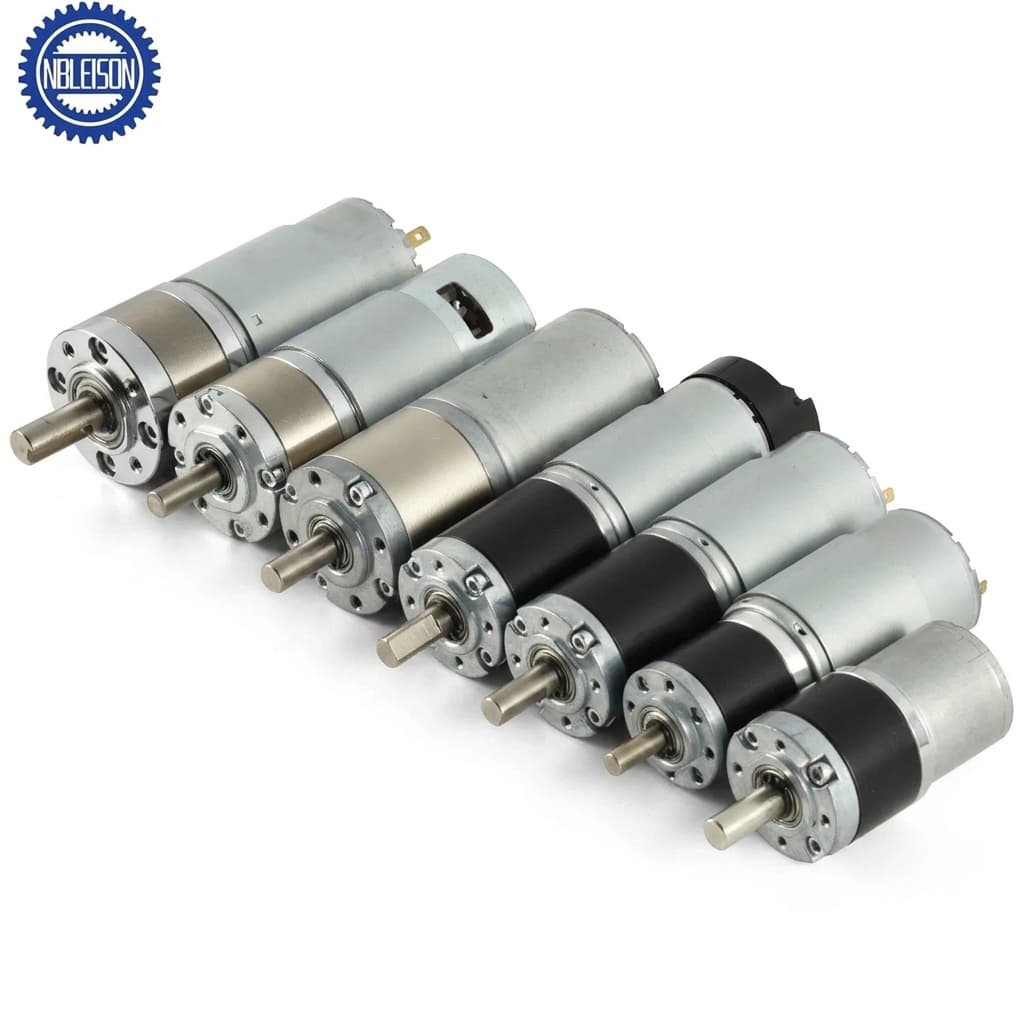

Gear hobbing, powder metallurgy sourcing, plastic molding, ratio architecture review, and first-article inspection support for custom micro planetary gearbox programs that need controlled noise, backlash, durability, and repeatability.
Ideal for OEMs needing custom torque/speed ratios, controlled backlash, material tradeoffs, or gearbox-only integration.

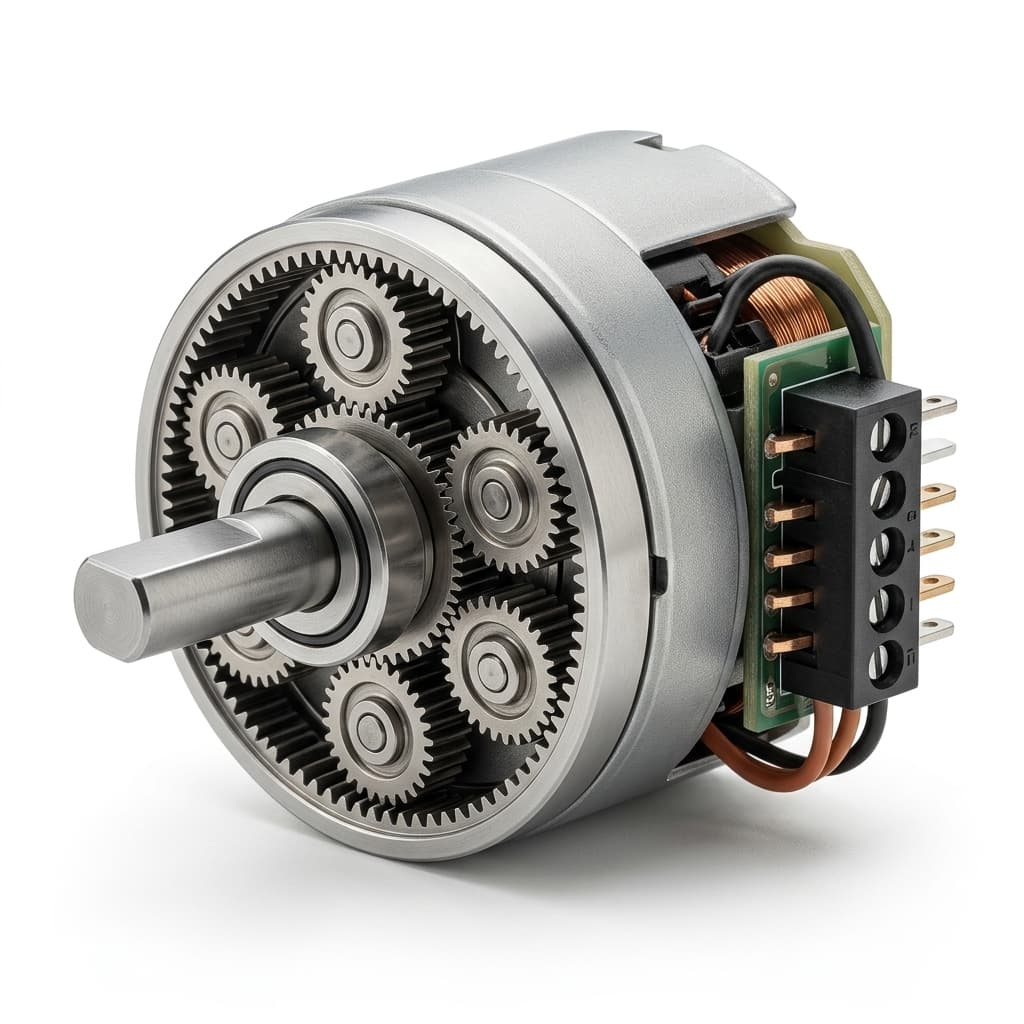

Custom shaft, flange, pilot, bracket, lead screw, and cable-exit interface engineering for OEM teams that need a micro planetary motor to drop into a defined housing without late-stage fit, runout, or service-access problems.
For mechanical engineers solving integration challenges where the motor drawing must match mating parts, screw access, cable routing, torque transfer, and incoming inspection requirements.

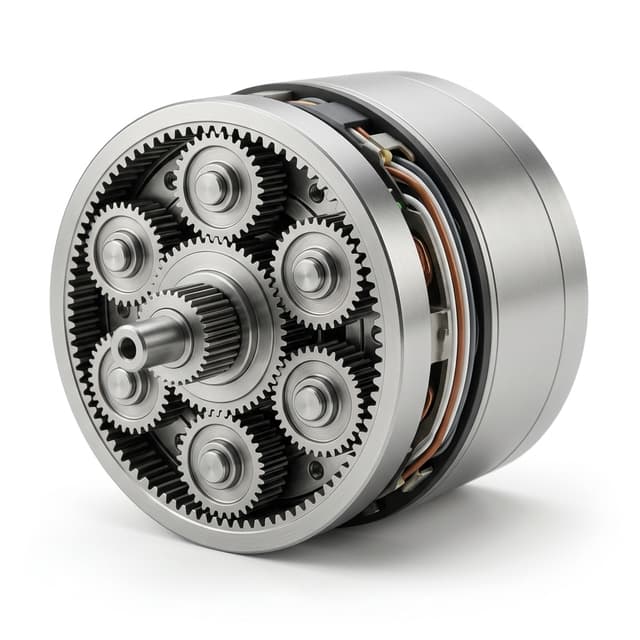

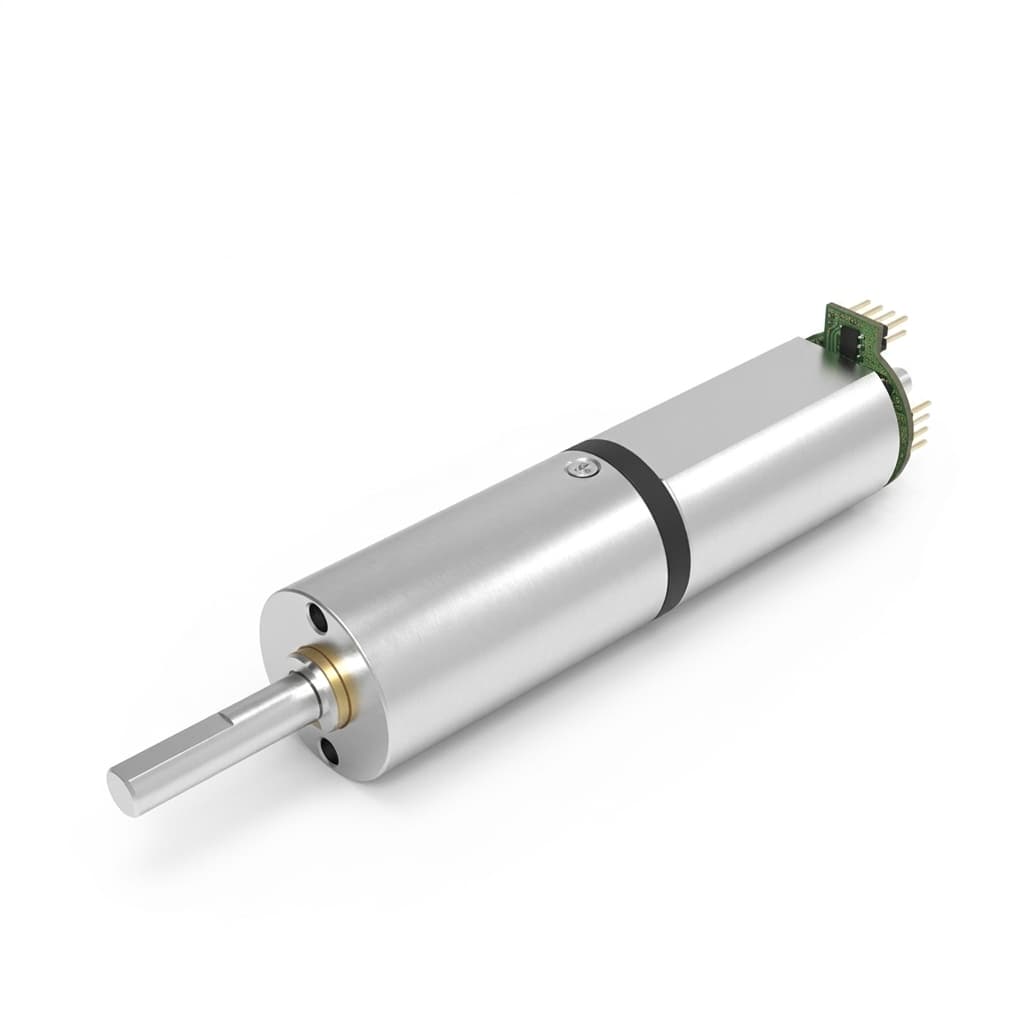

Project-specific micro planetary motor validation support covering torque-speed maps, current limits, noise, backlash, temperature rise, life-test planning, and production end-of-line criteria for OEM qualification.
For quality, compliance, engineering, and sourcing teams that need sample evidence, measurable acceptance limits, and repeatable EOL controls before committing to production supply.

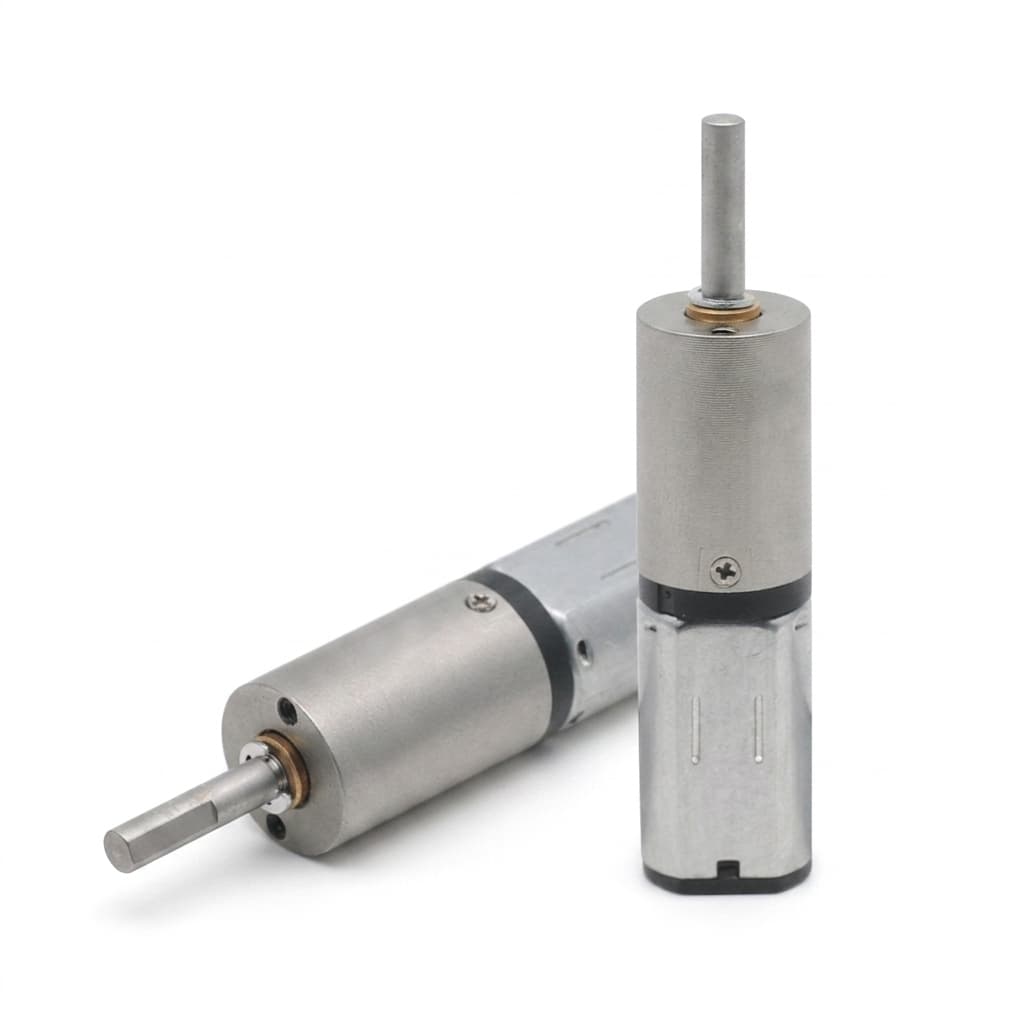

International delivery coordination for precision micro planetary motor shipments, covering export packaging, compliance file scope, Incoterms, lot labels, revision traceability, customs documents, and buyer receiving requirements.
For procurement and supply chain managers.
| Capability | Primary Buyer Focus | Key Metric | Why It Matters |
|---|---|---|---|
| Precision Gear Machining | Ideal for OEMs needing custom torque/speed ratios, controlled backlash, material tradeoffs, or gearbox-only integration. | Gear Ratio Range: 3:1 to 1000:1 | Enables precise matching of motor speed to application needs. |
| Custom Shaft & Flange Design | For mechanical engineers solving integration challenges where the motor drawing must match mating parts, screw access, cable routing, torque transfer, and incoming inspection requirements. | Shaft Runout: <0.02mm | Important for controlling vibration and runout at high speeds. |
| Testing & Validation Support | For quality, compliance, engineering, and sourcing teams that need sample evidence, measurable acceptance limits, and repeatable EOL controls before committing to production supply. | Test Data Points: Torque-speed points by test plan | Checks the selected configuration against agreed load points. |
| Export Compliance & Global Logistics | For procurement and supply chain managers. | Export Document Set: Project-specific file package | Keeps packing, customs, material, and compliance expectations aligned before shipment. |
Inquiry Email
Include OD/length, voltage, torque, loaded speed, ratio, drawings, quantity, and destination.
