← Back to Products

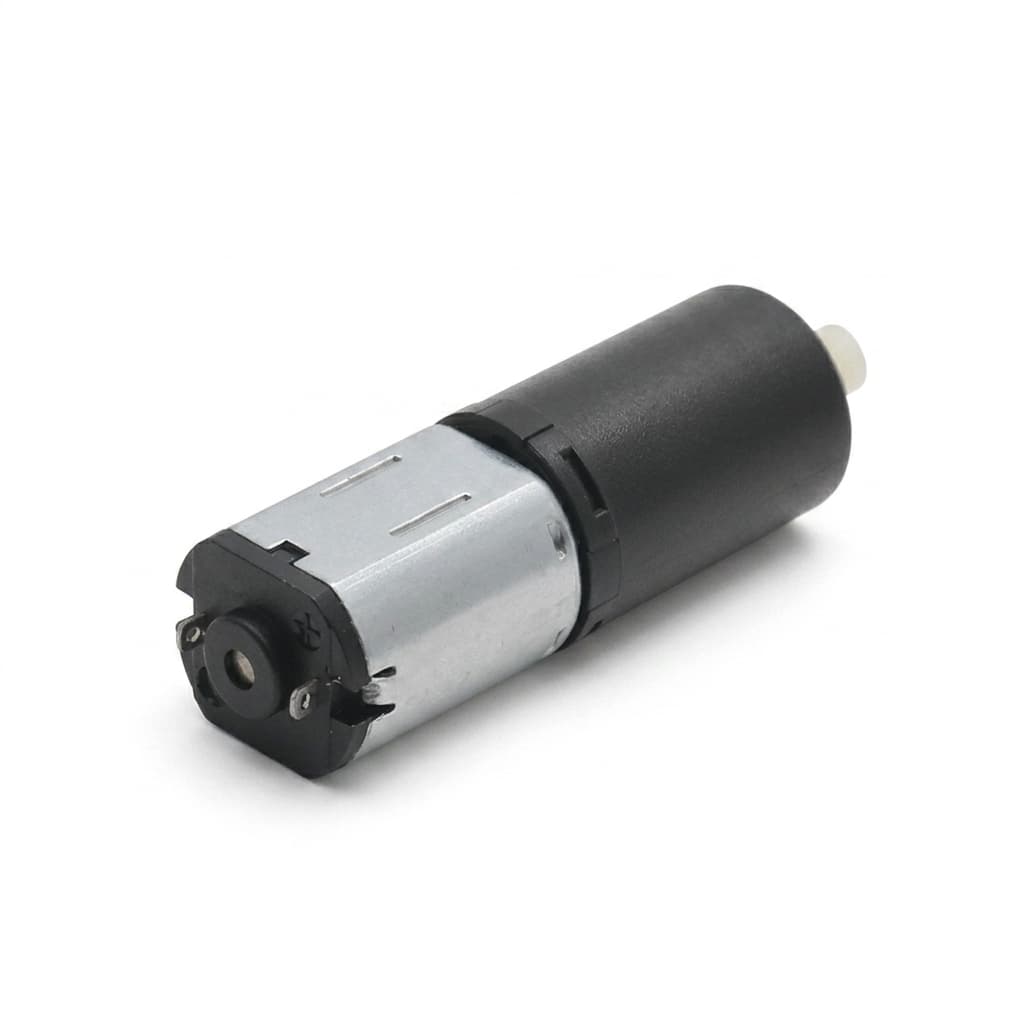

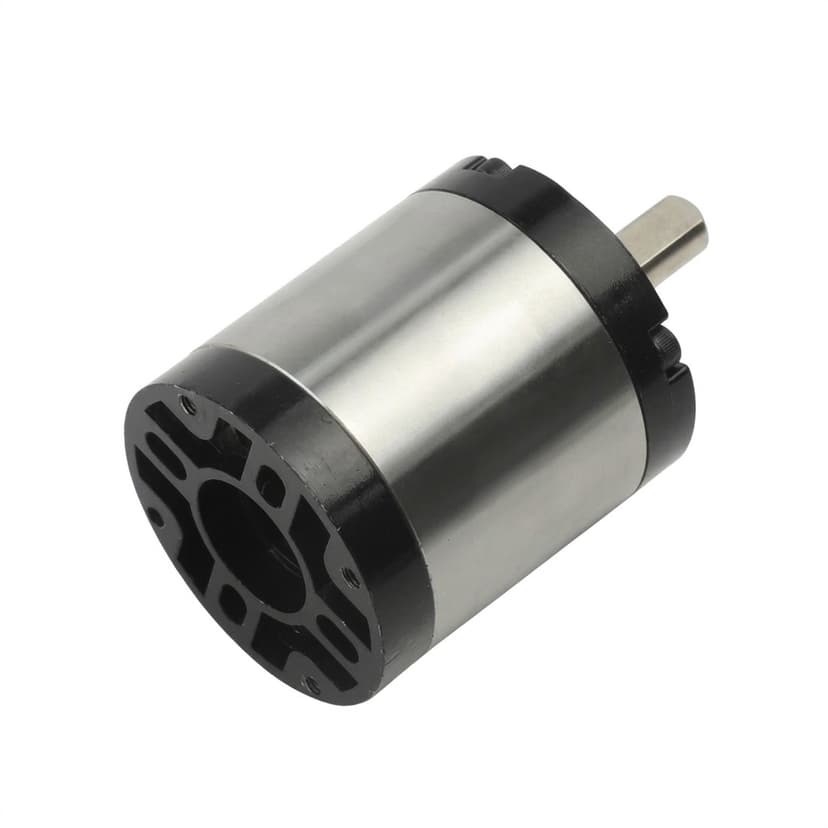

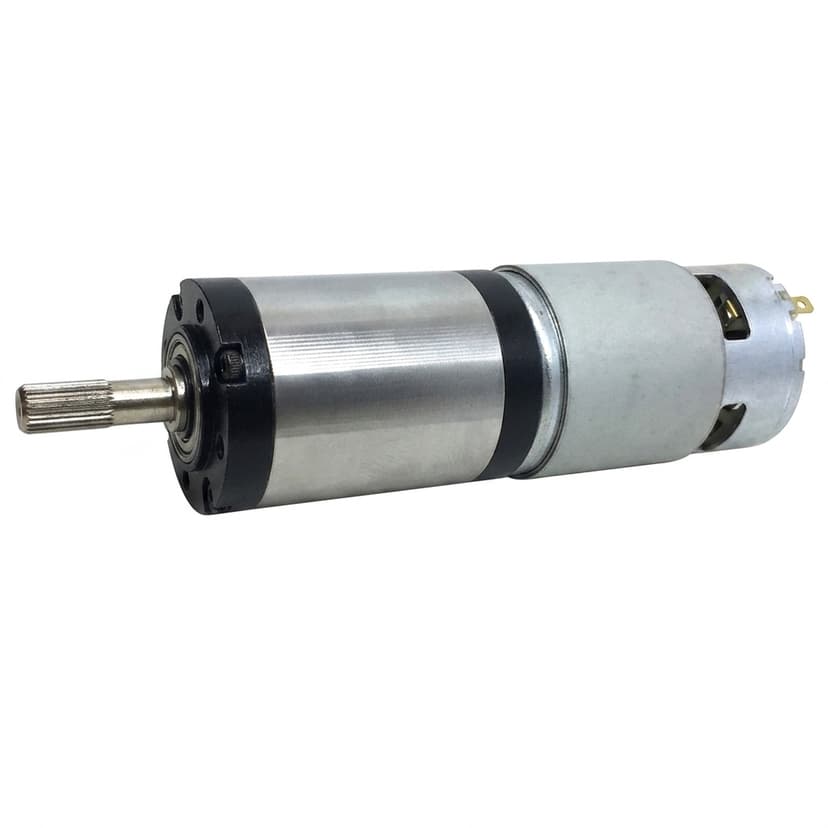

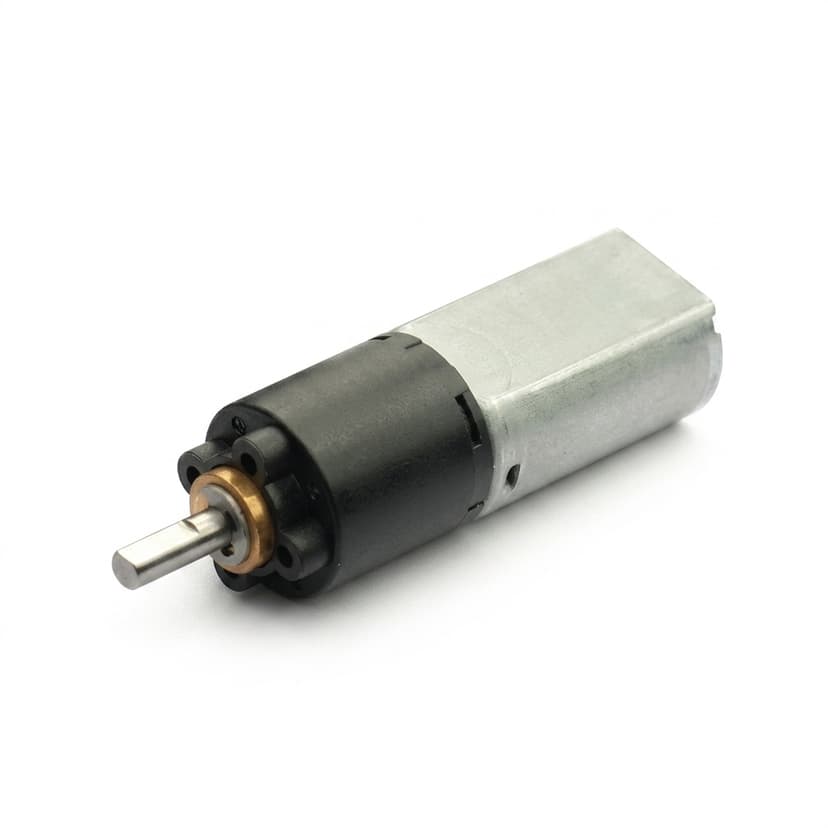

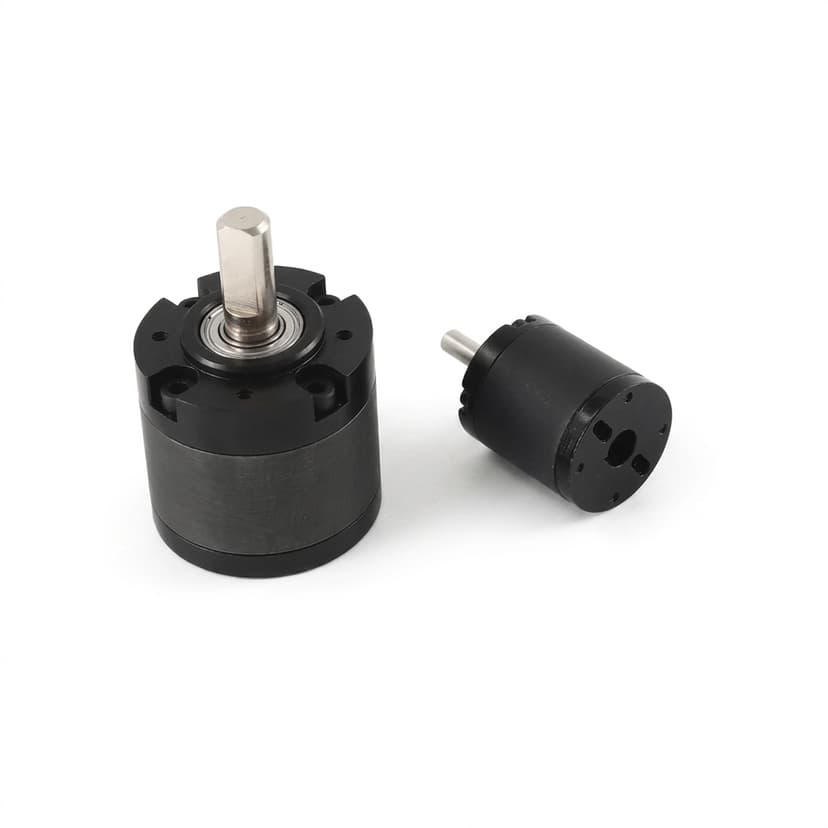

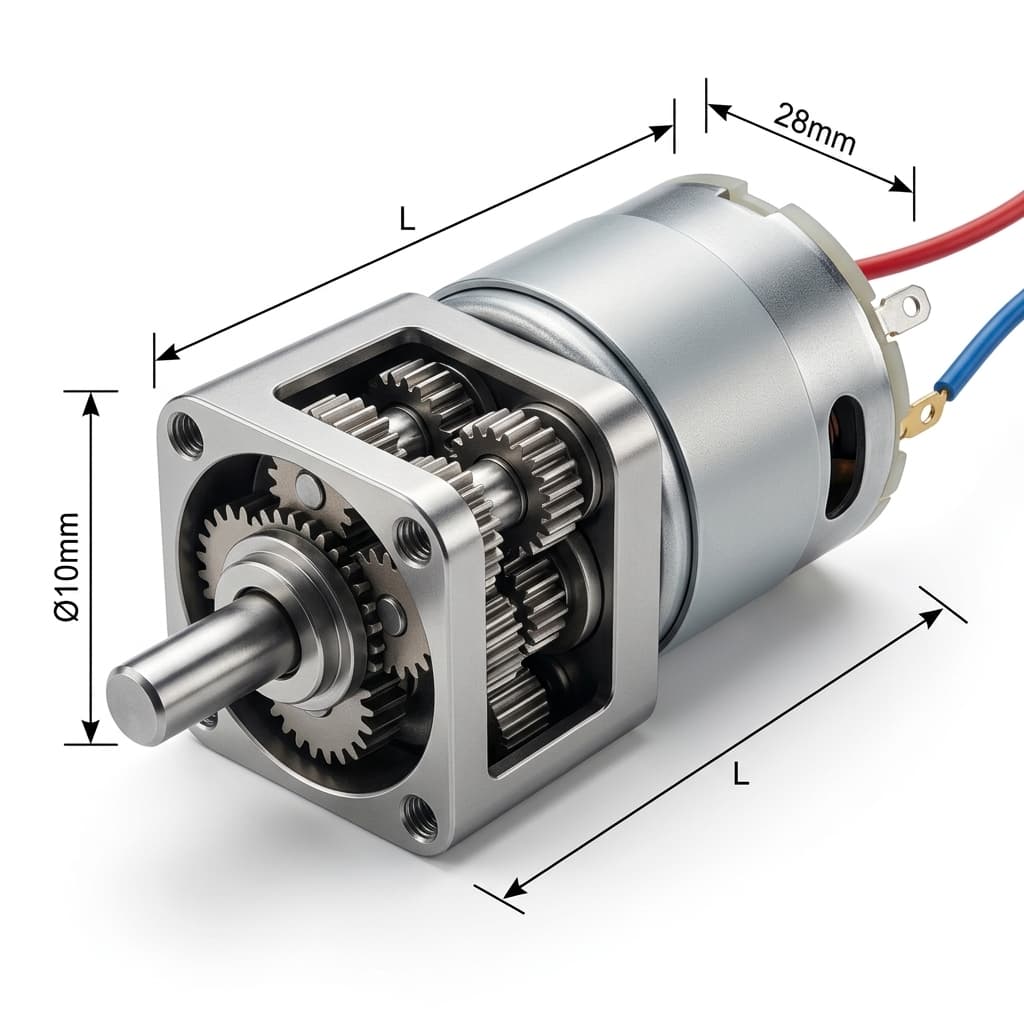

Micro BLDC Planetary Gear Motor
Long-life brushless DC planetary gear motors for OEM products that need continuous duty, electronic speed control, low electrical noise, and better service life than brushed DC platforms in the same compact envelope.
Target Buyer:Ideal for industrial, medical, and service devices where buyers need long duty cycles, predictable thermal behavior, and an agreed driver strategy before the mechanical package is released.
OEM pricing, sample terms, freight, and lead time are confirmed by RFQ after drawings, quantity, destination, and validation scope are reviewed.
Commercial Availability
RFQ Terms for Micro BLDC Planetary Gear Motor
Unit pricing, sample terms, freight, and lead time are confirmed by RFQ after drawings, quantity, destination, annual volume, and validation scope are reviewed.
| Field | Current Page Value | Buyer Use |
|---|---|---|
| Product code | MPM-MICRO-BLDC-PLANETARY-GEAR-MOTOR | Page-level product family identifier used to keep RFQ, drawing, sample, and quote communication aligned. |
| Commercial path | RFQ-based OEM quotation | No public checkout price is shown because winding, ratio, gear material, shaft, validation evidence, freight, and volume change the final unit cost. |
| Offer status | Platform-dependent availability | Standard micro planetary motor platforms are reviewed for custom sampling and production fit before quote confirmation. |
| Condition | New OEM components and assemblies | Samples and production lots are treated as new industrial components tied to the approved drawing revision and buyer file. |
| Valid from | August 5, 2026 | This page describes the current RFQ route; written quotations state their own price validity, incoterm, and lead-time assumptions. |
| Region | Worldwide RFQ support | Destination, compliance needs, packing notes, and shipping route are confirmed during quotation instead of embedded as a fixed retail shipping rate. |
| Quote currency | USD | Export quotations are usually discussed in USD unless a buyer requests another quotation currency. |
Commercial path
- Current Page Value
- RFQ-based OEM quotation
- Buyer Use
- No public checkout price is shown because winding, ratio, gear material, shaft, validation evidence, freight, and volume change the final unit cost.
Offer status
- Current Page Value
- Platform-dependent availability
- Buyer Use
- Standard micro planetary motor platforms are reviewed for custom sampling and production fit before quote confirmation.
Condition
- Current Page Value
- New OEM components and assemblies
- Buyer Use
- Samples and production lots are treated as new industrial components tied to the approved drawing revision and buyer file.
Valid from
- Current Page Value
- August 5, 2026
- Buyer Use
- This page describes the current RFQ route; written quotations state their own price validity, incoterm, and lead-time assumptions.
Region
- Current Page Value
- Worldwide RFQ support
- Buyer Use
- Destination, compliance needs, packing notes, and shipping route are confirmed during quotation instead of embedded as a fixed retail shipping rate.
Quote currency
- Current Page Value
- USD
- Buyer Use
- Export quotations are usually discussed in USD unless a buyer requests another quotation currency.
Architecture & Technical Overview
Capability Highlights
- Extended operating life (>10,000 hours)
- Low electrical noise (EMI)
- High efficiency
Typical Applications
- Medical Pumps
- Robotic Joints
- Industrial Automation
- Continuous-duty inspection devices
- Compact battery-powered equipment
Engineering Focus
- Driver integration (inner/outer driver)
- Thermal management under continuous load
- Bearing selection (ball bearing vs sleeve)
- Hall signal, commutation, and controller compatibility
- EMI control through harness routing and shielding
OEM Buyer Decision Path
Qualify the Product Across Engineering, Procurement, and QA
Product selection usually fails when only one team reviews the motor. Use this path to connect mechanical fit, quote scope, validation evidence, and production handoff before sample approval.
| Buyer Role | Decision Check | Page Evidence | Next Step |
|---|---|---|---|
| Design Engineering | Envelope, output speed, continuous torque, stall condition, backlash/noise limit, shaft datum, and cable route. | Performance window, engineering focus, customization map, CAD/STEP request path, and material review. | Request CAD / STEP |
| Procurement | Prototype quantity, annual volume, destination, sample timing, quote scope, and approved supplier workflow. | RFQ checklist, email template, WhatsApp handoff, and quote caveat before sample pricing. | Send RFQ |
| Quality | Incoming CTQ, drawing revision, torque-speed test condition, noise/backlash method, and lot traceability expectation. | Risk controls, validation scope, buyer file package, and quality evidence review path. | Review Quality |
| OEM Program | NPI stage, frozen BOM fields, custom tooling boundary, packing rules, revision control, and production handoff. | OEM customization options, supplier workflow, export coordination, and related application routing. | OEM Workflow |
Design Engineering
- Decision Check
- Envelope, output speed, continuous torque, stall condition, backlash/noise limit, shaft datum, and cable route.
- Page Evidence
- Performance window, engineering focus, customization map, CAD/STEP request path, and material review.
- Next Step
- Request CAD / STEP
Procurement
- Decision Check
- Prototype quantity, annual volume, destination, sample timing, quote scope, and approved supplier workflow.
- Page Evidence
- RFQ checklist, email template, WhatsApp handoff, and quote caveat before sample pricing.
- Next Step
- Send RFQ
Quality
- Decision Check
- Incoming CTQ, drawing revision, torque-speed test condition, noise/backlash method, and lot traceability expectation.
- Page Evidence
- Risk controls, validation scope, buyer file package, and quality evidence review path.
- Next Step
- Review Quality
OEM Program
- Decision Check
- NPI stage, frozen BOM fields, custom tooling boundary, packing rules, revision control, and production handoff.
- Page Evidence
- OEM customization options, supplier workflow, export coordination, and related application routing.
- Next Step
- OEM Workflow
Key Evaluation Matrix
| Metric | Typical Range | Why It Matters |
|---|---|---|
| Lifespan | 10,000+ hours | Important when maintenance access is limited in industrial or regulated device programs. |
| Maximum Speed | Up to 15,000 RPM (Motor) | Allows higher reduction ratios to be used while maintaining reasonable output speeds. |
| EMI Generation | Low with suitable driver and wiring | Important for RF-sensitive monitoring equipment and telemetry. |
Lifespan
- Typical Range
- 10,000+ hours
- Why It Matters
- Important when maintenance access is limited in industrial or regulated device programs.
Maximum Speed
- Typical Range
- Up to 15,000 RPM (Motor)
- Why It Matters
- Allows higher reduction ratios to be used while maintaining reasonable output speeds.
EMI Generation
- Typical Range
- Low with suitable driver and wiring
- Why It Matters
- Important for RF-sensitive monitoring equipment and telemetry.
Ratio & Performance Window
Reference Performance Table by Frame and Ratio
These RFQ reference windows translate the planning ranges into an engineering shortlist. Final datasheet values are confirmed by winding, ratio, gear material, load, duty cycle, current limit, and test condition before sample approval.
| Frame / OD | Rated Voltage | Ratio Range | No-load RPM | Rated-load RPM | Continuous Output Torque | Stall Torque | Efficiency | Application Fit |
|---|---|---|---|---|---|---|---|---|
| 10/12mm compact BLDC | 6-24V BLDC | 5:1-1000:1 | High-speed motor baseline; confirm Kv and driver | Driver-limited output RPM after load review | 100 g.cm-1.5 kg.cm reference window | Controller current limit defines peak event | Driver, ratio, and stage count dependent | Medical pumps, compact robots, instruments |
| 16/22mm continuous-duty BLDC | 12-24V BLDC | 4:1-1500:1 | Up to 15000 RPM motor reference by platform | Set by ESC, load, thermal rise, and ratio | 0.5-5.5 Nm reference window | Peak torque must be current and time limited | Higher than brushed route when duty cycle is high | Robotic joints, pumps, industrial axes |
| 36/42mm BLDC gearmotor | 24-48V BLDC | 3:1-512:1 | Motor speed selected from wheel or actuator target | Validated on continuous load and enclosure heat path | 9.3-35 Nm reference window | Driver protection and shaft support required | Best fit for sustained duty and battery runtime | AGV drive, mower drive, heavy automation |
10/12mm compact BLDC
- Rated Voltage
- 6-24V BLDC
- Ratio Range
- 5:1-1000:1
- No-load RPM
- High-speed motor baseline; confirm Kv and driver
- Rated-load RPM
- Driver-limited output RPM after load review
- Continuous Output Torque
- 100 g.cm-1.5 kg.cm reference window
- Stall Torque
- Controller current limit defines peak event
- Efficiency
- Driver, ratio, and stage count dependent
- Application Fit
- Medical pumps, compact robots, instruments
16/22mm continuous-duty BLDC
- Rated Voltage
- 12-24V BLDC
- Ratio Range
- 4:1-1500:1
- No-load RPM
- Up to 15000 RPM motor reference by platform
- Rated-load RPM
- Set by ESC, load, thermal rise, and ratio
- Continuous Output Torque
- 0.5-5.5 Nm reference window
- Stall Torque
- Peak torque must be current and time limited
- Efficiency
- Higher than brushed route when duty cycle is high
- Application Fit
- Robotic joints, pumps, industrial axes
36/42mm BLDC gearmotor
- Rated Voltage
- 24-48V BLDC
- Ratio Range
- 3:1-512:1
- No-load RPM
- Motor speed selected from wheel or actuator target
- Rated-load RPM
- Validated on continuous load and enclosure heat path
- Continuous Output Torque
- 9.3-35 Nm reference window
- Stall Torque
- Driver protection and shaft support required
- Efficiency
- Best fit for sustained duty and battery runtime
- Application Fit
- AGV drive, mower drive, heavy automation
Sample Acceptance Plan
Turn Product Selection Into Pass/Fail Checks
Before a motor family becomes a sample order, sales engineering converts the RFQ into acceptance checks for engineering, procurement, and quality. These checks keep CAD/STEP release, prototype approval, and repeat production tied to the same specification baseline.
| Workstream | Buyer Question | Evidence to Prepare | Pass Signal |
|---|---|---|---|
| Driver and commutation | Will the BLDC motor work with the intended controller, hall logic, and startup profile? | Driver model, supply voltage, phase current limit, hall requirement, speed control mode, and wiring diagram. | Startup, speed regulation, direction, and protection behavior pass on the target controller. |
| Continuous thermal window | Can the motor run the required duty without thermal shutdown or life reduction? | Continuous load, ambient temperature, mounting heat path, duty cycle, and allowed temperature rise. | Case temperature and current settle below the approved limit during loaded endurance testing. |
| Ratio and output interface | Does the selected gear ratio keep speed, torque, backlash, and shaft load balanced? | Output RPM, torque reserve, radial load, shaft drawing, backlash target, and gearbox stage count. | Loaded RPM, output torque, and mechanical fit pass before CAD or STEP files are released. |
| Signal and EMI review | Will the motor, driver, and cable layout avoid noise problems in the final device? | Cable length, shielding plan, nearby sensors, EMC constraints, connector type, and grounding scheme. | Speed feedback, telemetry, and nearby electronics remain stable during motor operation. |
Driver and commutation
- Buyer Question
- Will the BLDC motor work with the intended controller, hall logic, and startup profile?
- Evidence to Prepare
- Driver model, supply voltage, phase current limit, hall requirement, speed control mode, and wiring diagram.
- Pass Signal
- Startup, speed regulation, direction, and protection behavior pass on the target controller.
Continuous thermal window
- Buyer Question
- Can the motor run the required duty without thermal shutdown or life reduction?
- Evidence to Prepare
- Continuous load, ambient temperature, mounting heat path, duty cycle, and allowed temperature rise.
- Pass Signal
- Case temperature and current settle below the approved limit during loaded endurance testing.
Ratio and output interface
- Buyer Question
- Does the selected gear ratio keep speed, torque, backlash, and shaft load balanced?
- Evidence to Prepare
- Output RPM, torque reserve, radial load, shaft drawing, backlash target, and gearbox stage count.
- Pass Signal
- Loaded RPM, output torque, and mechanical fit pass before CAD or STEP files are released.
Signal and EMI review
- Buyer Question
- Will the motor, driver, and cable layout avoid noise problems in the final device?
- Evidence to Prepare
- Cable length, shielding plan, nearby sensors, EMC constraints, connector type, and grounding scheme.
- Pass Signal
- Speed feedback, telemetry, and nearby electronics remain stable during motor operation.
Selection-Ready Product Data
Build the Ratio Table Before Sample Approval
Public diameter pages are only the starting point. For RFQ review, sales engineering confirms rated voltage, no-load RPM, rated-load RPM, continuous output torque, stall torque, current, efficiency, and gear ratio against your mechanism before releasing drawings or sample pricing.
| Performance Field | Buyer Input | How It Shapes the Quote |
|---|---|---|
| Rated voltage and current limit | 3V, 6V, 12V, 24V, or buyer-defined driver limit | Selects the winding, thermal margin, stall-current boundary, and battery or adapter fit. |
| No-load speed and loaded output speed | Motor RPM, target output RPM, and acceptable speed tolerance | Narrows the gear ratio and keeps the prototype inside the required actuation time. |
| Continuous output torque and stall torque | Working torque, peak load, jam condition, and stall duration | Checks gear material, shaft support, carrier strength, and safety margin before sampling. |
| Gear ratio and efficiency target | Known ratio, output RPM target, or torque-speed curve from the mechanism | Builds the ratio table used to compare speed, torque, current, efficiency, and heat rise. |
| Duty cycle and life target | On/off sequence, cycles per day, lifetime cycles, ambient temperature | Defines grease, gear stack, winding temperature, brush life, and sample validation scope. |
| Noise and backlash limit | dB limit, measurement distance, arcmin or degree target, load fixture | Separates POM, hybrid, metal, and low-backlash options before the CAD exchange. |
Rated voltage and current limit
- Buyer Input
- 3V, 6V, 12V, 24V, or buyer-defined driver limit
- How It Shapes the Quote
- Selects the winding, thermal margin, stall-current boundary, and battery or adapter fit.
No-load speed and loaded output speed
- Buyer Input
- Motor RPM, target output RPM, and acceptable speed tolerance
- How It Shapes the Quote
- Narrows the gear ratio and keeps the prototype inside the required actuation time.
Continuous output torque and stall torque
- Buyer Input
- Working torque, peak load, jam condition, and stall duration
- How It Shapes the Quote
- Checks gear material, shaft support, carrier strength, and safety margin before sampling.
Gear ratio and efficiency target
- Buyer Input
- Known ratio, output RPM target, or torque-speed curve from the mechanism
- How It Shapes the Quote
- Builds the ratio table used to compare speed, torque, current, efficiency, and heat rise.
Duty cycle and life target
- Buyer Input
- On/off sequence, cycles per day, lifetime cycles, ambient temperature
- How It Shapes the Quote
- Defines grease, gear stack, winding temperature, brush life, and sample validation scope.
Noise and backlash limit
- Buyer Input
- dB limit, measurement distance, arcmin or degree target, load fixture
- How It Shapes the Quote
- Separates POM, hybrid, metal, and low-backlash options before the CAD exchange.
Customization Options
Match the Motor to the Mechanical Boundary
The useful custom scope is normally around the shaft, gearbox stack, feedback, cable exit, connector, and buyer file package. These options should be fixed before tooling, CAD exchange, or pilot builds.
| Custom Area | Common Options | RFQ Signal |
|---|---|---|
| Output shaft and mounting | D-cut, flat, threaded, cross-drilled, keyway, custom length, flange, bearing support. | Attach shaft datum, mating part drawing, radial/axial load direction, and installation sequence. |
| Gear material and backlash | POM, MIM, machined metal, hybrid stages, grease selection, low-backlash build review. | State torque peaks, reversing frequency, noise target, temperature, and life requirement. |
| Feedback and control | Encoder, Hall signal, EMI suppression, pinout, driver match, current-limit review. | Share CPR, signal voltage, controller type, cable route, connector drawing, and EOL test needs. |
| Cable, connector, and assembly | Lead wire length, connector model, cable exit, strain relief, bracket, harness, module assembly. | Include enclosure envelope, bend radius, pull-force concern, label rules, and packing notes. |
| Compliance and buyer file | RoHS/REACH file, material note, drawing revision, sample test report, lot traceability. | Confirm destination, regulated-market expectations, incoming inspection plan, and annual volume. |
Output shaft and mounting
- Common Options
- D-cut, flat, threaded, cross-drilled, keyway, custom length, flange, bearing support.
- RFQ Signal
- Attach shaft datum, mating part drawing, radial/axial load direction, and installation sequence.
Gear material and backlash
- Common Options
- POM, MIM, machined metal, hybrid stages, grease selection, low-backlash build review.
- RFQ Signal
- State torque peaks, reversing frequency, noise target, temperature, and life requirement.
Feedback and control
- Common Options
- Encoder, Hall signal, EMI suppression, pinout, driver match, current-limit review.
- RFQ Signal
- Share CPR, signal voltage, controller type, cable route, connector drawing, and EOL test needs.
Cable, connector, and assembly
- Common Options
- Lead wire length, connector model, cable exit, strain relief, bracket, harness, module assembly.
- RFQ Signal
- Include enclosure envelope, bend radius, pull-force concern, label rules, and packing notes.
Compliance and buyer file
- Common Options
- RoHS/REACH file, material note, drawing revision, sample test report, lot traceability.
- RFQ Signal
- Confirm destination, regulated-market expectations, incoming inspection plan, and annual volume.
Evidence Pack Before Sampling
Evidence Pack to Request Before Sampling
These files are normally reviewed by request rather than downloaded instantly. Confirm the scope early so drawings, sample data, quality records, and production notes match the same motor revision.
| Evidence Item | What to Request | Why It Matters | Route |
|---|---|---|---|
| CAD / STEP baseline | Outer diameter, length, shaft geometry, flange datum, connector clearance, and mating-part constraints. | Prevents a mechanically suitable motor from failing because of envelope, shaft, or mounting mismatch. | CAD request |
| Torque-speed-current window | Rated voltage, no-load speed, rated-load speed, continuous torque, stall torque, current limit, and duty cycle. | Separates reference catalog windows from the sample value set that purchasing and engineering can approve. | RFQ template |
| Inspection and test evidence | Dimensional CTQ, gear ratio check, no-load current, load test, noise/backlash method, and final inspection record. | Lets the buyer define what must be proven before incoming inspection, pilot build, or supplier approval. | Quality review |
| Gear material and backlash route | POM, hybrid, or metal stage choice, grease condition, reversing motion, temperature, shock load, and noise target. | Aligns durability, acoustic behavior, backlash, cost, and life expectation before the sample BOM is frozen. | Material guide |
| OEM handoff package | Drawing revision, cable/connector rules, label and packing notes, destination, compliance file needs, and annual volume. | Turns a selected sample into a production-ready supplier package with fewer revision loops. | OEM workflow |
CAD / STEP baseline
- What to Request
- Outer diameter, length, shaft geometry, flange datum, connector clearance, and mating-part constraints.
- Why It Matters
- Prevents a mechanically suitable motor from failing because of envelope, shaft, or mounting mismatch.
- Route
- CAD request
Torque-speed-current window
- What to Request
- Rated voltage, no-load speed, rated-load speed, continuous torque, stall torque, current limit, and duty cycle.
- Why It Matters
- Separates reference catalog windows from the sample value set that purchasing and engineering can approve.
- Route
- RFQ template
Inspection and test evidence
- What to Request
- Dimensional CTQ, gear ratio check, no-load current, load test, noise/backlash method, and final inspection record.
- Why It Matters
- Lets the buyer define what must be proven before incoming inspection, pilot build, or supplier approval.
- Route
- Quality review
Gear material and backlash route
- What to Request
- POM, hybrid, or metal stage choice, grease condition, reversing motion, temperature, shock load, and noise target.
- Why It Matters
- Aligns durability, acoustic behavior, backlash, cost, and life expectation before the sample BOM is frozen.
- Route
- Material guide
OEM handoff package
- What to Request
- Drawing revision, cable/connector rules, label and packing notes, destination, compliance file needs, and annual volume.
- Why It Matters
- Turns a selected sample into a production-ready supplier package with fewer revision loops.
- Route
- OEM workflow
Gear Material Review
Confirm POM, Hybrid, or Metal Stages Before Prototype Approval
Use the material guide to align noise, torque density, stall load, wear, grease, and backlash expectations before the sample BOM is frozen.
CAD / STEP Request
Request Outline Drawings Before You Freeze the Mechanical Design
Share the mating envelope and target duty data so sales engineering can confirm whether an existing outline drawing, STEP/IGES file, or custom shaft and flange proposal is suitable for your project.
1
Installation envelope, mounting pattern, shaft interface, and cable exit.
2
Voltage, loaded speed, torque, gear ratio, duty cycle, noise, and backlash limits.
3
Preferred CAD format, drawing revision, prototype quantity, destination, and compliance notes.
Fields engineering checks before sharing a model
- Product fit
- Diameter, gearbox length, motor family, shaft style, flange pattern, and cable or connector exit.
- Performance target
- Voltage, loaded speed, continuous torque, peak or stall torque, ratio, duty cycle, life, noise, and backlash.
- Mechanical interface
- Mating drawing revision, installation clearance, radial or axial load, tolerance priority, and assembly sequence.
- Release package
- 2D outline, STEP/IGES envelope, custom shaft/flange review, datasheet values, and quality evidence scope.
Useful before CAD freeze
CAD files are shared by project fit and revision status. For custom shafts, flanges, cable routing, or gearbox interfaces, attach the mating drawing so the first CAD exchange uses the correct mechanical boundary.
RFQ Checklist
- Provide nominal voltage and load
- State required lifespan (hours)
- Specify driver requirements (built-in or external)
- Define speed-control signal, Hall output, and connector pinout
- Share duty profile, ambient temperature, and cooling path
- State sample quantity, reporting needs, and annual demand
Risk Controls
- Thermal shutdown: Ensure adequate heatsinking and match nominal current strictly through proper ESC programming.
- Bearing fatigue: Bearing type and grade are selected against the target life, radial load, and duty profile.
- Controller mismatch: Integrated controller options can be matched to the motor's Kv rating during integration review.
- Driver tuning hides thermal or noise problems until late testing: Controller mode, current limit, speed loop, PWM behavior, and heat path are reviewed with the load profile before sample sign-off.
Product Gallery
Buyer FAQ
Do you provide the BLDC controller?
We can provide built-in controller options for simple speed control, or integrate with your external controller.
Can you provide slotless BLDC motors?
For applications that need very low cogging torque, slotless BLDC options can be reviewed against space, cost, and control requirements.
What is the IP rating?
Standard is IP40, but we can seal the gearbox and motor housing up to IP65 for harsh environments.
What must be defined before BLDC samples are built?
Freeze the voltage range, target speed and torque, duty profile, driver type, control signal, Hall or encoder requirement, connector pinout, and thermal acceptance limits.
Related Resources
Product Qualification Review
Ready for a Product-Specific OEM Review?
Send the target size, voltage, torque, speed, ratio, quantity, drawing status, and validation concerns. Sales engineering can then confirm whether this product family is the right starting point or whether another frame, gear material, or OEM assembly route is safer.
WhatsApp: WhatsApp Engineering Support. Email: [email protected].
Inquiry Email
Include OD/length, voltage, torque, loaded speed, ratio, drawings, quantity, and destination.
Instant Chat
WhatsApp Engineering Support
Fast channel for clarifying specs, drawings, and sample timing.
