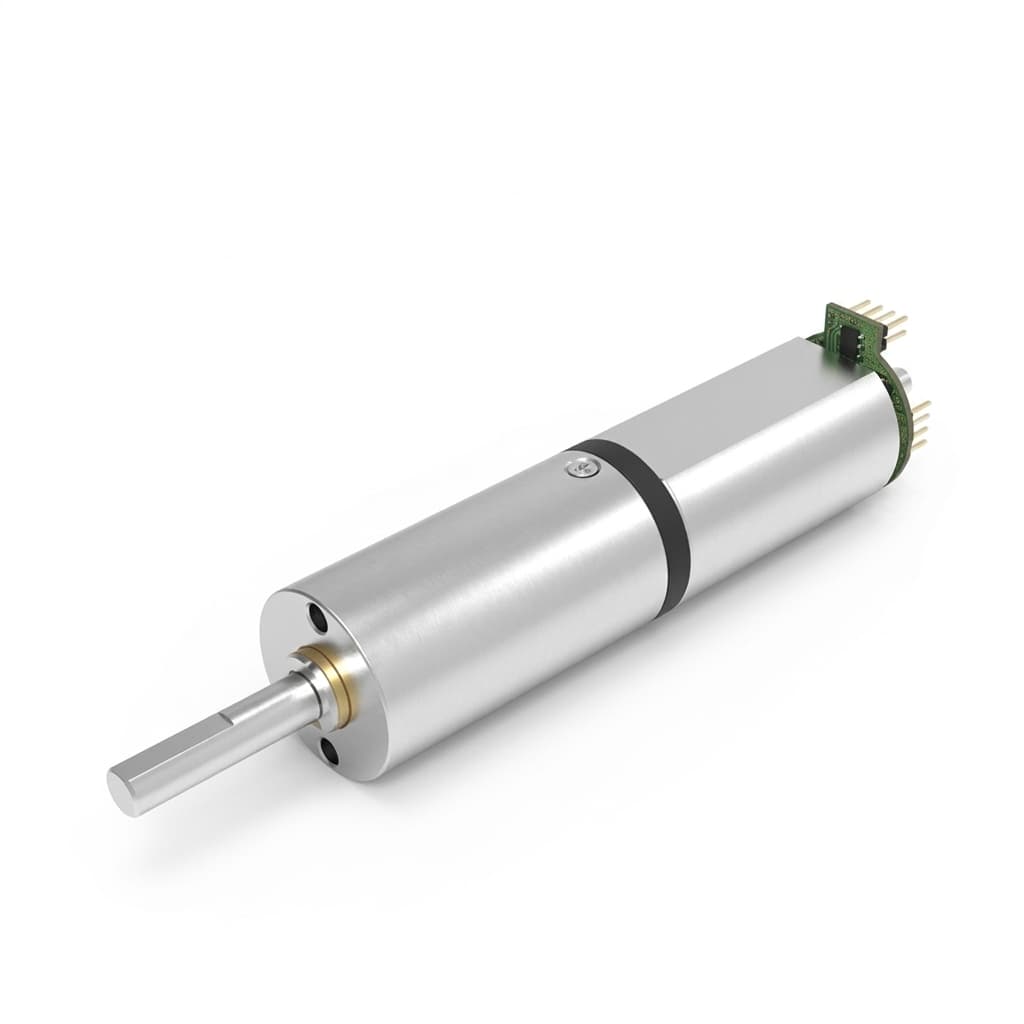

Inspection and validation support for 6mm-42mm planetary gear motors, miniature gearboxes, encoder drives, BLDC assemblies, and custom compact drive packages.
The goal is practical buyer confidence: define measurable limits, test against realistic load conditions, and keep traceable records from prototype approval through pilot build, EOL/OQC, and repeat production.
Trust Evidence Pack
Buyers in Europe and North America may want China supply-chain alternatives, but they still need engineering proof before they can approve a new factory. This evidence pack turns that concern into verifiable RFQ items.
| Buyer Expectation | Verify During RFQ | Decision It Supports |
|---|---|---|
| ISO 9001 quality management | Request the current certificate, legal entity, factory site, issuing body, process scope, and expiry date before supplier approval. | Confirms whether the audit file matches the actual motor, gearbox, assembly, and inspection process used for the program. |
| ISO 13485 / medical project expectations | Confirm the customer audit scope, material controls, cleanliness expectations, traceability, and validation files required for the device class. | Prevents a catalog motor from being treated as automatically qualified for medical equipment without program-specific approval. |
| IATF 16949 / automotive project expectations | Define APQP, PPAP, PFMEA, control-plan, dimensional report, material declaration, and change-control scope before sample approval. | Lets procurement and quality teams decide whether the document package is sufficient for an automotive-adjacent or vehicle program. |
| RoHS, REACH, and export documents | List destination country, restricted-material concerns, declaration needs, label rules, invoice, packing list, and carton/lot traceability needs. | Keeps compliance and shipment documents in the quote scope instead of discovering missing files after production. |
Tie motor choice to the real loaded output RPM, voltage window, torque point, and duty profile.
Make subjective noise or motion play measurable before buyers compare samples or approve pilots.
Keep ISO, PPAP/APQP, material declarations, and export files tied to a defined program scope.
Connect the approved sample to repeat shipments through lot records, labels, packing, and change control.
Inspection Evidence Map
These are the specific checkpoints named in the planning brief: incoming material, gear inspection, assembly, electrical test, load test, noise test, and final inspection.

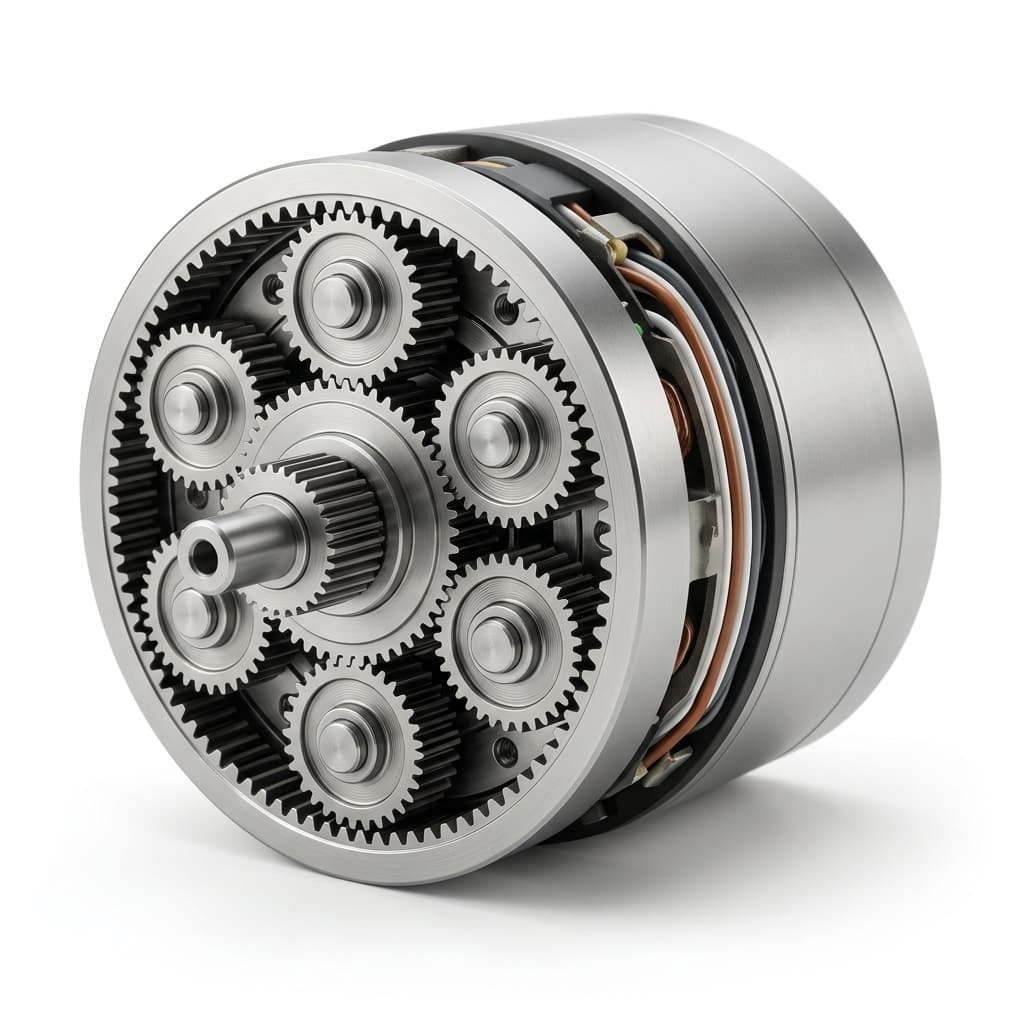

| Checkpoint | Buyer Should Request | Evidence Window |
|---|---|---|
| Incoming material review | Gear material, bearings, magnets, windings, grease, cable material, supplier lot reference, and material declarations when required. | Before sample build or pilot release |
| Gear inspection and gearbox assembly | Gear mesh, carrier fit, shaft runout, lubrication amount, axial play, backlash-sensitive fit, and controlled assembly notes. | Engineering sample and pilot build |
| Electrical and load test | Direction, no-load speed/current, loaded speed, representative torque point, voltage condition, thermal rise, and wiring check. | Sample validation and EOL setup |
| Noise, backlash, and life validation | Measurement distance, mounting method, load state, backlash fixture, duty cycle, wear indicators, and failure definition. | Before pilot production |
| Final OQC and export pack | Batch record, lot label, outgoing inspection summary, packing standard, drawing revision, and destination document set. | Before shipment |
Buyer Audit Pack
This gives engineering, procurement, and quality teams a shared checklist before a new supplier replaces a Maxon/Faulhaber-style incumbent or moves into annual-volume supply.
| Gate | Buyer Question | Evidence to Align |
|---|---|---|
| Before sample PO | Can the platform meet envelope, loaded torque-speed, duty cycle, interface, and compliance assumptions? | Configuration recommendation, RFQ data-gap list, drawing baseline, material option, and sample validation plan. |
| Before pilot build | Do engineering samples meet measurable limits under the agreed voltage, load, fixture, and duty profile? | Sample test summary, dimensional inspection notes, fit comments, CTQ list, and first EOL limit proposal. |
| Before repeat production | Can the process repeat the approved sample without uncontrolled material, fixture, test, packing, or label changes? | Pilot inspection record, EOL/OQC criteria, change-control rule, PPAP/APQP/PFMEA scope when required, and packing standard. |
| Before shipment | Are the lot records, outgoing checks, compliance files, labels, and export documents ready for the destination market? | OQC summary, lot label, invoice, packing list, RoHS/REACH or material declarations, and agreed export document set. |
Supplier Approval Dossier
REQUIREMENTS frames the main trust gap clearly: overseas OEM teams are interested in China supply alternatives, but they need evidence that engineering, procurement, SQE, and compliance can approve. This matrix makes the quality page work as that shared approval file.
| Reviewer | Approval Question | Evidence to Prepare | Decision Output |
|---|---|---|---|
| Engineering | Does the sample match the real envelope, torque-speed point, duty cycle, interface, harness, and control assumptions? | Drawing revision, STEP reference, load condition, torque-speed report, thermal notes, fit comments, and deviation list. | Approved configuration baseline, CTQ list, and sample acceptance notes. |
| Supplier Quality / SQE | Can the factory repeat the approved sample without uncontrolled material, fixture, assembly, inspection, or test-limit changes? | Incoming material controls, gear inspection notes, assembly checkpoints, EOL limits, pilot record, and change-control rule. | Pilot release, PPAP-lite or APQP scope, and repeat-production control plan. |
| Procurement | Is the supplier file complete enough to support sample PO, pilot PO, annual-volume quote, lead-time review, and second-source approval? | Certificate scope, supplier questionnaire, MOQ/lead time, sample/pilot quantity, commercial assumptions, and approved packing standard. | Qualified supplier decision, sourcing risk note, and commercial launch checklist. |
| Compliance / Logistics | Will the shipment and document package satisfy the destination market and customer audit expectations? | RoHS, REACH, material declaration, lot label, invoice, packing list, export document set, and carton traceability rule. | Shipment document approval and destination-market release condition. |
Sample-to-OQC Control Loop
This closes the common buyer concern that a sample works once, but production drifts after the program moves into repeat shipments.
| Loop Area | Control to Freeze | Change Trigger |
|---|---|---|
| Approved sample baseline | Drawing revision, gearbox ratio, motor winding, gear material, grease, shaft/flange interface, cable exit, connector, and label rule. | Any dimensional, BOM, grease, supplier-lot, wiring, label, or packing change that can affect buyer fit or validation results. |
| Critical-to-quality controls | Loaded RPM, current window, torque margin, noise limit, backlash/output play, duty cycle, life-test assumptions, and key dimensions. | New application load, tighter noise limit, lower backlash target, higher ambient temperature, or different controller current limit. |
| EOL and OQC evidence | End-of-line speed/current checks, representative loaded check when scoped, visual inspection, outgoing sampling rule, and batch record. | Pilot drift, field complaint, elevated current, speed deviation, acoustic drift, backlash growth, or missed packing/label requirement. |
| Corrective-action feedback | Failure definition, teardown scope, 8D expectation when requested, affected-lot traceability, re-test method, and release authority. | Premature gearbox wear, micro-pitting, gear tooth damage, winding issue, connector defect, or repeat OQC escape. |
Test Escalation Triggers
These triggers help buyers decide when to move from basic sample testing to a broader NPI, reliability, or audited-program evidence package.
| Trigger | Why Escalate | Added Test Scope |
|---|---|---|
| Premium-brand replacement or second-source approval | The buyer may compare against an incumbent Maxon/Faulhaber-style drive with mature fit, acoustic, and reliability history. | Side-by-side torque-speed, fit, noise, backlash, current, thermal, and application-risk review before pilot. |
| Low-noise, low-backlash, or positioning application | Small fixture, load, reversal, or mounting differences can change perceived noise and motion play. | Defined acoustic setup, backlash method, mounting state, reversal load, encoder/Hall signal review, and pass/fail criteria. |
| High duty cycle, shock, jam, or elevated ambient | Catalog life claims can hide thermal rise, grease behavior, gear wear, and current drift under real load. | Duty-cycle test plan, interim current/speed/noise trend checks, thermal observation, wear indicators, and teardown notes. |
| Medical, automotive-adjacent, or audited program | The approval risk is not only performance. The buyer also needs process evidence, traceability, and documented change control. | Certificate scope review, PFMEA/control-plan expectation, PPAP/APQP document list, material declarations, and lot traceability. |
Sample Approval Report Template
This is the buyer-facing checklist that should sit between a first quote and a sample PO. It tells engineering, procurement, and quality teams which files to request early so approval does not depend on informal email notes after pilot production.
| Package Area | Request During RFQ | Sample / Pilot Evidence | Buyer Decision |
|---|---|---|---|
| Supplier approval file | Current certificate, legal entity, factory address, process scope, expiry date, audit contact, and any customer-specific supplier questionnaire. | Certificate review record, supplier file checklist, and the program scope that the certificate does or does not cover. | Prevents procurement from assuming a generic certificate automatically qualifies a specific motor assembly or destination market. |
| Drawing and dimensional evidence | 2D drawing, STEP/IGES reference, shaft/flange datum, cable exit, connector, revision control rule, and critical-to-quality dimensions. | Dimensional inspection notes, fit comments, drawing revision baseline, and any agreed deviation list before pilot release. | Keeps the approved sample tied to the enclosure, fixture, and harness constraints that decide real assembly fit. |
| Performance test report | Voltage window, no-load speed/current, loaded RPM, torque point, stall or peak limit, duty profile, fixture, and controller current limit. | Sample test summary with measured voltage, current, speed, load condition, thermal observations, and acceptance comments. | Lets engineering approve the motor against real operating conditions instead of catalog values alone. |
| Noise, backlash, and motion evidence | Noise limit, measurement distance, mounting method, load state, backlash method, reversal behavior, and positioning tolerance. | Acoustic notes, backlash/output-play record, mounting assumption, and pass/fail comments under agreed conditions. | Reduces subjective sample disputes in medical, smart lock, optical, robotics, and indoor automation equipment. |
| Reliability and life-test plan | Cycle count, on/off timing, ambient range, load profile, shock or jam events, expected failure definition, and interim inspection points. | Life-test plan, wear indicators, current/speed drift checks, noise trend notes, grease condition, and teardown findings when scoped. | Connects prototype approval to repeat-production reliability instead of relying on an unsupported lifetime claim. |
| OQC and shipment pack | Outgoing inspection limits, lot label rule, packing standard, RoHS/REACH or material declaration needs, invoice, packing list, and export document set. | Batch record, OQC summary, label/packing sample, compliance file list, and change-control rule for repeat shipments. | Makes shipment readiness reviewable before production leaves the factory. |
Buyers can paste this structure into the first engineering thread when supplier approval, medical-adjacent review, automotive-style review, or export documentation will affect sample approval.
Quality evidence RFQ scope: - Application / device module: - Design stage: - Approval stakeholders: Engineering / SQE / Procurement / Compliance - Product family / diameter candidate: - Drawing revision / STEP / fixture status: - Side-by-side incumbent or premium-brand baseline: - Loaded RPM / torque / voltage / duty cycle: - CTQ dimensions / functional limits: - Noise / backlash / life-test limits: - Required certificate scope: ISO 9001 / ISO 13485 / IATF 16949 / other - PPAP / APQP / PFMEA / control-plan need: - Sample approval report / supplier file need: - OQC / sample test report expectation: - Change notice / repeat-production traceability need: - RoHS / REACH / material / export document need: - Sample quantity / pilot quantity / annual volume: - Destination country and shipment documentation: - Preferred response channel:
| Approval Risk | Why It Matters | RFQ Control |
|---|---|---|
| Certificate is reviewed too late | A certificate may not cover the actual factory site, process scope, legal entity, or destination-market expectation. | Ask for certificate scope, expiry, entity, factory address, and program relevance during RFQ. |
| Test report omits load condition | No-load speed and current do not prove torque margin, thermal behavior, gear stress, or duty-cycle suitability. | Define voltage, loaded RPM, torque point, duty cycle, fixture, ambient condition, and controller current limit. |
| Noise or backlash is subjective | Different mounting fixtures, distances, loads, and reversal methods can make two samples appear inconsistent. | Write the acoustic setup, backlash method, pass/fail limit, and application failure mode into the sample plan. |
| Drawing revision drifts after sample | A small shaft, flange, cable-exit, connector, or packing change can break the buyer fixture even when the motor still runs. | Freeze drawing revision, CTQ dimensions, deviation approval, packing standard, and change-notice expectation before pilot. |
| PPAP/APQP scope is added after pilot | Late process-document requests can delay approval because fixture notes, PFMEA assumptions, control plans, and sample records were not captured. | State PPAP, APQP, PFMEA, control-plan, dimensional report, and sample-size expectations before sample approval. |
These controls translate the market requirement into a practical buyer workflow: feasibility, DFM, sample validation, pilot process validation, and controlled repeat supply.
| Gate | Control Point | Buyer Evidence |
|---|---|---|
| Requirement and Feasibility | Translate size, voltage, output speed, torque, duty cycle, noise, backlash, and environment into motor, ratio, gear material, and feedback candidates. | RFQ clarification list, configuration recommendation, risk questions, and drawing revision baseline. |
| DFM / DFMEA Review | Review shaft, flange, cable exit, connector, sealing, load direction, gear material, grease, and assembly constraints before prototype release. | Interface notes, inspection datum list, material option review, and failure-mode assumptions. |
| Engineering Sample Validation | Measure speed, current, loaded behavior, temperature rise, noise, backlash, stall response, and feedback signal using agreed conditions. | Sample test summary, inspection notes, fixture assumptions, voltage/load condition, and acceptance comments. |
| Pilot Production and Process Validation | Convert critical-to-quality items into assembly checkpoints, EOL limits, fixture notes, packing rules, and change-control expectations. | Pilot inspection record, PFMEA/APQP-style risk list, PPAP scope when requested, and outgoing quality criteria. |
| Repeat Production and OQC | Keep revision, BOM, material, grease, wire, connector, label, packing, test limits, and lot traceability tied to the approved sample. | Program-defined EOL record, OQC summary, lot label, change notice, and export document package. |
| Stage | What Is Checked | Typical Evidence |
|---|---|---|
| Incoming Parts | Gear blanks, shafts, bearings, magnets, windings, grease, and cable materials | Material lot references, dimensional checks, and supplier document review |
| Gearbox Build | Gear mesh, carrier assembly, shaft runout, lubrication amount, and backlash-sensitive fit | Assembly checkpoint records and controlled work instructions |
| Motor Matching | Voltage, winding, no-load speed, current, encoder or Hall output, and harness pinout | Sample test data and approved electrical interface baseline |
| End-of-Line Test | No-load current, speed consistency, loaded output behavior, acoustic noise, and visual inspection | Batch records, test limits, and outgoing inspection summary by program scope |
| Requirement | Buyer Input | Validation Direction |
|---|---|---|
| Torque and Speed | Required torque, stall torque, loaded RPM, gear ratio, and voltage window | Torque-speed check against representative load or buyer-supplied fixture |
| Noise and Backlash | Noise limit, measurement distance, backlash target, and acceptance method | Acoustic check and output play inspection against agreed sample criteria |
| Life and Duty Cycle | Cycle count, on/off profile, load profile, temperature range, and failure definition | Life-test plan with interim checks for current, speed, noise, and mechanical wear |
| Interface Fit | 2D drawing, shaft detail, flange, cable exit, connector, and revision control | Dimensional inspection and fit confirmation before production freeze |
| Evidence | How It Should Be Checked | Buyer Decision It Supports |
|---|---|---|
| Torque-speed / load behavior | Run selected voltage, ratio, and load points against representative fixture or buyer load curve. | Confirms whether the selected motor and gearbox have enough margin before pilot approval. |
| No-load current and speed | Check direction, no-load RPM, current window, continuity, and wiring condition during sample and EOL setup. | Catches winding, assembly, lubrication, or friction drift that may not appear in visual inspection. |
| Noise and vibration | Define measurement distance, voltage, mounting method, load state, and pass/fail limit before comparing samples. | Prevents subjective acoustic disputes in medical, smart lock, optical, and indoor automation devices. |
| Backlash and output play | Measure output play or reversal behavior with the agreed torque/load condition and fixture assumption. | Protects positioning, indexing, optical focus, robotic joint, and encoder-controlled actuator performance. |
| Thermal rise and duty cycle | Run the real on/off profile, ambient condition, enclosure assumptions, and controller current limit. | Separates safe intermittent operation from overheating risk in enclosed OEM equipment. |
| Life-test and wear indicators | Track cycle count, load, temperature, noise, current, speed drift, grease condition, and gear wear checkpoints. | Connects prototype confidence to repeat-production reliability instead of relying on a catalog life claim. |
Documents & Traceability
Current certificates, customer audit files, and process documents should be requested and verified during RFQ when ISO, medical, or automotive expectations apply.
RoHS, REACH, material declarations, grease notes, and export packing documents can be scoped before shipment.
Control plan, PFMEA, inspection fixture notes, dimensional checks, and sample approval records can be aligned for higher-risk OEM programs.
Approved drawing revision, BOM, lot label, packing standard, outgoing inspection summary, and change-notice process should stay tied to the signed-off sample.
Ask for measured speed, current, torque or load condition, noise observations, drawing revision, and any project-specific inspection notes tied to the sample batch.
Yes. Share the duty cycle, load profile, noise limit, backlash target, and fixture assumptions before sample build so the test plan can be aligned early.
RoHS, REACH, material declarations, packing documents, and customer-specific files can be scoped during RFQ and confirmed before shipment.
For programs that need process validation, the document scope should be defined during RFQ. Typical inputs include CTQ items, sample size, inspection method, control plan needs, pilot quantity, and pass/fail limits.
No. Certification and compliance scope is program-specific. Buyers should request current certificates, material declarations, validation evidence, and approval documents that match the intended application and destination market.
